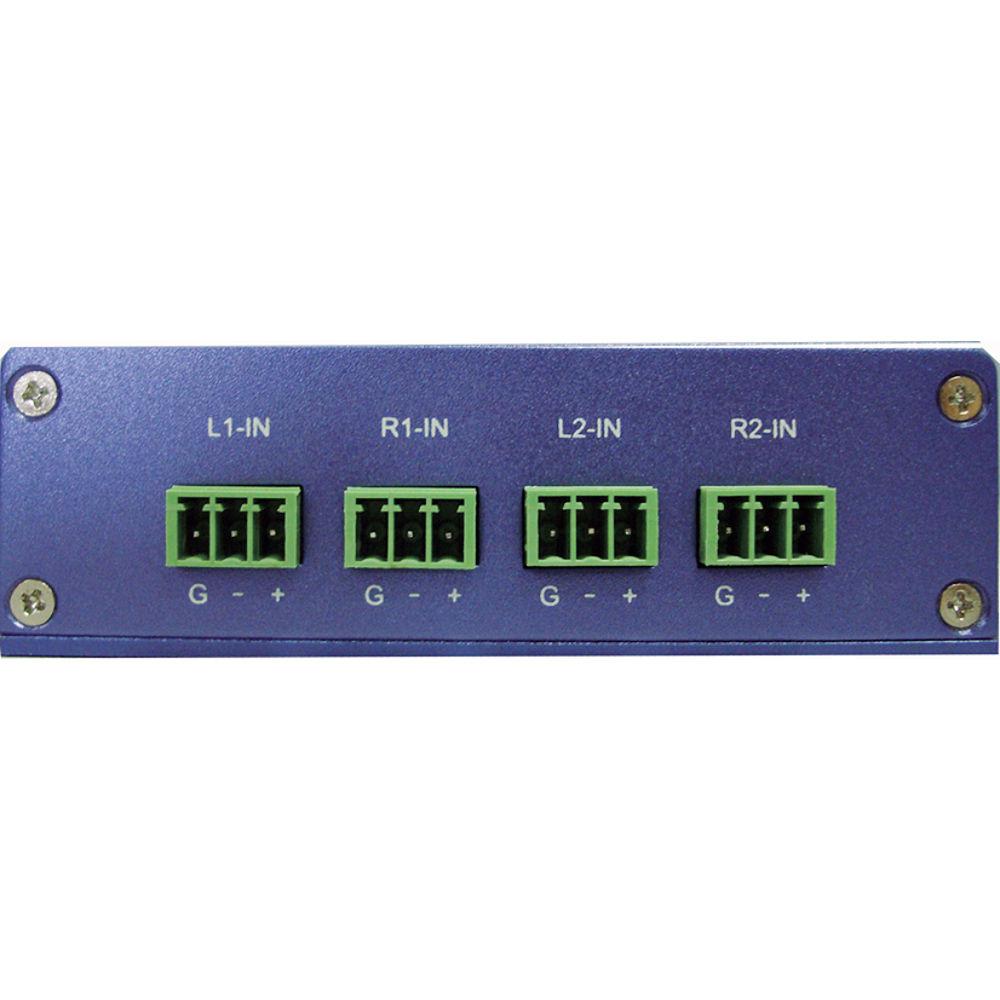

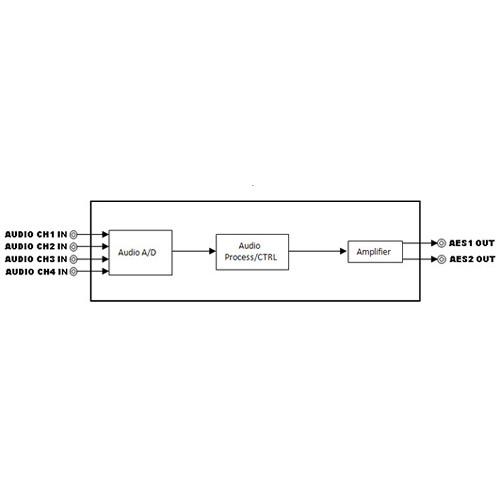

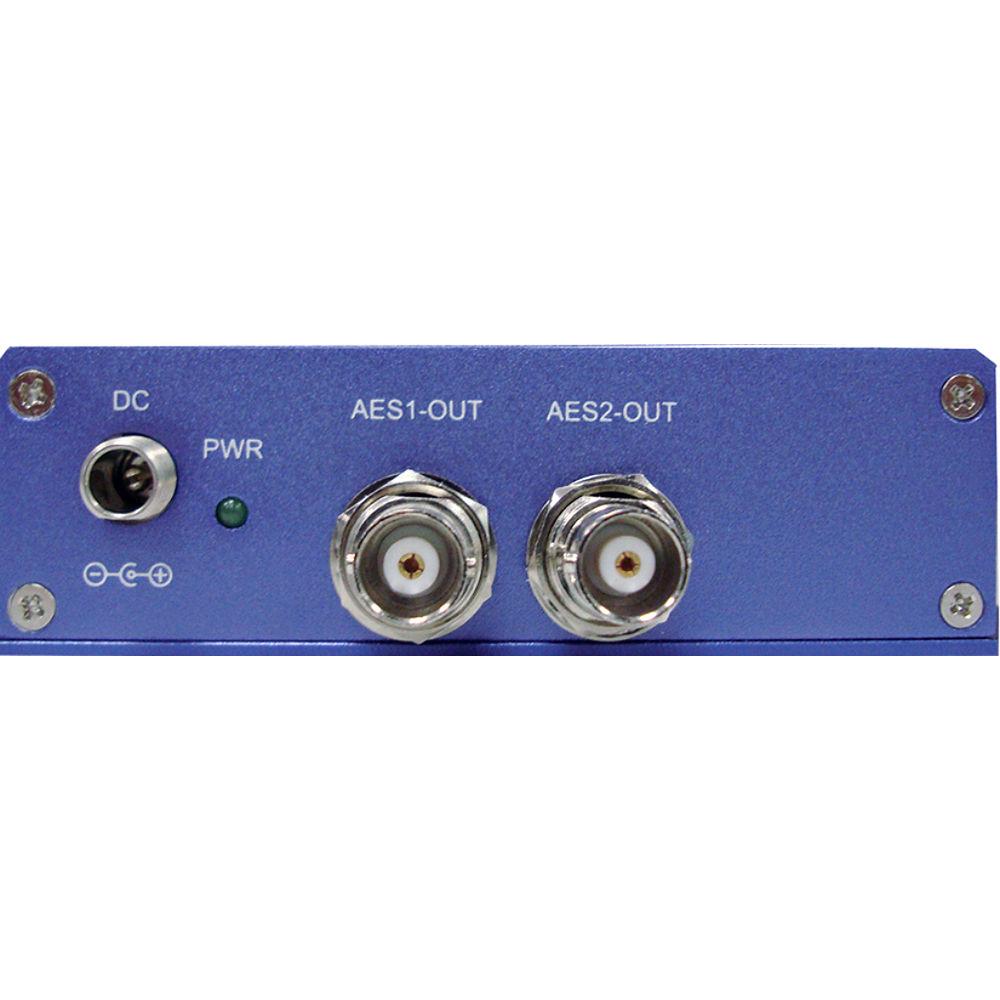

Product description The Gra-Vue MIO AD-AUD Analog Audio to AES Converter switches 2 analog audio stereo signals to 2 AES audio outputs. This converter provides a variety of full scale standards for analog audio (+18dBu / +20dBu / +22dBu / +24dBu). Moreover, the analog audio adopts a balanced mode, while the digital audio adopts the BNC interface with an unbalanced mode.Based on the Mini BOX platform, this converter adopts 24-bit processing to ensure good quality of audio signal after the conversion. The left and right channel can be flexibly combined via a DIP switcher to form 1 AES signal. The LED lights on the Mini box indicate the states of source signal and power. Being compact in size, this converter is used in a variety of environments like TV program post production, studio, broadcast, and more. - Supports 2 analog audio stereo signals input and 2 AES audio signals output
- Effectively converts 4-channel balanced analog audio to 2 group digital audio
- Adopts the BNC interface (unbalanced mode) for outputs and 3-pin interface (balanced mode) for inputs
- Flexibly combines the left and right channel via a DIP switcher to form 1 AES signal
- 2 channels of AES flexibly to form
- Provides a variety of full scale standards (+18dBu / +20dBu / +22dBu / +24dBu)
- LED lights on the Mini box indicates the status of source signal and power supply (Denoted by the shining or extinguishing red and green LEDs)
- Mini box structure can be easily installed inside the frame racks, video walls, and more
- Adopts 3-pin for audio interface
- Broadcast quality with 24-bit processing and 48 kHz audio sampling
- Based on the Mini BOX platform
- Widely used in broadcasting systems, fields of studio, and other professional fields
In the Box Gra-Vue MIO AD-AUD Analog Audio to AES Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) axsztcwrrabzusewytzrfctyzzsybqwssc Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO AD-AUD Analog Audio to AES Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO AD-AUD Specs | | | Input Signal | 2 x analog stereo | | Interface | 3-pin, balanced | | Impedance | 600 Ω | | Frequency Response | 20 Hz to 20 KHz < ±0.25 dB | | Maximum Level | +24 dBu | | | | Output Signal | 2 x AES | | Interface | BNC, 3-pin connector (Balanced) | | Impedance | 75 Ω | | Standard | AES3 (SMPTE 276M) | | Maximum Level | 0 dBFS | | | | Power | 12 VDC, 1 A | | Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) | | | | Package Weight | 1.31 lb | | Box Dimensions (LxWxH) | 11.0 x 6.85 x 3.2" |
