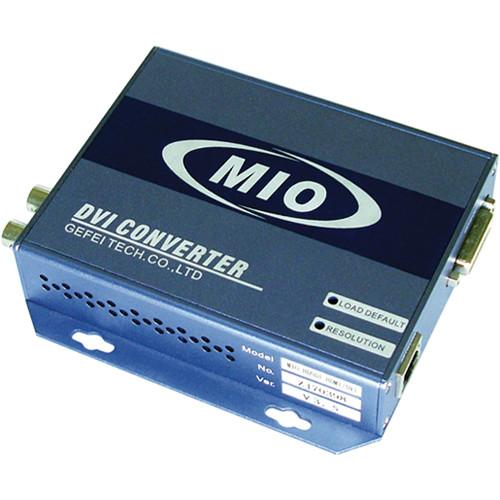

User Manual for Gra-Vue MIO AV-AVIEWER Composite Audio Video to DVI HDMI Video Scaling Converter with Video & Audio Monitoring Click to enlarge the picture
Contents of the user manual for the Gra-Vue MIO AV-AVIEWER Composite Audio Video
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue MIO AV-AVIEWER Composite Audio Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue MIO AV-AVIEWER Composite Audio/Video to DVI/HDMI Video Scaling Converter features a video and audio quality assurance watch dog function that provides real-time video/audio probing and alarm. The mini scaling converter supports automatic video input format detection and supports composite video in both PAL and NTSC format.The MIO AV-AVIEWER also provides overlay for marker, waveform analyzer, AFD, dynamic UMD, Tally, and an 8-channel audio VU meter. It has an option for selecting stereo audio output. The built-in Web server allows you to easily remote control the unit via a Web browser. The unit fully supports SNMP protocols for remote monitoring.This video scaling converter can be a key component in video/audio monitoring and display systems. It is suitable for many broadcasting and professional A/V monitoring applications such as control rooms, mobile trucks, production, post-production, and playout. It is also suitable for use in schools, houses of worship, and community TV stations. - One analog composite video and 2-channel stereo audio input
- DVI/HDMI output up to 1920 x 1080p
- PAL/NTSC auto switching input
- Video/audio real-time probing
- Alarm for video/audio lost, frozen, black video, audio overload, EDH error
- Real-time video waveform analyzer
- Programmable bi-color UMD
- Eight-channel audio VU meter
- Built-in Web server supports SNMP & Tally protocol
- Selectable 4:3, 16:9, & full screen display mode
- Option for stereo audio output
- CEA timing standards compliant
In the Box Gra-Vue MIO AV-AVIEWER Composite Audio/Video to DVI/HDMI Video Scaling Converter with Video & Audio Monitoring Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO AV-AVIEWER Composite Audio Video to DVI HDMI Video Scaling Converter with Video & Audio Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO AV-AVIEWER Specs | Video Input | 1 x BNC, 75 Ω, Composite Video (CVBS) | | Input Format | PAL, NTSC | | Video Output | 1 x DVI-I female, supports HDMI protocol | | Output Resolution | 1024x768x60p, 1280x720x50p/60p 1280x768x60p, 1280x800x60p 1280x1024x60p, 1360x768x60p 1400x1050x60p, 1600x900x60p 1680x1050x60p, 1920x1080x50i/60i 1920x1080x50p/60p, Auto HDMI | | Control | RJ-45 Ethernet for built-in Web server, TSL SMNP protocol | | LED | Power status and input signal locking | | Power | 12 VDC, 1 A | | Working Temperature | 41 to 77°F (5 to 25°C) | | Storage Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 4.8 x 3.6 x 1.1" (124.0 x 92.0 x 30.0 mm) | | Weight | 11.5 oz (326.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.0 x 6.7 x 3.2" |
