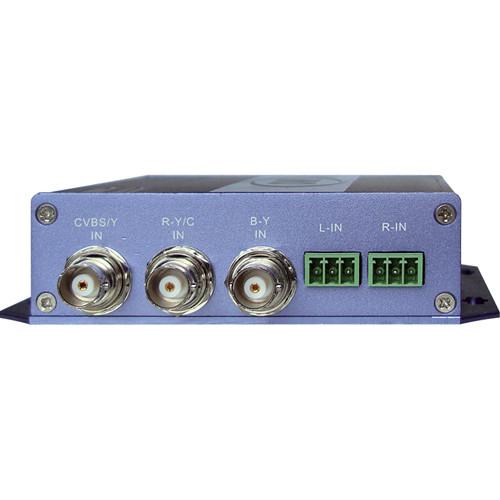

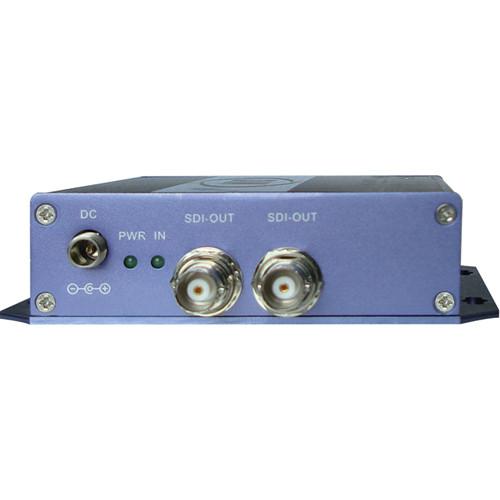

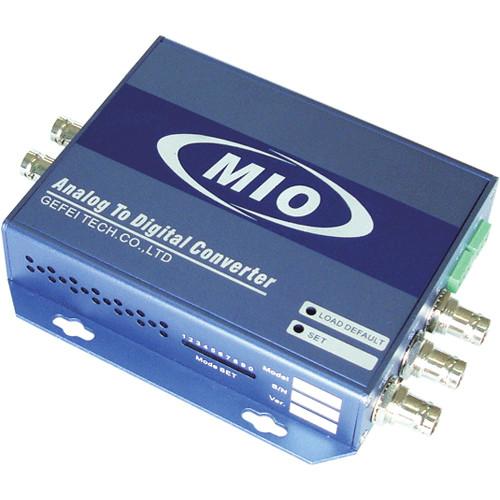

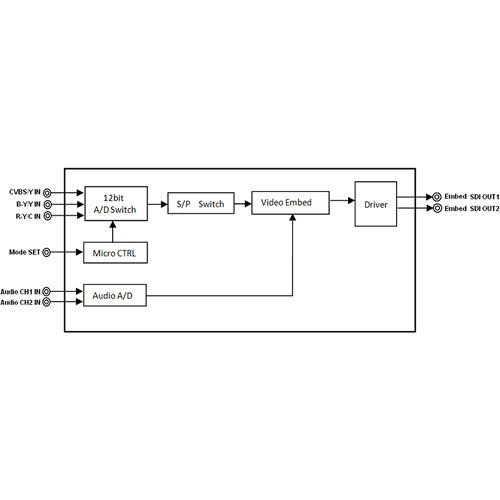

Product description The Gra-Vue MIO DEC-AUD Analog Video & Audio to SDI Mini Converter switches 1 channel of analog video (CVBS / YUV / YC) to 2 identical SDI video channels, while embedding 1 analog stereo audio signal into each serial digital signal. This compact, good-quality converter supports both NTSC and PAL input signals. Additionally, it supports SDI video output signal in both the 525i 60 and 625i 50 formats. The LED lights on the Mini box indicate the status of input signal and power. This converter is widely used in a variety of applications like TV program post production, studio, broadcast, and more. - Converts analog video (CVBS / YUV / YC) to SDI video

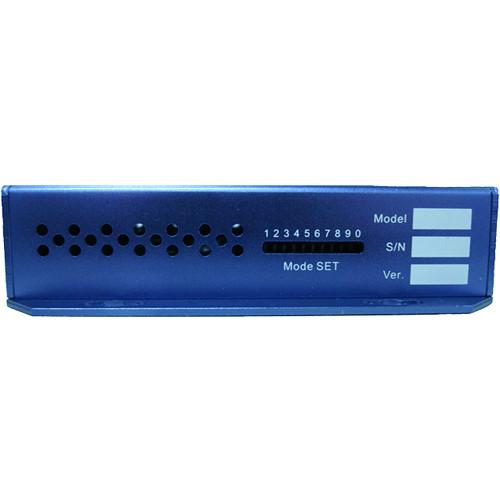

- Selects the analog input (CVBS / YUV / YC) by a DIP Switch
- Adopts 3-pin interface as an audio interface
- Broadcast quality with 10-bit processing and 48 kHz audio sampling
- LED lights indicate the status of input signal and the power (Denoted by a shining or extinguishing green LED)
- Supports 525i 60 and 625i 50 formats
- Based on the Mini BOX platform
In the Box Gra-Vue MIO DEC-AUD Analog Video & Audio to SDI Mini Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) vavtsas Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO DEC-AUD Analog Video & Audio to SDI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO DEC-AUD Specs | | | Interface | Input: 3 x BNC connection (Selectable CVBS / YUV / YC input model) | | System | PAL / NTSC | | Impedance | 75 Ω | | Maximum Cable Length | 656.17' (200.00 m) (Belden 8281) | | | | Interface | Input: 2 x 3-pin (Balanced) | | Impedance | 600 Ω | | | | Output Interface | 2 x SDI, BNC connection | | Format | SMPTE 259M-C, 270 Mb/s 525i 60 / 625i 50 | | Impedance | 75 Ω | | Signal Level | 800 mV ± 10% | | Rise Time | 750 to 1500 PS 20 to 80% | | Fall Time | 750 to 1500 PS 20 to 80% | | Difference Between Rise & Fall | ≤ 500 PS | | Jitter | <0.2 UI | | | | Power Consumption | 12 VDC, 1 A | | Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.0 x 6.7 x 3.1" |
