Product description The MIO EMB-HDSDI Dual AES Audio Embedder from Gra-Vue is designed to embed one analog audio stereo signal into a single serial digital video signal. The unit features two balanced 3-pin Phoenix AES audio inputs and two BNC digital video outputs. It supports SD-SDI, 1.5 Gbps HD-SDI and 3.0 Gbps HD-SDI for both input and output. Digital video signals with embedded or non-embedded audio can be used as input signals.
The embedder features two LEDs that indicate the status of source signal and power, and is powered by a 12V power supply. The embedded audio channel can be selected with a DIP Switch. - One analog audio stereo signal embedded into a single serial digital video signal
- Input and output formats include: SD-SDI, 1.5Gb/s HD-SDI and 3.0Gb/s HD-SDI

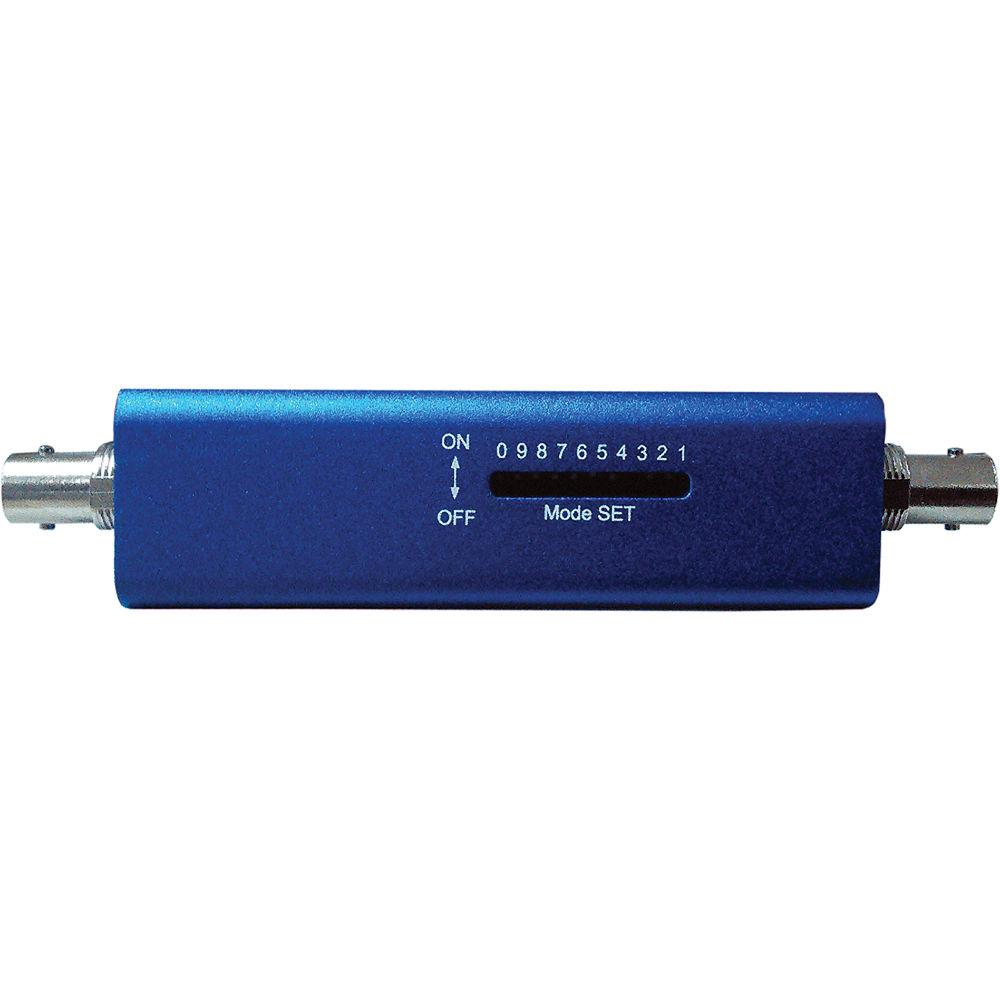

- Embedded audio channel can be selected with a DIP Switch

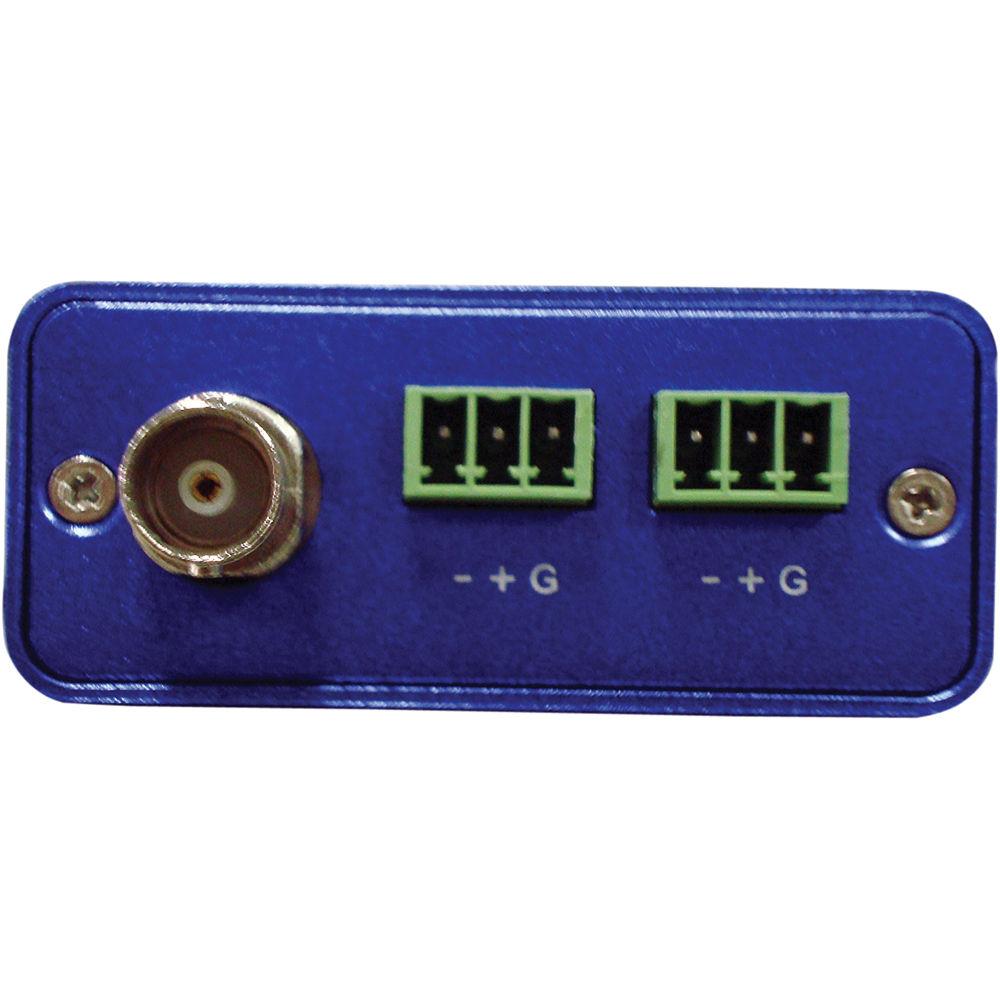

- Balanced audio input features a 3-PIN Phoenix connector

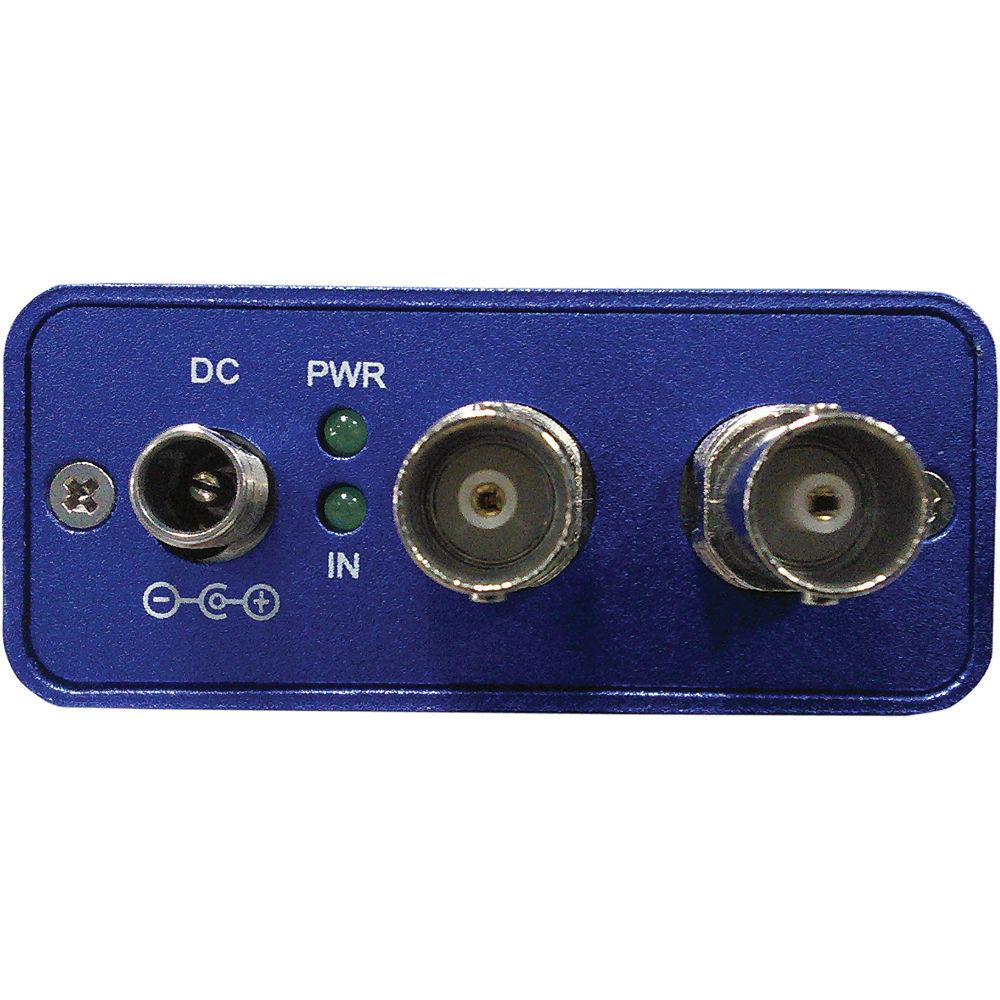

- Features two LED indicators for signal status and power
- Supports bypass function with power on
- Can be used in broadcasting systems, studios, and other professional audio fields
In the Box Gra-Vue MIO EMB-HDSDI Dual AES Audio Embedder MIO POWER-12V1A-NA Power Adapter (U.S.A) rddaxfdsfawaztuwzuuuwrctydxsfc Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO EMB-HDSDI Dual AES Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO EMB-HDSDI_AES Specs | Digital Video | 1 x BNC, 3G/HS/SD-SDI input
1 x BNC, 3G/HS/SD-SDI loop through
2 x BNC, 3G/HS/SD-SDI embedded output | | Resolution | SD:
525i 60, 625i 50
HD:
720p 50/60, 1080p 50/60, 1080p 24/25/30 | | Video Impedance | 75 Ω | | Output Level | 800 mV ±10% | | Jitter | < 0.2 UI 100 kHz | | Audio Input | 1 x 3-pin Phoenix, balanced Left
1 x 3-pin Phoenix, balanced Right | | Audio Impedance | 600 Ω | | Indicators | 1 x LED green, input signal
1 x LED green, power | | Power | 12 VDC | | Amperage | 1 A | | Dimensions (L x W x H) | 4.84 x 3.62 x 1.14" (12.30 x 9.20 x 2.90 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.0 x 5.0 x 3.0" |
