User Manual for Gra-Vue MIO ENC-AUD EMBSDI to Analog Video & Dual Analog Audio Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue MIO ENC-AUD EMBSDI to Analog
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
 |
User manual for the Gra-Vue MIO ENC-AUD EMBSDI to Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

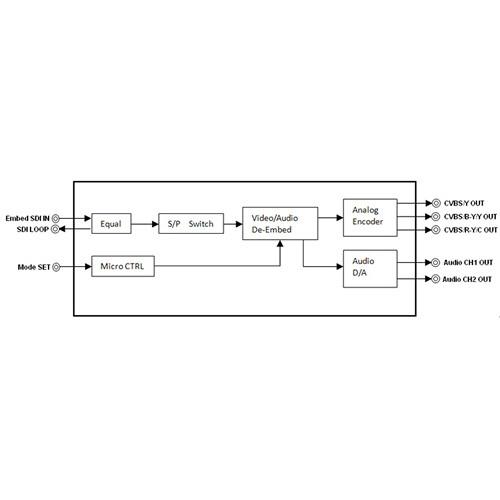

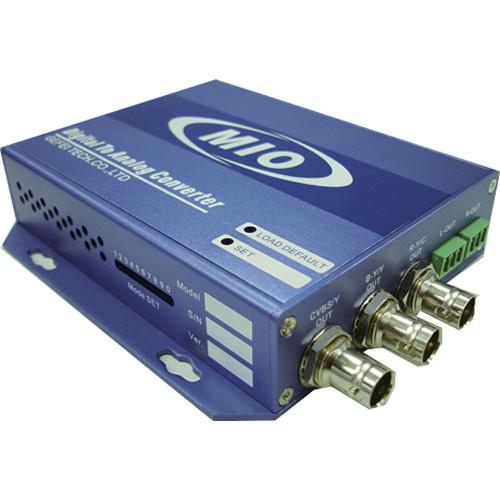

Product description The Gra-Vue MIO ENC-AUD EMBSDI to Analog Video & Dual Analog Audio Converter supports NTSC / PAL output signal and lets you select the analog video output as the output mode of CVBS, YUV, or YC (optionally via DIP switch). This converter offers auto-sensing input format of 525i 60 / 625i 50. The LED lights indicate the status of source signal and power. The converter offers SDI-Loop output, which makes it suitable for other applications like TV program post production, studio, broadcast, and more. - Converts SDI to analog video and 2 channel analog audio effectively, CVBS / YUV / YC are optionally available
- Lets you select the mode of analog video output (CVBS / YUV / YC) freely via a DIP switch
- Supports NTSC / PAL output
- Broadcast quality with 10-bit processing

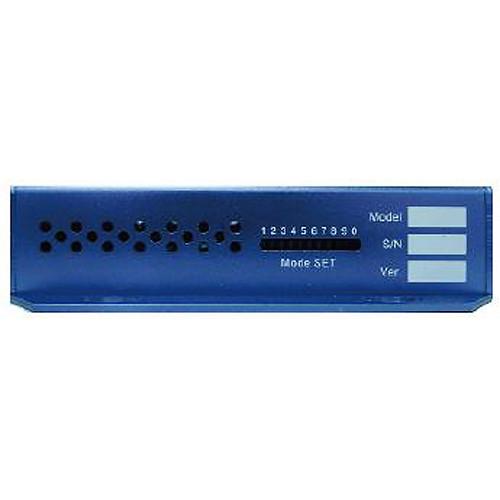

- Supports self-defined, de-embedded audio channel via a DIP switch

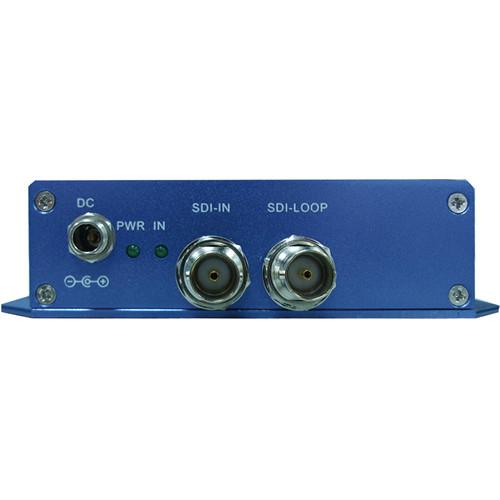

- LED lights indicate the status of input signal and the power (Denoted by a shining or extinguishing green LED)
- Based on the Mini BOX platform
In the Box Gra-Vue MIO ENC-AUD EMBSDI to Analog Video & Dual Analog Audio Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO ENC-AUD EMBSDI to Analog Video & Dual Analog Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

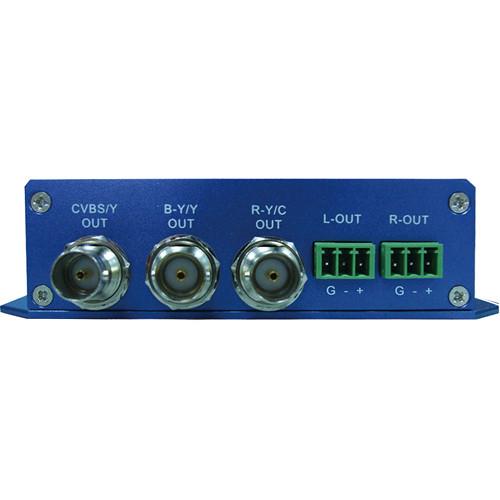

Technical parametersGra-Vue MIO ENC-AUD Specs | | | Interface | Input: 1 x SDI, BNC connection 75 Ω
Output: 1 x SDI-loop, BNC connection 75 Ω | | Format | SMPTE 259 M-C, 270 Mb/s | | Eye Pattern Characteristics | 800 mV ± 10% | | Rise Time | 750 to 1500 PS 20 to 80% | | Fall Time | 750 to 1500 PS 20 to 80% | | Difference Between Rise & Fall | ≤ 500 PS | | Jitter | <0.2 UI | | | | Output Interface | 2 x 3-pin (Balanced) | | Impedance | 600 Ω | | | | Output Interface | 3 x BNC connection (Can be set as CVBS / YUV / YC output mode) | | Impedance | 75 Ω | | | | Power Consumption | 12 VDC, 1 A | | Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
