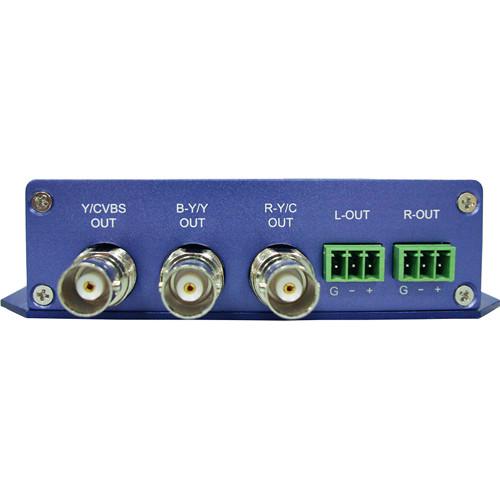

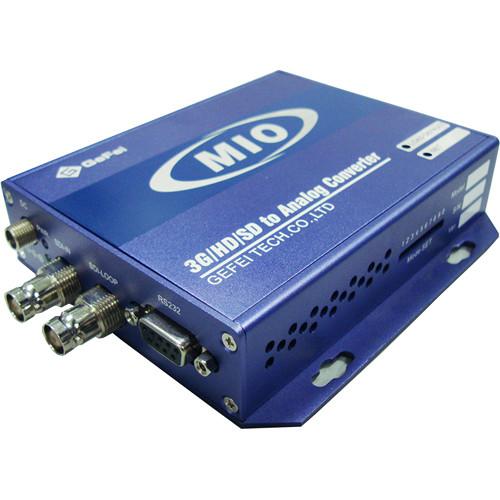

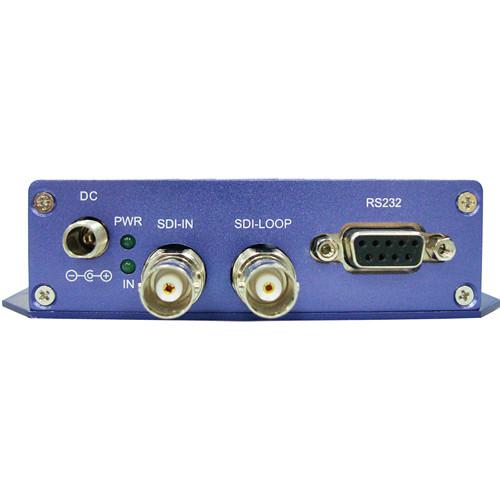

Product description Based on the Mini BOX platform, the Gra-Vue MIO ENC-HD-AUD 3G/HD/SD to Analog Video and Audio Converter converts 3G/HD/SD-SDI to analog composite video signal, analog component video signal, S-video signal, or HD YUV signal. It also supports input formats of 525i 60, 625i 50, 720p, 1080i, and 1080p. It can extract 1 analog audio stereo signal from a single serial digital signal. It supplies the loop function, which ensures the extension of additional devices.

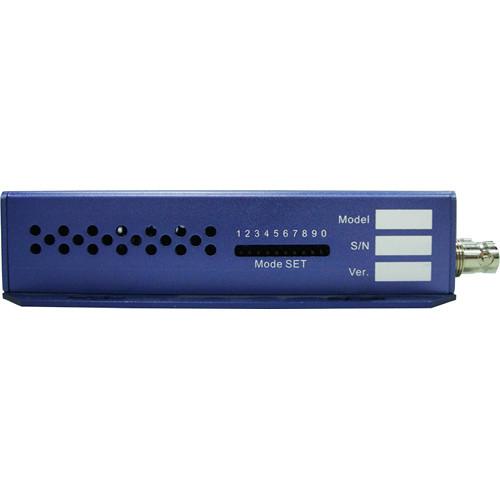

The LED lights on the Mini BOX indicate the status of the input signal and power for prompt user notification. The de-embedded audio channels and analog video output mode can be selected through a DIP switch. However, this converter cannot change the frame frequency, that is, the frame frequency of output signal is the same as the one of input signal. Known for its compact function, this converter is widely used in a variety of environments, like TV programs, post production, studios, broadcast, etc. - Input signal for SD-SDI, 1.5 Gb/s HD-SDI, and 3.0 Gb/s HD-SDI
- 1 analog audio stereo signal extracted from a single serial digital signal
- Select the mode of analog output (CVBS/YUV/YC) freely via a DIP Switch
- Supports self-defined de-embedded audio channel via a DIP switch
- All audio interfaces adopt a 3-PIN connector, balanced output
- Supply real-time input signal status and power indicator denoted by green LED
- Support loop function with power on
In the Box Gra-Vue MIO ENC-HD-AUD 3G/HD/SD to Analog Video and Audio Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO ENC-HD-AUD 3G HD SD to Analog Video and Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO ENC-HD-AUD Specs | | | Interface | 1 x 3G/HD/SD-SDI, BNC connection | | Impedance | 75 Ω | | Format | 525i 59.94, 625i 60
720p 50/59.94, 1080i 50/59.94
1080p 50/59.94 | | | | Output Interface | 3 x BNC connection Can be set as CVBS/YUV /YC output mode | | Impedance | 75 Ω | | | | Interface | Loop Output: 1 x 3G/HD/SD-LOOP, BNC connection | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s
SMPTE-292M; 1.485 Gb/s
SMPTE-425; 2.970 Gb/s | | Level | 800 mV ± 10% | | Rise Time | 750 to 1500 ps (20 to 80%) | | Fall Time | 750 to 1500 ps (20 to 80%) | | Difference Between Rise & Fall | ≤500 ps | | Jitter | <0.2 UI | | | | Output Interface | 2 x 3-pin (balanced) | | Impedance | 600 Ω | | | | Power Consumption | 12 VDC, 1 A | | Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.0 x 6.7 x 3.3" |
