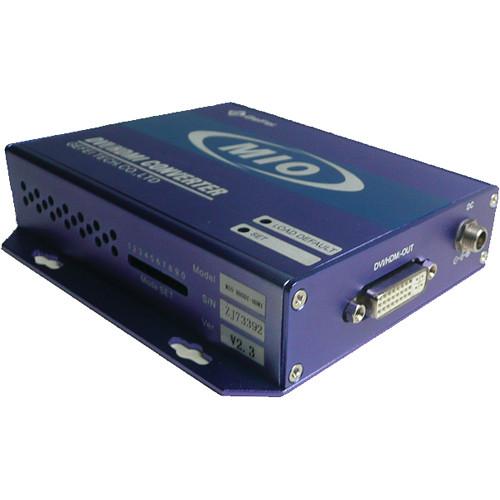

Product description The Gra-Vue MIO MIO HDSDI-HDMI HDMI / DVI Converter switches HD / SD-SDI signal to DVI or HDMI signal for digital display devices such as LCD, DLP, and Plasma. This video and audio scaling converter allows you to adjust output resolution and audio channel by a DIP switch on one side of the box. Moreover, it supports 525i, 625i, 720p, 1080i, and 1080p HD / SD-SDI input formats. The HDMI / DVI converter offers SDI-Loop output to extend other applications. Although the device adopts a DVI interface, the HDMI signal can also be transmitted by using a DVI-to-HDMI adapter or cable. Additionally, in HDMI mode, the SDI audio are embedded into HDMI signal. - Converts HD / SD-SDI signal to good quality DVI or HDMI signal
- Supports 525i, 625i, 720p, 1080i, and 1080p HD / SD-SDI input formats
- Automatic input rate detection

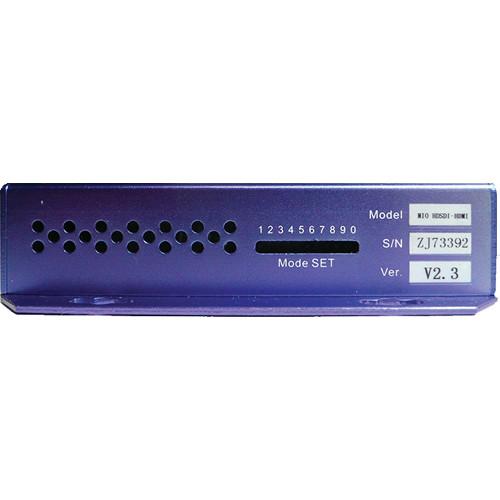

- Output resolution adjustable by a DIP switch
- Supports embedded audio HDMI output via a DVI interface with the DVI to HDMI adapt

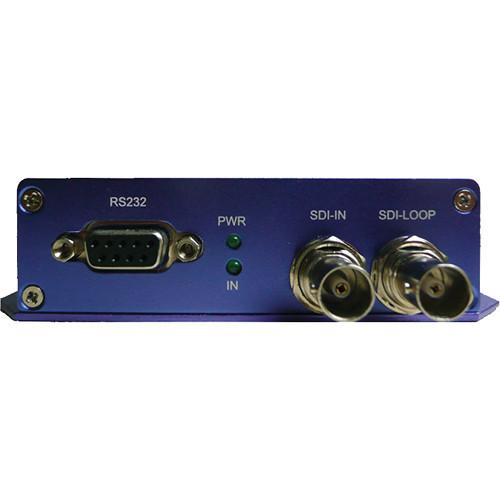

- Provides SDI-Loop output to extend other applications
- Mini box structure easily installed inside frame racks and video walls
- Widely used in broadcasting system, studios, and other professional fields
In the Box Gra-Vue MIO HDSDI-HDMI HDMI / DVI Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) zvxvwzvfewxfrz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO HDSDI-HDMI HDMI DVI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO HDSDI-HDMI Specs | | | Interface | Input: 1 x HD / SD-SDI, BNC | | Standard | 75 Ω | | Resolution | SMPTE-259M-C 270 Mb/s
SMPTE-292M 1.485 Gb/s
SMPTE-425 2.970 Gb/s | | Format | 480i 60 576i 50, 720p 50 / 59.94 / 60
1080i 50 / 59.94 / 60, 1080p 50 / 59.94 / 60 | | Length | ≤ 3.94" (100.00 m) (Belden 1694A) | | | | Output Interface | 1 x HD / SD-SDI Loop output

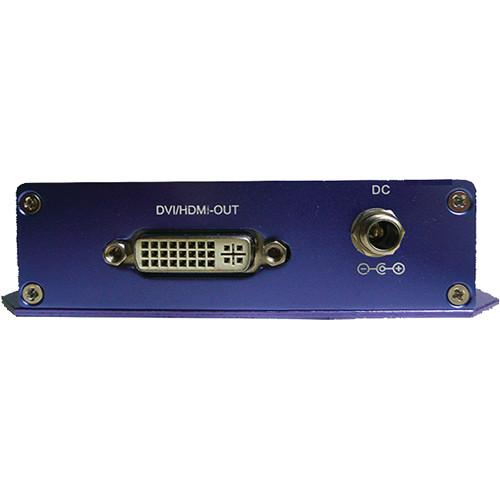

1 x DVI-I (digital signal), female | | Resolution | 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024 1360 x 768, 1400 x 1050, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200 AUTO mode | | | | Power | 12 VDC, 1 A | | Dimensions | 4.84 x 3.62 x 1.14" (123.00 x 92.00 x 29.00 mm) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 11.2 x 6.8 x 3.1" |
