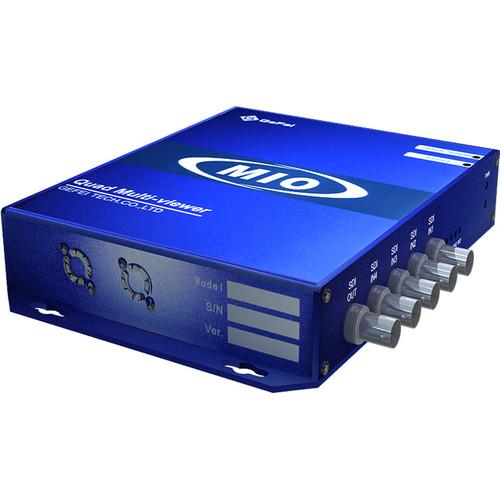

Product description The Gra-Vue MIO MVS-4HD Mini Box Quad HD/SD-SDI Multi-Viewer supports 4-channel 3G/HD/SD auto adaptive inputs and a DVI/HDMI (up to 1920 x 1080) with duplicated HDSDI outputs. It features configurable display layout, display template restore and recall, real time audio and video survey, on-screen alarm, AFD, clock and logo display, dynamic UMD, audio UV meter, etc.
The built-in Web server provides easy remote control. No special software is necessary. It supports SMNP and TSL protocol. Being compact and maintenance-free, this system is suitable for mission critical and live applications. This multi-viewer system is a suitable display solution for broadcast and professional A/V applications such as control room, production, mobile truck, post-production, and play-out system. - User-configurable display layout and display template restore/recall
- Supports HD/SD-SDI signal with embedded audio
- Supports 525i, 625i, 720p, 1080i, 1080p, and automatic detection of input format
- DVI/HDMI output resolutions up to 1920 x 1080p with a duplicated SDI output
- Provides audio/video monitoring, alarm for signal loss, signal freeze, black field, etc.
- Analog and digital clock with countdown timer
- User-defined LOGO display
- Dynamic UMD and Tally from routers and switchers
- Static programmable multi-color UMD
- Active Format Description (AFD)
- Video and audio signal auto survey
- 4-channel audio VU meter per display window
- Selectable display ratio: 4:3, 16:9, and full screen, customized random aspect ratio with 4:3 or 16:9 safe maker
- Selectable embedded audio output
- Support TSL and SNMP protocol
- Alarming of frozen or black video, video losing, and audio silence or losing
- Build-in Web server allows user to remote control the unit through a Web browser
- SDI loop-through for power failure
- SMNP and Tally protocol support
- LED lights for input signal status and power status
- Quick key recall display layout
- Compact and maintenance-free
In the Box Gra-Vue MIO MVS-4HD Mini Box Quad HD/SD-SDI Multi-Viewer MIO POWER-12V1A-NA Power Adapter (U.S.A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO MVS-4HD Mini Box Quad HD SD-SDI Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

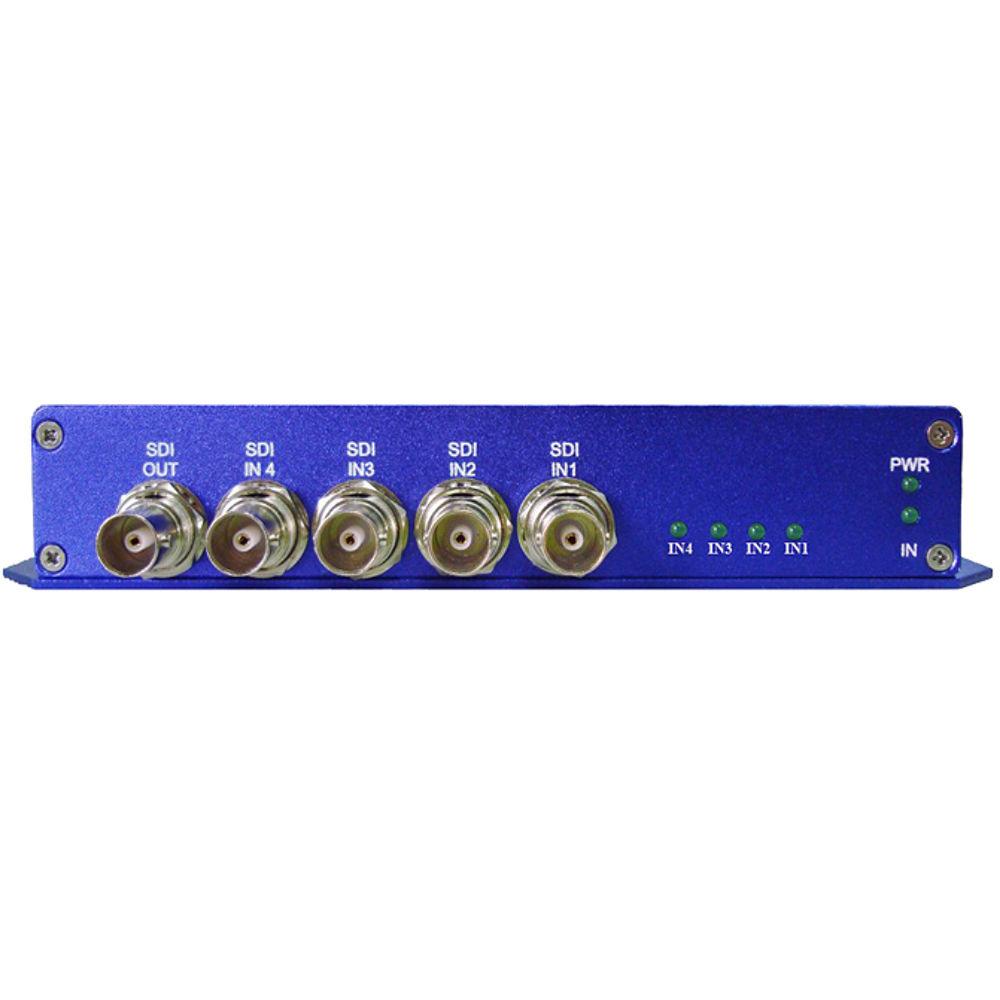

Technical parametersGra-Vue MIO MVS-4HD Specs | Video Input | 4 x BNC, 75 Ω, 3G/HD/SD‐SDI | | Video Format | SD: 480i, 576i, 720P, 1080i, 1080p
HD: 720p 50 Hz/60 Hz 1080i 50 Hz/60 Hz 1080p 24 Hz/25 Hz/30 Hz 1080p 50 Hz/60 Hz | | Audio Format | 2,4 channel embedded audio | | Video Output | DVI-I x 1, female, support HDMI protocol

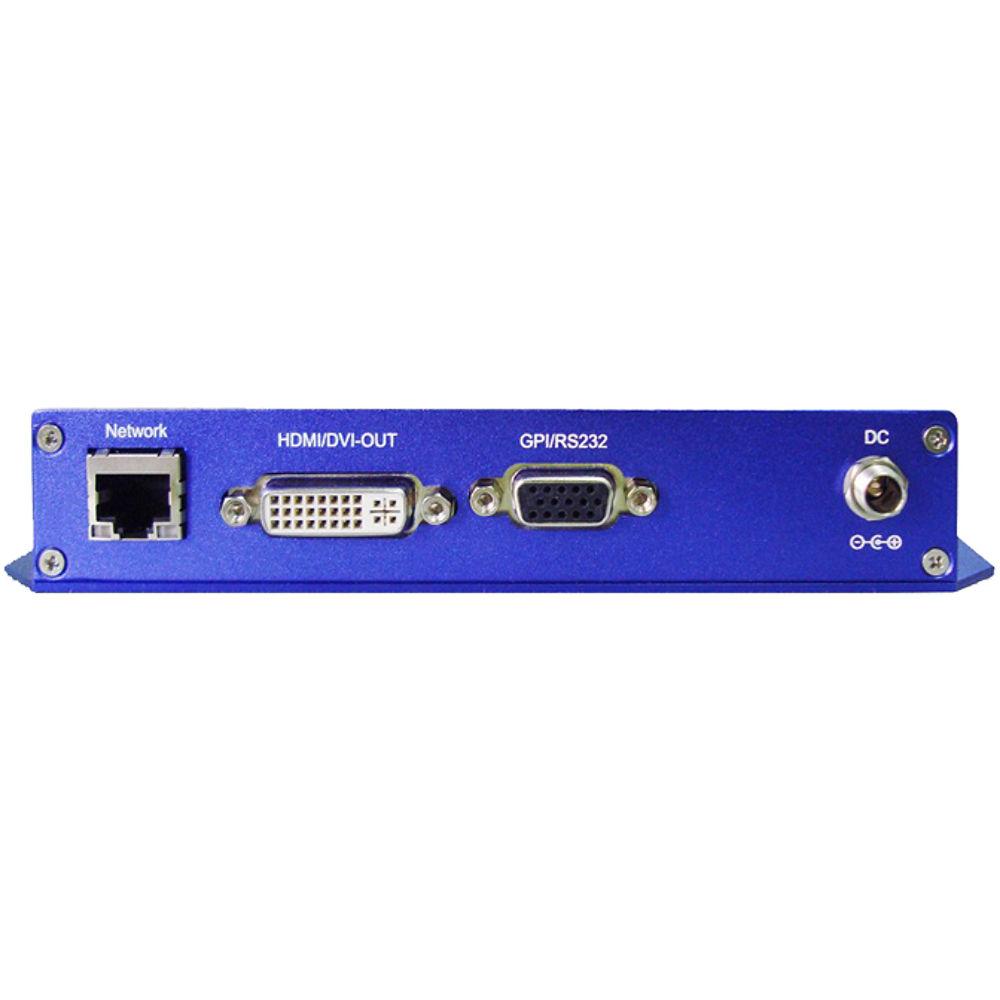

BNC x 1 75 Ω, HDSDI | | Output Format | 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1080 | | Control | RJ45 Ethernet for built-in Web server, TSL SMNP protocol
DB15 - RS-232 for TSL protocol, GPI for Tally, and dynamic UMD | | Button | Display templates recall, load default | | Indicators | Input signal status indicator and power indicator | | Power | 12 VDC, 1.0 A | | Temperature | Work: 41 to 77°F (5 to 25°C)
Storage: 32 to 104°F (0 to 40°C) | | Dimensions | 5.98 x 4.80 x 1.18" (152.00 x 122.00 x 30.00 mm) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.1 x 9.1 x 3.0" |
