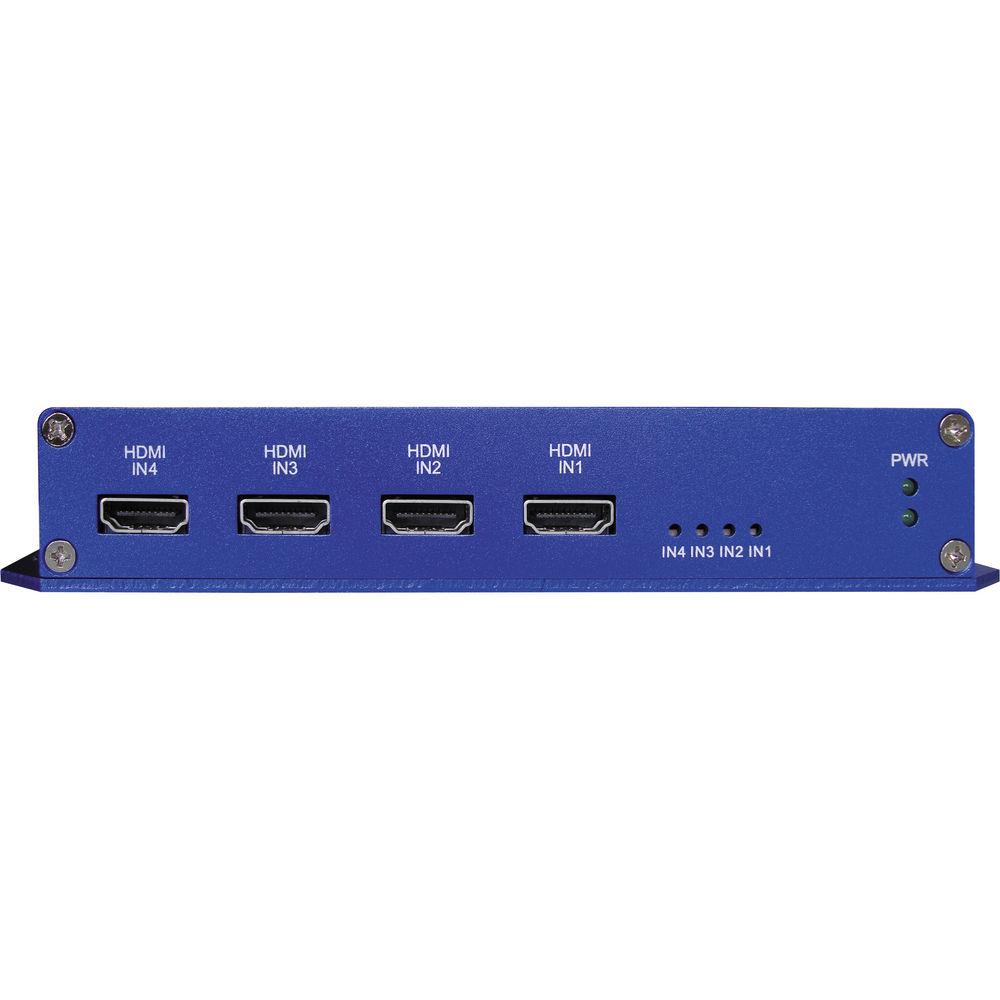

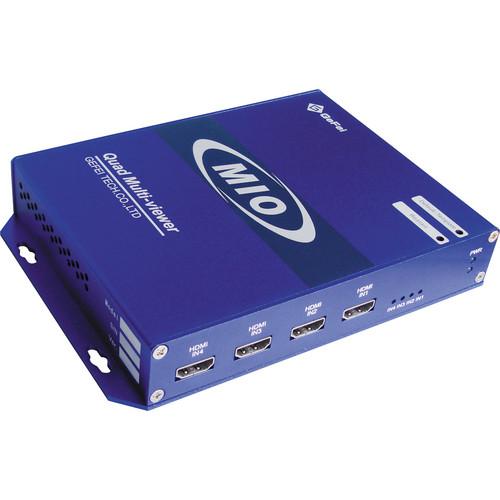

Product description The MIO MVS-4HDMI Mini HDMI Input Multi-Viewer with DVI Output from Gra-Vue is a compact multi-viewer for video and audio monitoring in outside broadcasting and studio environments. It provides four HDMI inputs and one DVI output. The output supports resolutions up to 1080p with selectable embedded audio channel. It is a true multi-view display system with features such as configurable display layout, display template restore, recall, real time audio, video survey, and on-screen alarm, AFD, clock, and logo display, dynamic UMD, and audio UV meter.
With a built-in web server, the MIO MVS-4HDMI multi-viewer allows users to easily remote control the unit via a web browser, with no special software required. The MIO-MVS-4HDMI is a suitable solution for many broadcasting and professional A/V applications, such as control rooms, production, mobile trucks, post-production, and play-out systems. -
- Supports embedded audio
- Output up to 1080p with selectable embedded audio channel
- User configurable display layout template recall/restore
- Real-time video and audio monitoring with alarm for video/audio lost, frozen, black video, EDH error
- Flexible output options: 4:3, 16:9, customized aspect ratio with 4:3 or 16:9 safe marker
- Selectable air timer and countdown timers
- Analog and digital clock
- User defined logo display
- 8-channel audio UV meter, Active Format Description (AFD)
- Built-in router - assign any input to any display window and any channel can be enlarged to full screen
- Static programmable multi-color UMD
- Built-in web server for remote control via web browser
- Quick key to recall the display templates and change the output resolution
- LED for each input channel signal status and power
In the Box Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer with DVI Output MIO POWER-12V1A-NA Power Adapter (U.S.A) ffyvvzdtzxruybxwxdrtwdutway Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer with DVI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

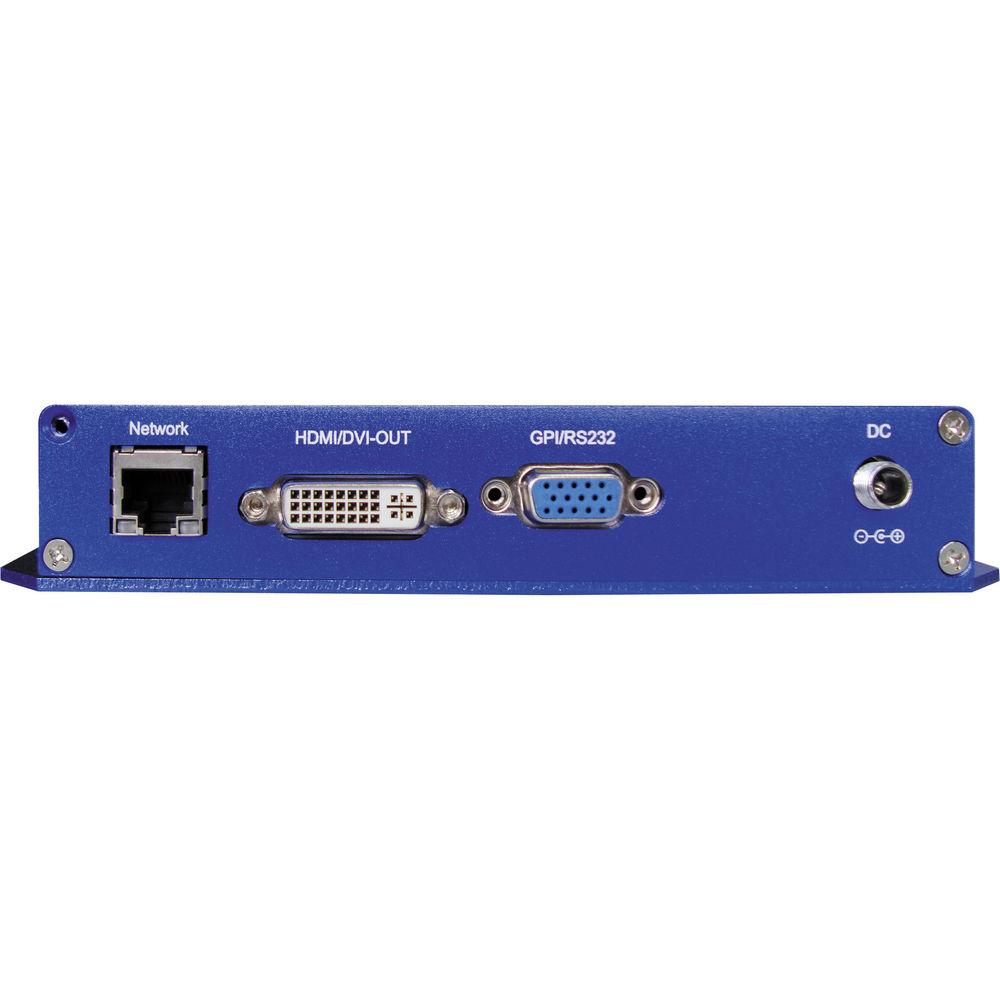

Technical parametersGra-Vue MIO MVS-4HDMI Specs | Input | 4 x HDMI, Type A | | Video Input Format | 720p 50/60
1080i 50/60
1080p 50/60
Supports HDMI signal with 8-channel embedded audio
Supports HDCP protocol | | Output | 1 x DVI-I female, supports HDMI 1.3a protocol | | Output Format | 1024 x 768
1280 x 720
1280 x 1024
1366 x 768
1400 x 1050
1600 x 900
1680 x 1050
1600 x 1200
1920 x 1080 | | Control | RJ 45 Ethernet for built-in Web Server, TSL SMNP protocol
DB15 - RS-232 for TSL protocol, Tally | | Buttons | Display templates recall
Load factory default | | Power | 12 VDC, 1 A, with lock ring | | LED | Power status
4 x Input signal locking | | Operating temperature | 41 to 77°F (5 to 25°C) | | Storage Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | 6.0 x 5.0 x 1.1" (15.2 x 12.2 x 3.0 cm) | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 11.1 x 8.9 x 2.2" |
