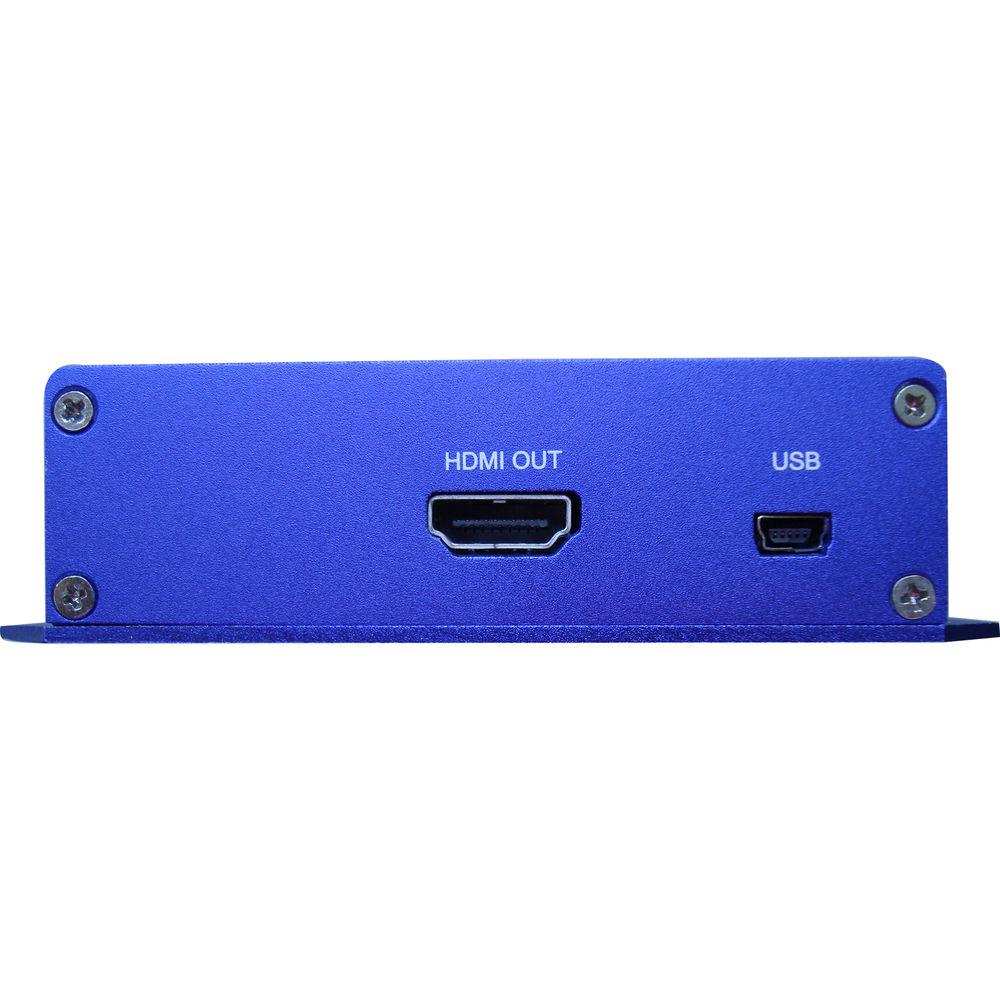

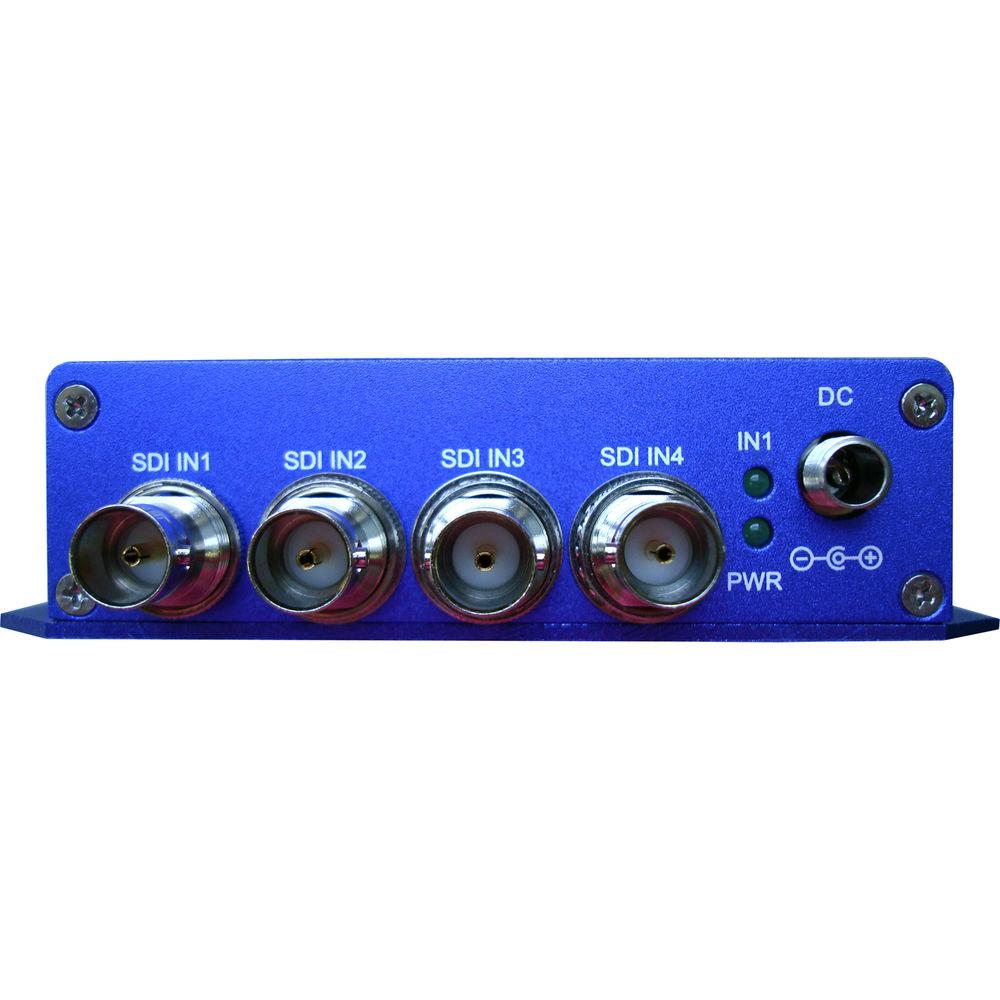

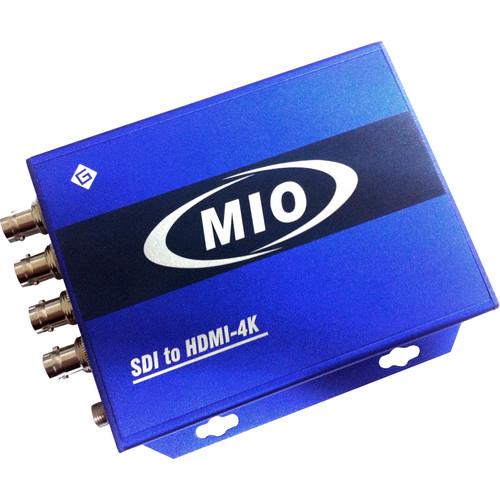

User Manual for Gra-Vue MIO SDI-HDMI-4K 4-Channel HD SD-SDI to HDMI 4K Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue MIO SDI-HDMI-4K 4-Channel HD SD-SDI
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
 |
User manual for the Gra-Vue MIO SDI-HDMI-4K 4-Channel HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue MIO SDI-HDMI-4K converts a 4-channel (quad-link) HD/SD-SDI input signal to a single 4K Ultra HD (3840x2160) HDMI output signal for monitoring on compatible 4K HDMI displays. Additionally, the converter supports single-channel HD/SD-SDI conversion at 720p, 1080i, and 1080p resolutions. Up to 8-channels of embedded SDI audio are passed to the HDMI output. - Key Features
-
- Converts 4-channel HD/SD-SDI signal to a single 4K HDMI output
- Supports single 3G/HD/SD-SDI to HDMI conversion as 720p, 1080i, and 1080p resolution
- HDMI output up to UHD (3840x2160) resolution
- Supports embedded audio
- USB interface for firmware updates
- Compact size
In the Box Gra-Vue MIO SDI-HDMI-4K 4-Channel HD/SD-SDI to HDMI 4K Converter Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MIO SDI-HDMI-4K 4-Channel HD SD-SDI to HDMI 4K Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MIO SDI-HDMI-4K Specs | SDI Inputs | 4 x BNC (75 ohm), HD/SD-SDI quad-link or 3G-SDI single-link | | Input Resolutions | 720p 50/60
1080i 50/59.94/60
1080p 50/59.94/60 | | Maximum Cable Length Supported | ≤ 100 m for HD (Belden 1694A) | | Output | 1 x HDMI | | Output Resolutions | 3840x2160
1920x1080
1280x720 | | Control Interface | 1 x Mini-USB Type B | | Power | 12 VDC, 1 A | | Dimensions | 4.8 x 3.6 x 1.1" (12.3 x 9.2 x 2.9 cm) | | | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 4.0" |
