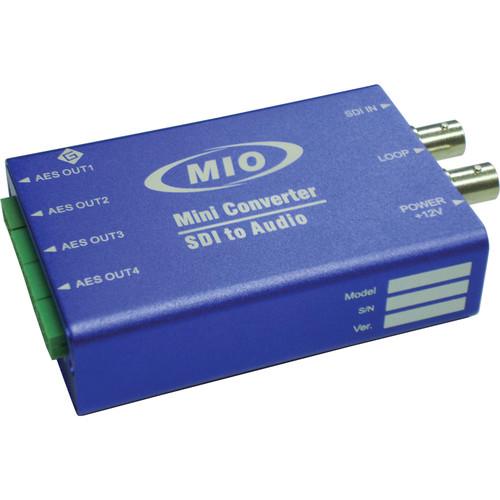

Product description The MMIO DEMUX-HDSDI-AES 3G/HD/SD-SDI to AES Audio De-Embedder from Gra-Vue is an audio de-embedder which extracts 4 channels of AES audio from a 3G/HD/SD-SDI video input. The unit features a BNC input for the video signal, a BNC loop through output, and 4 3-pin Pheonix connectors for the 4 AES balanced audio signal outputs. The de-embedder is powered by a 12V power supply. There are two LEDs that indicate the status of source signal and power. - 4 channel AES audio signal extracted from a single serial digital signal
- Inputs and outputs for SD-SDI, HD-SDI and 3G-SDI
- Supports self-definition de-embedded audio channel via DIP Switch
- 3-PIN Phoenix balanced audio output
- Features real-time input signal status indicator and power indicator
- Supports bypass function with power on
- Easy to install, and can be widely used in broadcasting systems, studios and other professional audio fields
In the Box Gra-Vue MMIO DEMUX-HDSDI-AES 3G/HD/SD-SDI to AES Audio De-Embedder MIO POWER-12V1A-NA Power Adapter (U.S.A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MMIO DEMUX-HDSDI-AES 3G HD SD-SDI to AES Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO DEMUX-HDSDI_AES Specs | Connectors | 1 x BNC, 3G/HD/SD-SDI input
1 x BNC, 3G/HD/SD-SDI Loop Through output
4 x 3-pin Phoenix (balanced), 4-channel AES audio output | | Resolution | SD:
525i 60, 625i 50
HD:
720p 50/60 1080i 50/60, 1080p 24/25/30, 1080p 50/60 | | Video Impedance | 75 Ω | | Audio Impedance | 600 Ω | | Signal Level | 800 mV±10% | | Jitter | < 0.2UI 100 KHz | | LED Status Indicators | 1 x LED green, input signal
1 x LED green, power | | Power | 12 VDC | | Amperage | 1 A | | Dimensions (L x W x H) | 3.8 x 2.55 x 1.1" (9.67 x 6.5 x 2.8 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.6 x 4.6 x 2.9" |
