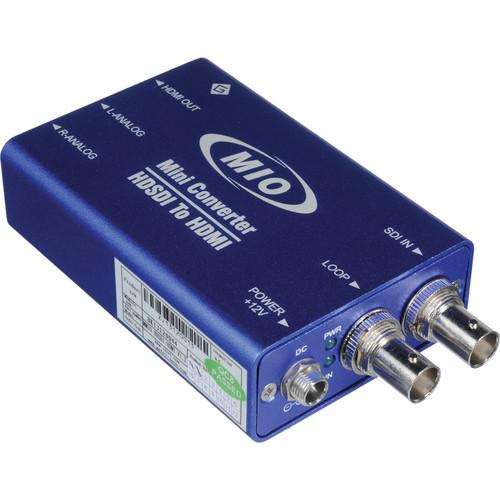

User Manual for Gra-Vue MMIO SDI to HDMI Video Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue MMIO SDI to HDMI Video
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue MMIO SDI to HDMI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MMIO SDI to HDMI Video Converter from Gra-Vue converts an auto-sensing 3G/HD/SD-SDI input to an HDMI type A output in up to 1080p HD.
An L/R RCA audio output allows de-embedding the SDI audio for separate output whether for HDMI output or DVI output via an optional adapter. A 3G/HD/SD-SDI loop output allows for local or remote SDI monitoring. LED indicators confirm the status of the input signal and power supply. - Key Features
-
- Converts an auto-sensing 3G/HD/SD-SDI input to an HDMI output in up to 1080p
- L/R RCA audio output; 3G/HD/SD-SDI loop output
In the Box Gra-Vue MMIO SDI to HDMI Video Converter MIO POWER-12V1A-NA Power Adapter (U.S.A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MMIO SDI to HDMI Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO HDSDI-HDMI Specs | Input | 1x 3G/HD/SD-SDI on BNC, 75 ohm
Supported distance:
SD: ≤656 ft (200 m) via optional Belden 8281
3G/HD: ≤328 ft (100 m) via optional Belden 1694A | | Supported Input Resolutions | 525i/60, 625i/50, 720p50/60, 1080i50/59.94/60, 1080p50/59.94/60 | | Output | 1x HDMI, type A, female
2x RCA audio (L/R)
1x 3G/HD/SD-SDI loop on BNC, 75 ohm | | Selectable Output Formats | 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 50/59.94/60 | | Power | 12 VDC, 1A | | Dimensions | 3.8 x 2.5 x 1.1" (9.67 x 6.5 x 2.8 cm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.5 x 4.5 x 2.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
