User Manual for Gra-Vue MMIO VDA 1 x 4 Analog Video Distribution Mini Box Click to enlarge the picture
Contents of the user manual for the Gra-Vue MMIO VDA 1 x 4
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
 |
User manual for the Gra-Vue MMIO VDA 1 x 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

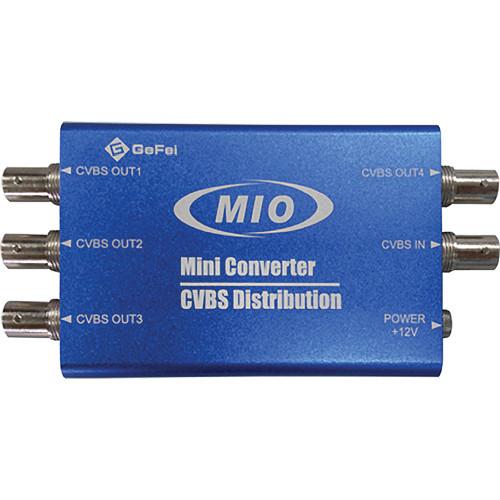

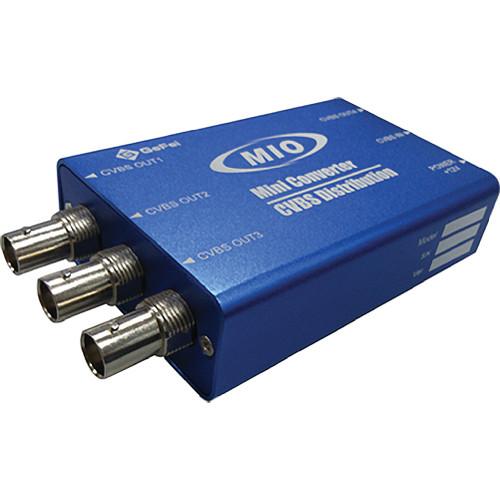

Product description The Gra-Vue MMIO ADA 1 x 4 Analog Video Distribution Mini Box distributes 1 analog video input across 4 analog outputs. The device supports CVBS input signal and automatic input detection of PAL and NTSC formats. The LED lights on the Mini box indicate the status of input signal and power supply. - Four distribution outputs
- Supports PAL / NTSC formats and auto-sensing input

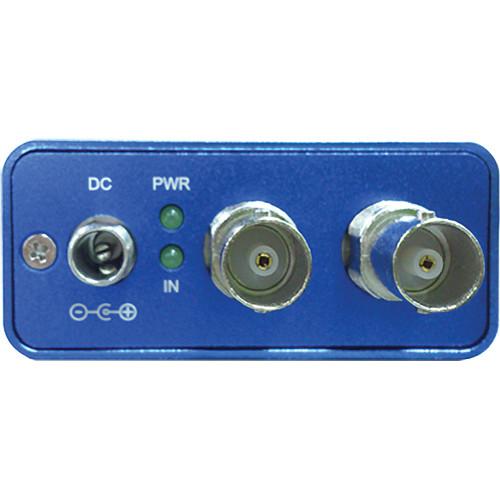

- Equipped with LED lights that indicate the status of input signal and power supply
- Widely used in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue MMIO VDA 1 x 4 Analog Video Distribution Mini Box MIO POWER-12V1A-NA Power Adapter (U.S.A) dyvczqqvdufertcdfucqsqdbveutvt Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MMIO VDA 1 x 4 Analog Video Distribution Mini Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO VDA Specs | | | Input Interface (TX) | CVBS, BNC connection | | Impedance | 75 Ω | | Format | PAL / NTSC | | | | Output Interface | CVBS, BNC connection | | Impedance | 75 Ω | | Signal Amplitude | 1 Vpp | | White Level | 0.7 V | | H-sync Level | -0.3 V | | Peak Level | Color Sync Peak: 300 mv | | Status Indicator | Input signal status indicator
Power indicator (indicated by shining or extinguishing of the green LED) | | Power Consumption | 12 VDC, 1.5 A | | Dimensions | 3.8 x 2.5 x 1.1" (96.7 x 65.0 x 28.0 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.559 x 4.488 x 2.913" |
