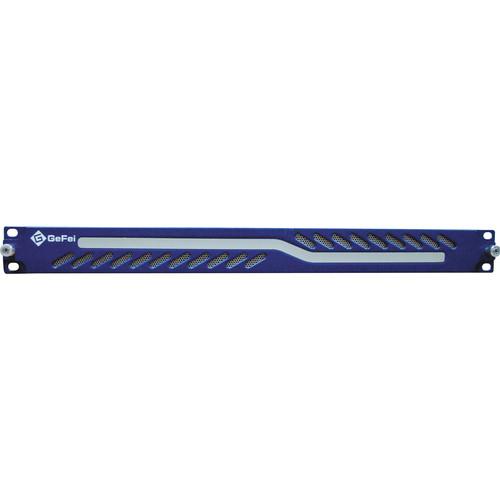

User Manual for Gra-Vue MRS-1608MVS 8-Output 3G HD SD-SDI Multiview Display System Click to enlarge the picture
Contents of the user manual for the Gra-Vue MRS-1608MVS 8-Output 3G HD SD-SDI
- Product category: Multiviewer Processors Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Multiviewer Processors
 |
User manual for the Gra-Vue MRS-1608MVS 8-Output 3G HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

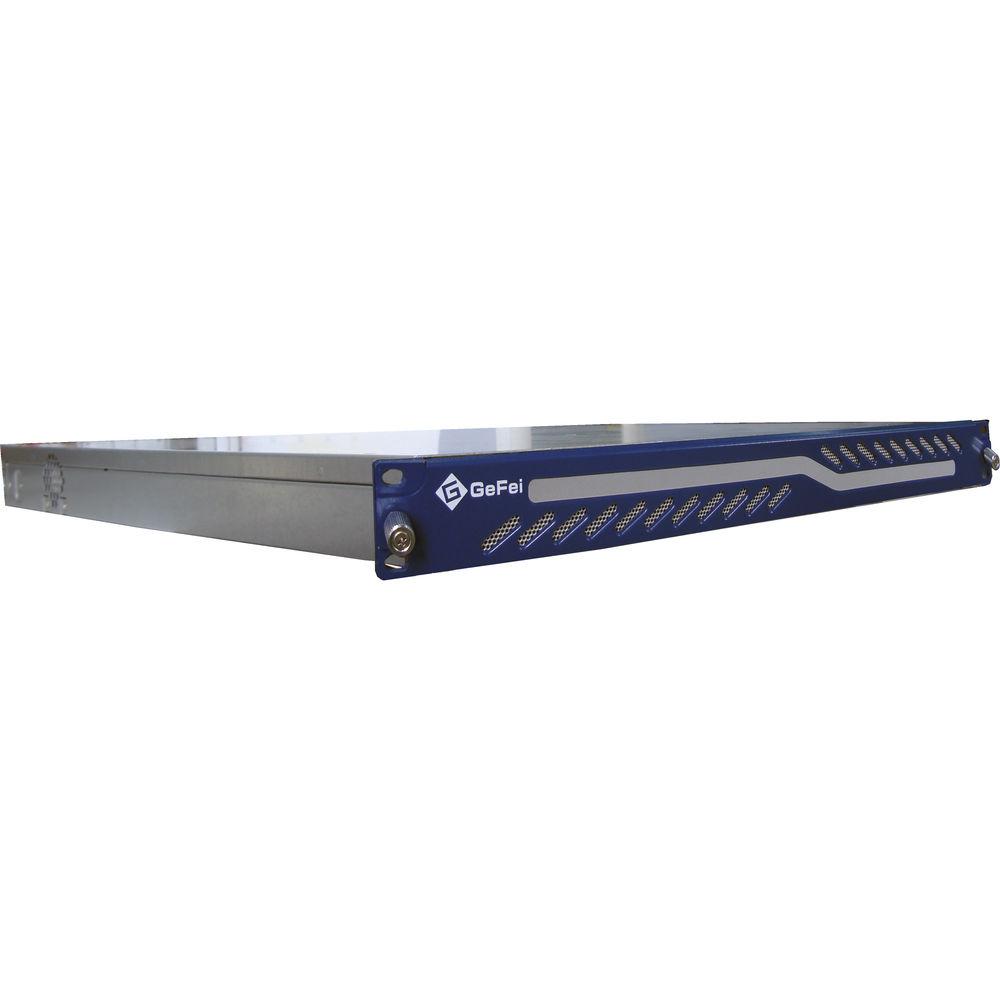

Product description The 1 RU MRS-1608MVS 8-Output 3G/HD/SD-SDI Multiview Display System from Gra-Vue is based on a modular design and provides up to 16 input signals. The system comes installed with two output modules and provides eight SDI outputs, which can display up to 24 video channels on a total of eight screens. Using this display system, it is easy to build a small-to-medium scale screen wall in different applications such as TV studios, master control centers, and general monitoring rooms. - High-image quality with 1920 x 1080 resolution for each output.
- With MIO to convert HD-SDI to HDMI/DVI signal, this display module is compatible with different types and brands of monitor screens.
- 24 outputs can be configured in any rectangle combination, and can be used as multiple separate screen wall groups with the ability of sharing the same input sources. This function makes the system suitable for a TV studio which requires different screen wall scenes for different broadcasting program.
- Built-in router allows any input source to be displayed multiple times on multiple screens.
- Video channels can be configured at any size and any position. Video image can be spanned across multiple screens, and can even be displayed on the whole screen wall.
- Supports picture-in-picture and picture overlay, making layout design more flexible.
- Preset up to 20 layouts for different application via quick tools such as align left, align right, and so on. Apply each layout by one simple click on the thumbnail.
- Provides editable UMD content and up to eight channels of audio meter displays.
- Provides analog clock, digital timer, on-air timer, and countdown timer on each output. They can be referenced by Ethernet or synchronized by LTC.
- Supports static tally via GPI, and dynamic UMD and tally via TSL protocol.
- Whole unit can be synchronized by external genlock.
- Video image can be displayed as their original ratio or configured by the user.
- Display AFD information, input format, and safe area on each video channel.
- User-friendly interface makes it easy to configure and operate the whole system.
In the Box Gra-Vue MRS-1608MVS 8-Output 3G/HD/SD-SDI Multiview Display System (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MRS-1608MVS 8-Output 3G HD SD-SDI Multiview Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

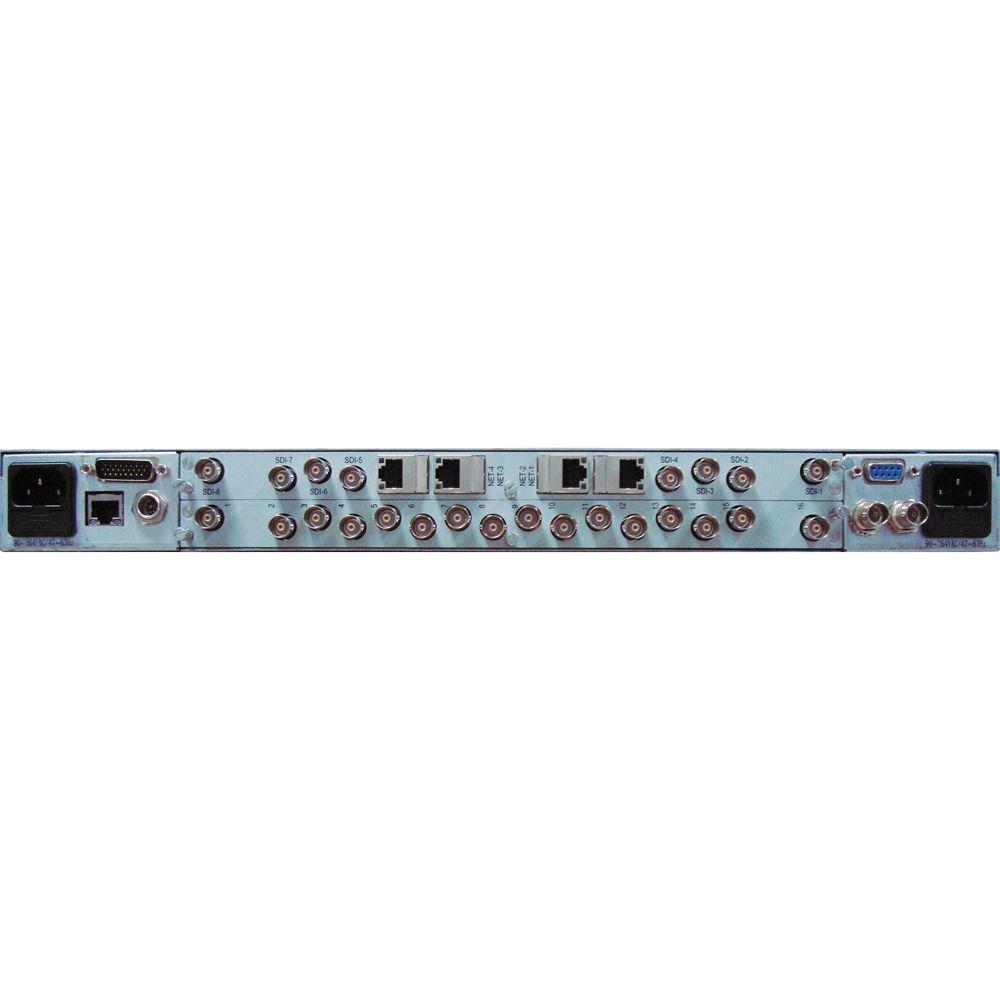

Technical parametersGra-Vue MRS-1608MVS Specs | Reference Input | 1 x Ref in
1 x Ref loop | | Format | NTSC/PAL | | Input Signal | 16 x HD/SD-SDI, BNC
Supports HD/SD input signal with embedded audio | | HD-SDI Input | Impedance: 75 Ohms
Format: SMPTE 292 M1.485, 1.485/1.001 Gb/s
SMPTE 4252.970 Gb/s
1080p 50/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
Jitter: < 1 UI (10 Hz), < 0.2 UI (100 kHz) | | SD-SDI Input | Impedance: 75 Ohms
Format: SMPTE 295M (525/625 lines)
Return Loss: >15 dB to 270 MHz
Jitter: < 0.2 UI | | Output Signal | 8 x HD/SD-SDI
Format: SMPTE 295M
SMPTE 292M 1.485, 1.485/1.001 Gb/s
SMPTE 425; 2.970 Gb/s
1080p 50/60
1080i 50/60
720p 50/60
625i 50
525i 59.94
Return Loss: > 15 dB, 5 MHz to 1.5 GHz | | Control Ports | Ethernet: 5 x RJ45 (1 for control, 4 for upgrade)
Type: 10/100/1000M
Serial Port: RS-232, DB9
GPI In: DB26
LTC interface | | Power Supplies | 2 x 1200 W/48 V | | Rack Size | 1 RU | | Dimensions | 17.2 x 19.4 x 1.7" / 43.7 x 49.2 x 4.4 cm | | | | Package Weight | 31.4 lb | | Box Dimensions (LxWxH) | 24.3 x 24.1 x 7.9" |
