User Manual for Gra-Vue MRS-16SDI-IN Input Module Click to enlarge the picture
Contents of the user manual for the Gra-Vue MRS-16SDI-IN Input Module
- Product category: Multiviewer Accessories Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Multiviewer Accessories
|
User manual for the Gra-Vue MRS-16SDI-IN Input Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

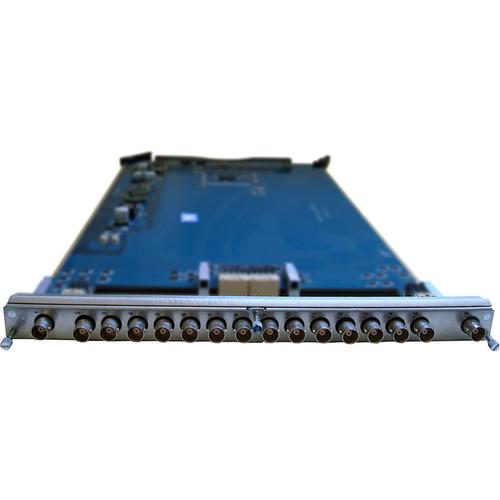

Product description The Gra-Vue MRS-16SDI-IN Input Module is a large router and multi-viewer display system based on a modular design. This module can support a maximum of 128-channel 3G/HD/SD/CVBS/DVI/HDMI signal source hybrid inputs and maximum 32 HDSDI/HDMI outputs. This display system is packed with features: good-quality display, flexible and customizable functions, remote panel, video and audio monitoring, alarm warning, and more.This input module provides 5 kinds of input module selections, which include 16-channel HD/SD input card, 6-channel HDMI input card (HDCP compatible), 4-channel DVI-I, 2-channel CVBS input card, and 6-channel VGA input card. Every output card is configured with 4 x HDMI (1920 x 1200) and 4 x HDSDI (1080p) outputs. The MRS-16SDI-IN is a suitable solution for many applications where video/audio monitoring and display are required, such as studio, broadcasting room, general control center, etc. - Easy-to-select, multi-format input combination
- Flexible output options with 4:3, 16:9 customized aspect ratio
- Up to 1920 x 1080p 60 output resolutions
- Displays any source in any size, any position, across any screen, or any number of replications
- Places the channels with multiple layers
- Marks key program and key windows
- Selectable air timer and countdown timers, analog and digital clocks types
- Dynamic UMDs and Tally from routers and Switchers
- Supports format display of input signal and AFD information display
- Supports audio monitoring and video full-screen output
- Alarming of frozen or black video, video losing, and audio silence or losing
- 3 kinds of alarm message: alarm text and icon on window, voice alarm by SNMP, and graphic display in MagicOn by SNMP
- Built-in web server via RJ-45
- Easy control by Web through CAT5 connected and by touch panel through RS232
- SNMP, TSL, GPS serial timing
In the Box Gra-Vue MRS-16SDI-IN Input Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MRS-16SDI-IN Input Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MRS-16SDI-IN Specs | Interface | 16 x HD/SD-SDI, BNC | | HD | SMPTE 292M: 1.485, 1.485/1.001 Gb/s
SMPTE 425: 2.970 Gb/s | | SD | SMPTE 295M (525/625 lines) | | File Format | 720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30
1080p 50/59.94/60 | | | | Package Weight | 11.02 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 4.0" |
