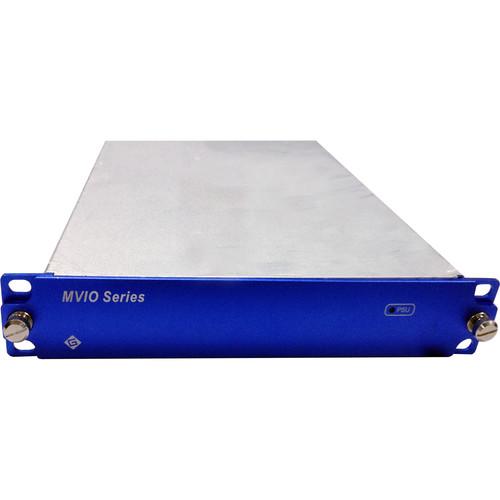

User Manual for Gra-Vue MVIO DEC Composite Video to SD-SDI Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue MVIO DEC Composite Video to
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue MVIO DEC Composite Video to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MVIO DEC Composite Video to SD-SDI Converter from Gra-Vue is identical in functionality to the XIO 9010DEC card, but is housed in a standalone, 1U half-rack chassis. It converts one analog composite video signal to four identical SDI signals. 625i50 (PAL) and 525i60 (NTSC) format input signals are supported.
LED lights on the unit indicate the status of input signal and power supply, in order to let the user know the status immediately. It supports SNMP and can be real-time managed and monitored by XIO NET, the Network Management Module, via Ethernet. -
- One analog composite video inputs, four identical SDI outputs
- Supports NTSC and PAL format for input signals
- 10-bit video processing
- Cables may be hot-swapped
- LED lights indicate status of signals and power supply
- Supports SNMP and can be real-time managed and monitored by XIO NET via Ethernet
- Designed for use in broadcasting system, studios, and other professional fields
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO DEC Composite Video to SD-SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO DEC Specs | Supported Video Formats | 525i60 (NTSC), 625i50 (PAL)
SMPTE 259M-C, 270 Mbps | | Analog Video Input | 1 x Composite (BNC, 75 ohms)
Reflection Loss: > 40 dB, 5.8 MHz | | Reference Input | 1 x Analog Composite (BNC) | | Analog Audio Input | N/A | | Digital Video Output | 4 x SDI (BNC, 75 ohms)
Level: 800 mV ± 5%
Jitter: < 0.2 UI (100 KHz) | | Power | 110 to 240 VAC, 60 W | | Power Consumption | 2 to 3 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
