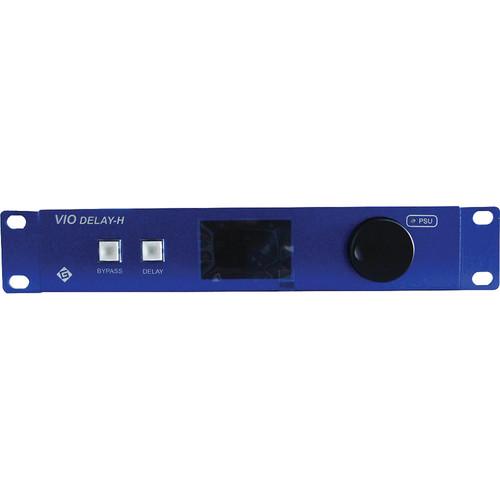

Product description The MVIO Delay HD/SD-SDI Signal Delay Device from Gra-Vue enables delaying an HD-SDI signal up to 20 seconds. Common applications for signal delay include live production scenarios where the audio is out of sync or to seamlessly mix footage being captured locally with a satellite feed. The original un-delayed signal is looped back out along with two mirrored HD/SD-SDI outputs of the delayed signal. - Supports SD-SDI and HD-SDI along with embedded audio
- The delay can be adjusted frame-by-frame
- Audio mute button eliminates embedded audio if desired
- RS-232 port for remote operation
- Automatic signal bypass with device powered off
- Supports SNMP Web protocol

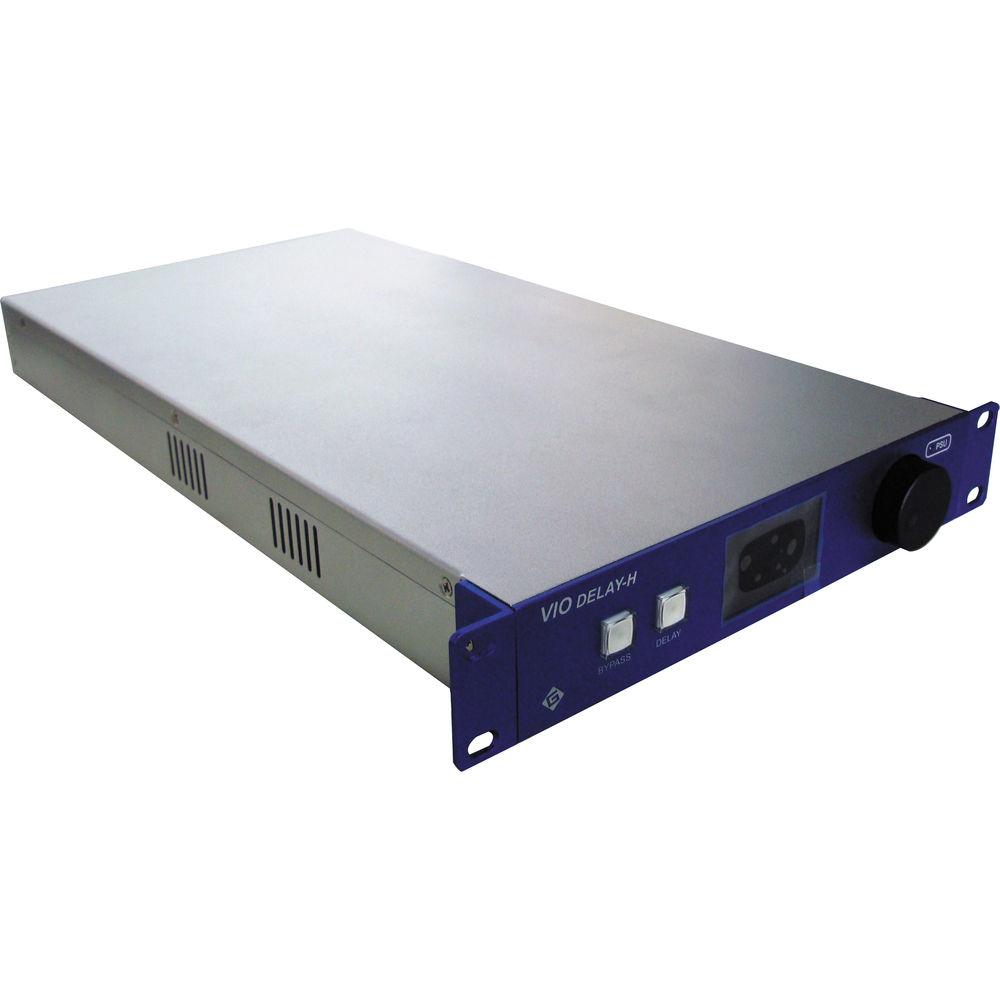

- Half-wide 1U rackmountable chassis
In the Box Gra-Vue MVIO Delay HD/SD-SDI Signal Delay Device Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO Delay HD SD-SDI Signal Delay Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

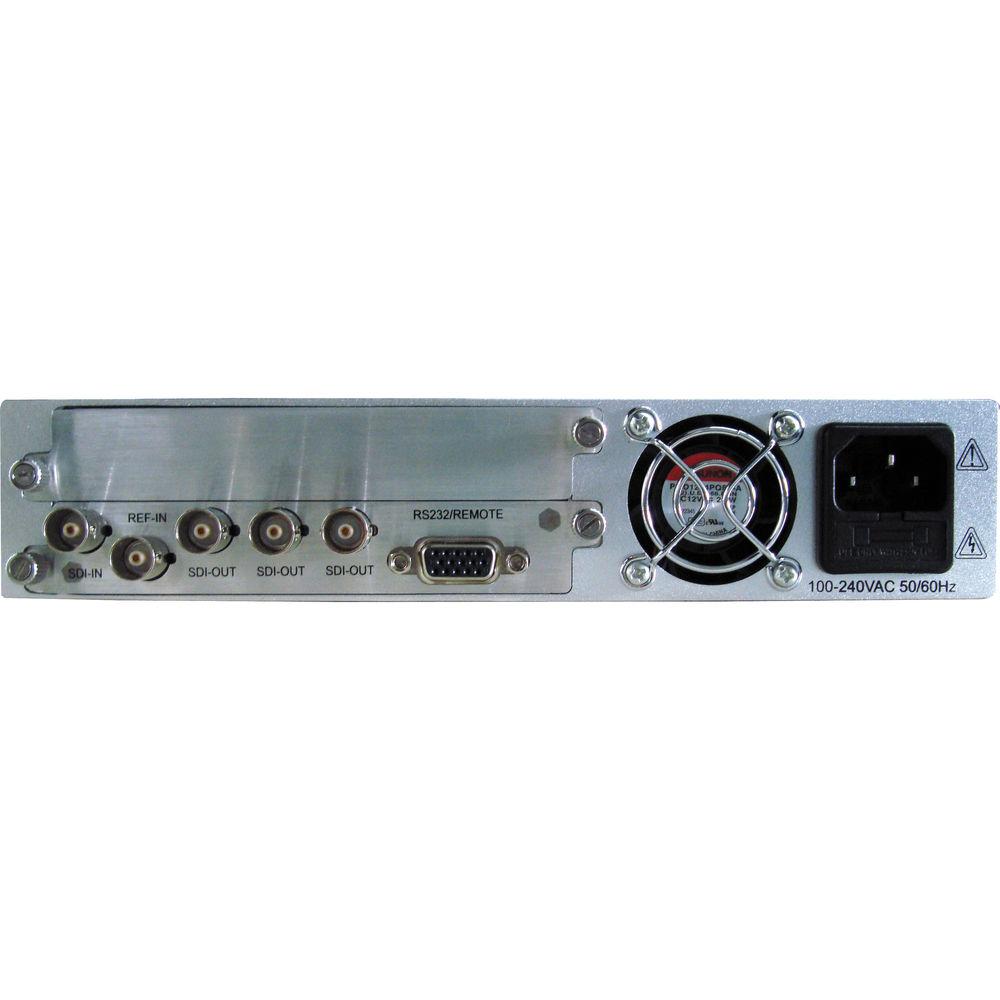

Technical parametersGra-Vue MVIO DELAY Specs | | | Input | 1 x HD/SD-SDI on BNC
Impedance: 75 ohm | | Outputs | 1 x HD/SD-SDI loop-out
2 x HD/SD-SDI on BNC
Impedance: 75 ohm
Level: 800 mV ±5%
Jitter: < 0.2 UI at 100 KHz | | Supported Resolutions | 525i
625i
720p
1080i: 50, 59.94, 60
1080p: 23.98, 24, 25, 29.97 | | Reference | 1 x Composite BNC input
Impedance: 75 ohm | | Network | 1 x RS-232 on DB-9 female | | | | Maximum Delay | 20 seconds for HD-SDI | | | | Power Requirements | 110 to 250 VDC | | Power Consumption | 36 W | | Operating Temperature | 41 to 77°F / 5 to 25°C | | Rack Height | 1 RU | | Dimensions | 8.6 x 17 x 1.9" / 219 x 432 x 48 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 23.0 x 19.4 x 6.6" |
