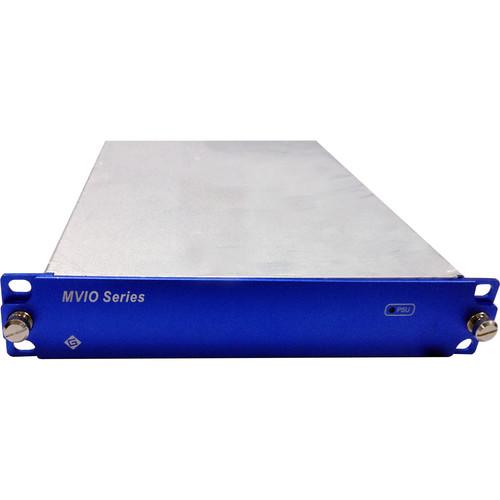

Product description The MVIO DES Composite Video to SD-SDI Converter with Frame Sync from Gra-Vue is identical in functionality to the XIO 9010DES card, but is housed in a standalone, 1U half-rack chassis. It converts one analog composite video signal to four identical SDI signals with frame sync processing. 625i50 (PAL) and 525i60 (NTSC) format input signals are supported.
LED lights on the unit indicate the status of input signal and power supply, in order to let the user know the status immediately. It supports SNMP and can be real-time managed and monitored by XIO NET, the Network Management Module, via Ethernet. -
- One analog composite video inputs, four identical SDI outputs
- Supports NTSC and PAL format for input signals
- Provides an individual Ref interface and frame sync processing
- Three Sync Mode: INT, Single EXT, and Global EXT
- 10-bit video processing
- Cables may be hot-swapped
- LED lights indicate status of signals and power supply
- Supports SNMP and can be real-time managed and monitored by XIO NET via Ethernet
- Designed for use in broadcasting system, studios, and other professional fields
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO DES Composite Video to SD-SDI Converter with Frame Sync in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO DES Specs | Supported Video Formats | 525i60 (NTSC), 625i50 (PAL)
SMPTE 259M-C, 270 Mbps | | Analog Video Input | 1 x Composite (BNC, 75 ohms)
Reflection Loss: > 40 dB, 5.8 MHz | | Reference Input | 1 x Analog Composite (BNC) | | Analog Audio Input | N/A | | Digital Video Output | 4 x SDI (BNC, 75 ohms)
Level: 800 mV ± 5%
Jitter: < 0.2 UI (100 KHz) | | Power | 110 to 240 VAC, 60 W | | Power Consumption | 2 to 3 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
