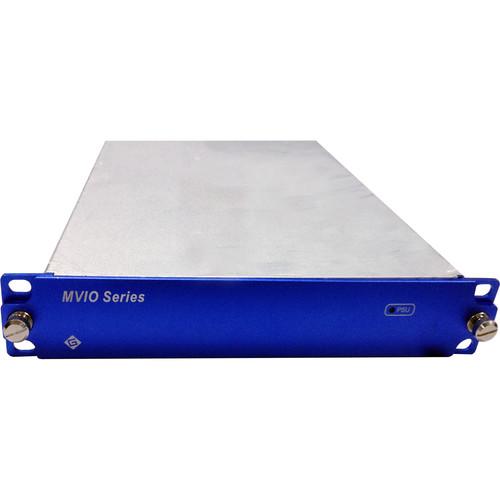

Product description The MVIO ENC SD-SDI to Composite Video Converter from Gra-Vue is identical in functionality to the XIO 9020ENC card, but is housed in a standalone, 1U half-rack chassis. It converts one SDI signal to four analog composite video signals, and outputs two SDI signals. 625i50 (PAL) and 525i60 (NTSC) format input signals are supported.
The MVIO ENC provides automatic signal equalization for up to 200M (Belden 1694A), which can improve the signal quality and reduce the signal loss caused by long distance transmission of input source. LED lights on the unit indicate the status of input signal and power supply, in order to let the user know the status immediately. It supports SNMP and can be real-time managed and monitored by XIO NET, the Network Management Module, via Ethernet. -
- One SDI input, four analog composite video outputs, and two SDI loop-through outputs
- Supports NTSC and PAL format for input signals
- 10-bit video processing
- Cables may be hot-swapped
- Provides automatic signal equalization for up to 200M (Belden 1694A)
- LED lights indicate status of signals and power supply
- Supports SNMP and can be real-time managed and monitored by XIO NET via Ethernet
- Designed for use in broadcasting system, studios, and other professional fields
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO ENC SD-SDI to Composite Video Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO ENC Specs | Supported Video Formats | 525i60 (NTSC), 625i50 (PAL)
SMPTE 259M-C, 270 Mbps | | Digital Video Input | 1 x SD-SDI (BNC, 75 ohms)
Maximum length: < 200 M (Belden 1694A) | | Reference Input | 1 x BNC | | Digital Video Output | 2 x SDI loop-through (BNC, 75 ohms)
Level: 800 mV ± 5%
Jitter: < 0.2 UI (100 KHz) | | Analog Video Output | 4 x Composite Video (BNC, 75 ohms) | | Analog Audio Output | N/A | | Power | 110 to 240 VAC, 60 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
