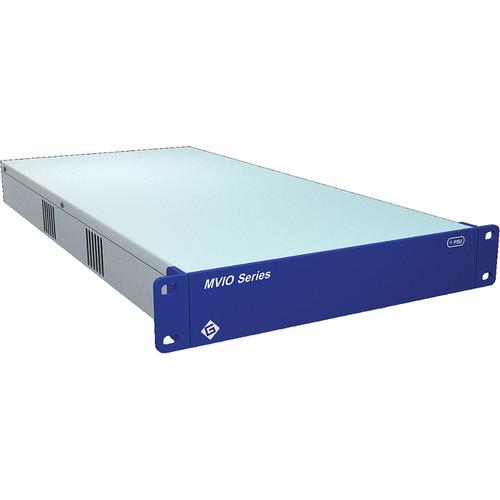

Product description The MVIO FS HD/SD-SDI Frame Synchronizer from Gra-Vue will synchronize the video stream to its own internal clock or an external source. A built-in distribution amplifier returns the synchronized signal through four mirrored HD/SD-SDI outputs. Designed for standalone operation, the MVIO FS fits in a 1RU rack space, and is controlled via a Web GUI generated by a built-in Web server. - Reference input allows signal to be synchronized to a common source such as a house clock
- Reference inputs supports blackburst (BB), tri-level, and NTSC and PAL sync
- Supports three sync modes: internal, external, and global external
- Automatic detection of SDI resolution
- Automatic equalization and reclocking to help minimize signal loss following long cable runs
- Supports SDI-embedded audio
- Manual horizontal and vertical phase adjustment
- Ethernet controllable with support for SNMP
In the Box Gra-Vue MVIO FS HD/SD-SDI Frame Synchronizer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO FS HD SD-SDI Frame Synchronizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO FS Specs | | | SDI Input | Connector: 1 x HD/SD-SDI on BNC
Impedance: 75 ohm
Maximum Cable Length: < 328' / 100 m (Belden 1694A) | | Reference Input | Connector: 1 x BNC
Impedance: 75 ohm
Supported Sync Types: Blackburst, PAL and NTSC, tri-level | | SDI Outputs | Connector: 4 x HD/SD-SDI on BNC Impedance: 75 ohm
Level: 800 mV ±5% Jitter: < 0.2 UI at 100 kHz | | Supported Resolutions | 625i50, 576i60, 720P, 1080i, 1080p | | Supported Standards | SIMPTE 259M-C, SMPTE 292M, SMPTE 344M, SMPTE 425 | | Network | 1 x Ethernet on RJ-45 | | | | Operating Temperature | 41 to 77°F / 5 to 25°C | | Power Requirements | 110 to 240 VDC | | Power Consumption | 60 W | | Rack Height | 1 RU | | Dimensions | 8.2 x 17 x 1.9" / 219 x 432 x 48 mm | | Weight | Not specified by manufacturer |
