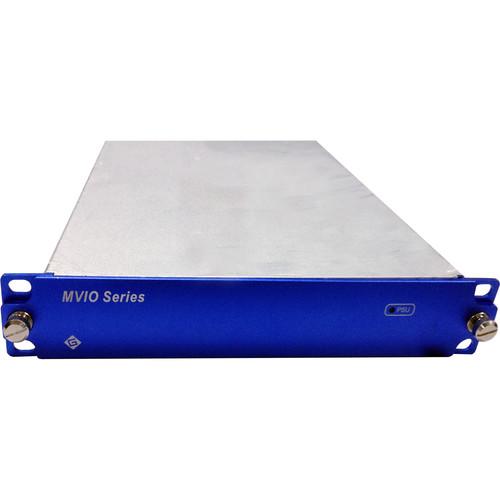

User Manual for Gra-Vue MVIO HDDEM-2AES 2-Channel HD-SDI AES Audio De-Embedder Click to enlarge the picture
Contents of the user manual for the Gra-Vue MVIO HDDEM-2AES 2-Channel HD-SDI AES
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue MVIO HDDEM-2AES 2-Channel HD-SDI AES contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MVIO HDDEM-2AES 2-Channel HD-SDI AES Audio De-Embedder from Gra-Vue is a half-rack-wide standalone de-embedder which extracts two-channel AES balanced audio signals from an HD/SD-SDI signal, and outputs two identical serial digital signals. The de-embedded audio can be selected through a DIP switch and used as input for crossing output, mixing output, and other similar applications. The unit features automatic input format detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080p.
The MVIO HDDEM-2AES De-Embedder provides automatic signal equalization for long cable applications (up to 328' over Belden 1694A). This improves the signal quality and reduces signal loss caused due to long distance transmission of the input source. The LED lights indicate the status of input signal and power supply. This de-embedder also supports SNMP and can be real-time managed and monitored via the XIO NET network management module (sold separately). - Supports 625i 50, 525i 60, 720p, 1080i, 1080p, 1080psf formats and automatic detection of the input format
- Enables selection of de-embedded audio group though a DIP switch
- Supports hot swapping / hot plugging
- Automatic signal equalization for long distance transmission
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately)
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue MVIO HDDEM-2AES 2-Channel HD-SDI AES Audio De-Embedder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO HDDEM-2AES 2-Channel HD-SDI AES Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO HDDEM-2AES Specs | | | Input | 1 x BNC, HD/SD-SDI | | Impedance | 75 ohms | | Resolution | SD: 625i/50, 525i/60
HD: 1080i 50 / 60, 720p 50 / 60, 1080p 24 / 25 / 30, 1080psf 24
SMPTE 259M-C 270 Mb/sec
SMPTE 292M; 1.485 Gb/sec | | Maximum Length | 328' (100 m), Belden 1694A | | | | Output Interface | 4 x 3-pin, balanced | | Maximum Level | 0 dBFs (24 dBu) | | | | Output Interface | 2 x BNC, HD/SD-SDI | | Format | SMPTE 259M-C; 270 Mb/sec
SMPTE 292M; 1.485 Gb/sec | | Level | 800 mV, ±5% | | Jitter | <0.2 UI (100 kHz) | | | | LED Indicators | 1 x Green, signal locking
1 x Green, power | | | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Power | 110 ‐ 240 VDC, 60 W | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) | | Weight | Not specified by manufacturer |
