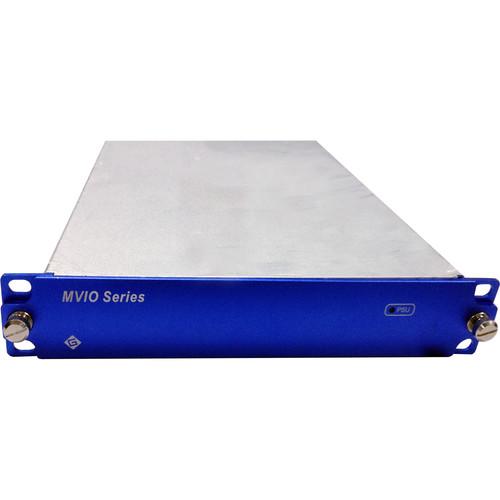

Product description The MVIO HDDEM-4AUD-FS 4-Channel Balanced Audio De-Embedder with Frame Sync Processing from Gra-Vue is a half-rack 1RU standalone audio de-embedder which extracts two user selectable stereo pairs from the SDI stream and outputs four balanced audio signals, and applies frame sync processing to the output signal. DIP switches are used to select the audio group you want to de-embed and the de-embedding mode you want to use (e.g. following input channels, crossing output, mixing output). The unit features automatic input format detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080p. It also features two mirrored SDI loop outputs so that video can be delivered to two downstream destinations without requiring a separate distribution amplifier.
The MVIO HDDEM-4AUD will pass SD and HD resolution signals, and supports bandwidths up to 1.5 Gb/sec in HD-SDI. The de-embedder provides automatic signal equalization for long cable applications (up to 328' over Belden 1694A). This improves the signal quality and reduces signal loss caused by long distance transmission of the input source. The LED lights indicate the status of input signal and power supply. This de-embedder also supports SNMP and can be real-time managed and monitored via the XIO NET, an optional network management module, via Ethernet. - Automatic signal detection and frame sync processing
- Supports 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf signals
- Audio group to de-embed may be selected via DIP switches
- Automatic signal equalization to enable cable runs up to 328' using Belden 1694A
- Supports hot swapping of connectors
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via Ethernet
- For use in television broadcast and other professional video applications
- Can be mounted in one half-rack-wide space
In the Box Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced Audio De-Embedder with Frame Sync Processing Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO HDDEM-4AUD-FS 4-Channel Balanced Audio De-Embedder with Frame Sync Processing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO HDDEM-4AUD-FS Specs | SDI Input | 1 x BNC female, HD/SD-SDI, 75 ohms
1 x BNC, input reference (PAL/NTSC) | | Maximum Cable Length | 328' (100 m) using Belden 1694A | | Analog Audio Output | 4 x 3-pin terminal block, balanced
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x BNC female, HD/SD-SDI
Impedance: 75 ohms
Level: 800 mV ±5%
Jitter: <0.2 UI (100 kHz) | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/sec), SMPTE 292M (1.485 Gb/sec) | | LED Indicators | 1 x green, signal status
1 x green, power | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Power | 110 ‐ 240 VAC, 60 W | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
