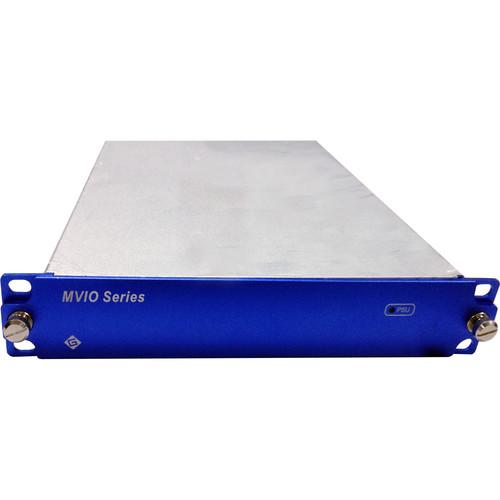

Product description The MVIO HDEMB-2AES SDI 2-Channel AES Audio Embedder from Gra-Vue is a half-rack 1RU standalone embedder which embeds two AES balanced audio source signals into a single HD/SD-SDI stream. It features two identical SDI outputs so that the video with the newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The SDI audio group and channels to which the audio is embedded is user-defined, and may be set using DIP switches on the unit. The embedder features automatic input detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf.
The MVIO HDEMB-2AES provides automatic signal equalization for cable runs up to 328' (Belden 1694A), which can improve the signal quality and reduce the signal loss caused by long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply. The unit supports SNMP and can be real-time managed and monitored by XIO NET, an optional network management module, via Ethernet. - Automatic signal detection
- SDI group to which the audio is embedded may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' using Belden 1694A
- Supports hot swapping of connectors
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via Ethernet
- For use in television broadcast and other professional video applications
- Can be mounted in a half-rack wide space
In the Box Gra-Vue MVIO HDEMB-2AES SDI 2-Channel AES Audio Embedder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO HDEMB-2AES SDI 2-Channel AES Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO HDEMB-2AES Specs | SDI Input | 1 x BNC female, HD/SD-SDI, 75 ohms | | Maximum Cable Length | 328' (100 m) using Belden 1694A | | Digital Audio Input | 4 x 3-pin terminal block, balanced
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x BNC female, HD/SD-SDI
Level: 800 mV ±5%
Jitter: <0.2 UI (100 kHz) | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s) | | LED Indicators | 1 x green, signal status
1 x green, power | | Power | 110 - 240 VAC, 60 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
