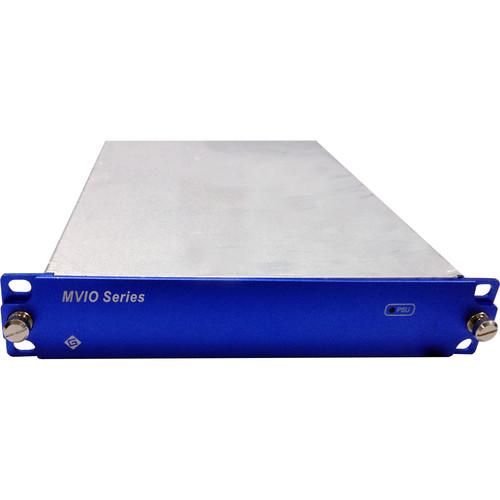

User Manual for Gra-Vue MVIO HDEMB-4AUD SDI 4-Channel Analog Audio Embedder Click to enlarge the picture
Contents of the user manual for the Gra-Vue MVIO HDEMB-4AUD SDI 4-Channel Analog
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue MVIO HDEMB-4AUD SDI 4-Channel Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MVIO HDEMB-4AUD SDI 4-Channel Analog Audio Embedder from Gra-Vue is a half-rack 1RU standalone embedder which embeds two stereo analog audio source signals into a single SDI stream. It features two mirrored SDI outputs so that the video with the newly embedded audio may be delivered to two destinations without requiring a separate distribution amplifier. The SDI audio group and channels to which the audio is embedded is user-defined, and may be set using DIP switches on the unit. The embedder features automatic input detection and supports the following formats: 625i50, 525i60, 720p, 1080i, 1080p, and 1080psf.
The MVIO HDEMB-4AUD-FS provides automatic signal equalization for cable runs up to 328' (Belden 1694A), which can improve the signal quality and reduce the signal loss caused by long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply. The unit supports SNMP and can be real-time managed and monitored by XIO NET, an optional network management module, via Ethernet. - Automatic signal detection
- Audio group to embed to may be selected via DIP switches
- Provides automatic signal equalization to enable cable runs up to 328' using Belden 1694A
- Supports hot swapping of connectors
- Provides LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored in real-time using XIO NET via Ethernet
- For use in television broadcast and other professional video applications
- Can be mounted in one half-rack-wide space
In the Box Gra-Vue MVIO HDEMB-4AUD SDI 4-Channel Analog Audio Embedder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO HDEMB-4AUD SDI 4-Channel Analog Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO HDEMB-4AUD Specs | SDI Input | 1 x BNC female, HD/SD-SDI, 75 ohms | | Maximum Cable Length | 328' (100 m) using Belden 1694A | | Analog Audio Input | 4 x 3-pin terminal block, balanced
Maximum Level: +24 dBu (0 dBFs) | | SDI Output | 2 x BNC female, HD/SD-SDI
Impedance: 75 ohms
Level: 800 mV ±5% | | Supported Formats | SD: 625i50, 525i60
HD: 1080i50/60, 720p50/60, 1080p24/25/30, 1080psf24 | | Supported Standards | SMPTE 259M-C (270 Mb/sec), SMPTE 292M (1.485 Gb/sec) | | LED Indicators | 1 x green, signal status
1 x green, power | | Power | 110 - 240 VAC, 60 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
