User Manual for Gra-Vue MVIO TSG HD SD-SDI Test Signal Generator Click to enlarge the picture
Contents of the user manual for the Gra-Vue MVIO TSG HD SD-SDI Test
- Product category: Video & Audio Signal Generators Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Video & Audio Signal Generators
|
User manual for the Gra-Vue MVIO TSG HD SD-SDI Test contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

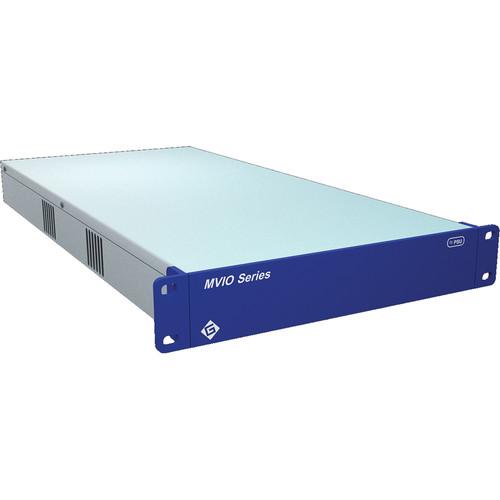

Product description The MVIO TSG HD/SD-SDI Test Signal Generator from Gra-Vue generates a variety of user-defined test patterns and audio tones, encoding them in SD- or HD-SDI at up to 1080p resolution through two outputs. The MVIO TSG is a standalone unit that features a 1RU rackmout design. A built-in Web server with Web GUI enables operation across a local network. - Reference input allows signal to be synchronized to a common source such as a house clock
- Supports three sync modes: internal, external, and global external
- Automatic equalization and reclocking to help minimize signal loss following long cable runs
- Manual horizontal and vertical phase adjustment
- Ethernet controllable with support for SNMP
In the Box Gra-Vue MVIO TSG HD/SD-SDI Test Signal Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO TSG HD SD-SDI Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO TSG Specs | | | Reference Input | Connector: 1 x BNC
Impedance: 75 ohm
Supported Sync Types: Blackburst, PAL and NTSC, tri-level | | SDI Outputs | Connector: 2 x HD/SD-SDI on BNC Impedance: 75 ohm
Level: 800 mV ±5% Jitter: < 0.2 UI at 100 kHz | | Supported Resolutions | 625i50, 576i60, 720P, 1080i, 1080p | | Supported Standards | SIMPTE 259M-C, SMPTE 292M, SMPTE 344M, SMPTE 425 | | Network | 1 x Ethernet on RJ-45 | | | | Operating Temperature | 41 to 77°F / 5 to 25°C | | Power Requirements | 110 to 240 VDC | | Power Consumption | 60 W | | Rack Height | 1 RU | | Dimensions | 8.2 x 17 x 1.9" / 219 x 432 x 48 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 21.968 x 13.543 x 7.402" |
