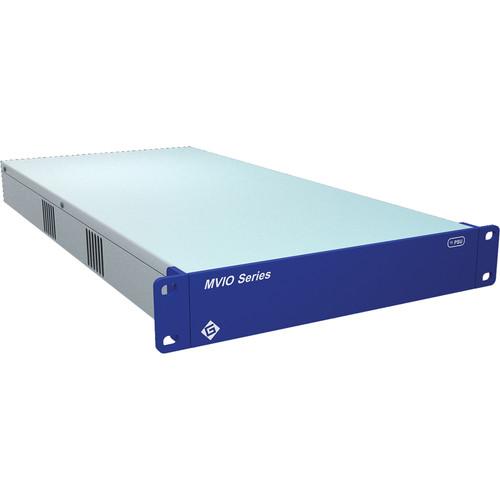

Product description The MVIO VSD-HD 1 x 7 HD/SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking from Gra-Vue is a digital video distribution amplifier. The unit provides HD/SD/ASI signals with reclocking over a maximum distance of 328' using a Belden 1694A cable. It supports HD-SDI signals (SMPTE-292M) and SD-SDI signals (SMPTE 259M) as well as compressed/uncompressed SDI video signals. It features one BNC HD/SD/ASI signal input and seven BNC outputs. The unit's BNC output 1 is a bypass signal output. The unit's internal LED indicates signal status. - One HD/SD video signal input to seven HD/SD video signal outputs
- Support HD: 1.485, 1.485/1.001 Gb/s
- MVIO VSD-HD has one loop through
- Compatible with DVB-ASI signal
- Provides LED lights to indicate signal status
In the Box Gra-Vue MVIO VSD-HD 1 x 7 HD/SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO VSD-HD 1 x 7 HD SD-SDI ASI Digital Video Signal Distribution Amplifier with Reclocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO VSD-HD Specs | Connectors | 1 x BNC, HD/SDI/ASI input
7 x BNC, HD/SDI/ASI output
1 x IEC, power input | | Format | SMPTE 292M 1.485, 1.485/1.001 Gb/s
SMPTE 259M-C; 270 Mb/s
EN50 083-9 DVB-ASI; 270 Mb/s | | Return Loss | > 15 dB up to 270 MHz | | Impedance | 75 Ω | | Signal Level | 800 mV ± 10% | | Overshoot | < 80 mV | | Jitter | < 80 mV | | Maximum Cable Length | 328' (100 m) with Belden 1694A | | Power | 120 - 240 VAC, 50/60 Hz | | Status Indicators | 1 x LED, PSU indicator
1 x LED, internal signal indicator | | Power Consumption | 60 W | | Dimensions (W x D x H) | 8.66 x 16.92 x 1.73" (22 x 43 x 4.4 cm) | | Weight | 14.6 lb (6.6 kg) approximate | | | | Package Weight | 8.35 lb | | Box Dimensions (LxWxH) | 21.968 x 13.858 x 7.559" |
