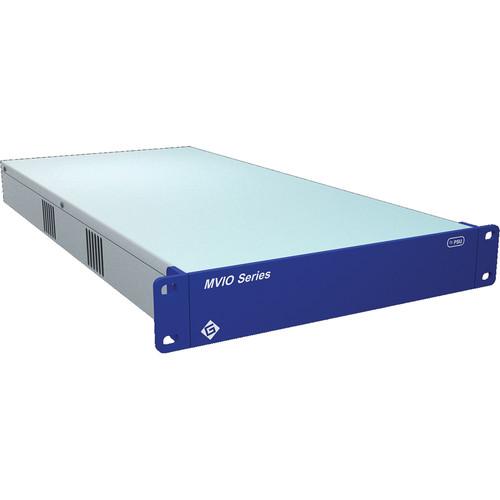

Product description The MVIO VSD-HD-DC HD-SDI to Dual SD-SDI Downconverter from Gra-Vue converts HD-SDI video at up to 1080p resolution down to SD-SDI in PAL or NTSC according to the frame rate. The downcoverted signal is output through two mirrored SD-SDI outputs, plus there is a loop-through output for the original HD-SDI signal. The converter is designed for rackmount installation and is operated remotely via a built-in Web server. - Automatic signal equalization to help support longer cable runs
- Reference input for syncing outputs to a common house clock
- Automatically detects the resolution of the source video
- AFD and manual adjustment to deal with mis-matched aspect ratios, including bar, stretch, crop
- Phase adjustment for horizontal and vertical frequencies
- Built-in Web server supports SNMP
In the Box Gra-Vue MVIO VSD-HD-DC HD-SDI to Dual SD-SDI Downconverter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO VSD-HD-DC HD-SDI to Dual SD-SDI Downconverter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO VSD-HD-DC Specs | | | Input | Connector: 1 x HD-SDI on BNC
Impedance: 75 ohm
Standards: SIMPTE 259M-C, SMPTE 292M, SMPTE 344M, SMPTE 425
Resolutions: 625i, 576i, 720p, 1080i, 1080p | | Outputs | Connector: 1 x HD-SDI loop-out on BNC
Connectors: 2 x SD-SDI on BNC
Impedance: 75 ohm
Resolutions: 625i, 576i
Level: 800 mV ±5%
Jitter: < 0.2 UI at 100 KHz | | Reference | 1 x BNC input | | Network | Not specified by manufacturer | | | | Power Requirements | 110 to 240 VDC | | Power Consumption | 60 W | | Operating Temperature | 41 to 77°F / 5 to 25°C | | Dimensions | 8.6 x 17 x 1.9" / 219 x 432 x 48 mm | | Weight | Not specified by manufacturer |
