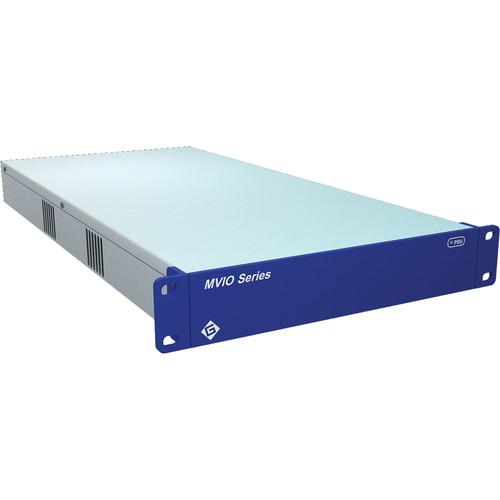

Product description The MVIO VSD-RC 1 x 7 SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking from Gra-Vue is a video signal distribution amplifier which provides SDI video with signal reclocking. It supports compressed or uncompressed SDI video signals.The SD-SDI/ASI distribution amplifier features one BNC input and seven BNC outputs. The first BNC output is a bypass signal output. The unit's internal LED indicates signal status. - One SD-SDI video signal input to seven SD-SDI video signal outputs
- MVIO VSD-RC has one loop through
- Provides LED lights indicate signal status
In the Box Gra-Vue MVIO VSD-RC 1 x 7 SD-SDI/ASI Digital Video Signal Distribution Amplifier with Reclocking IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO VSD-RC 1 x 7 SD-SDI ASI Digital Video Signal Distribution Amplifier with Reclocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO VSD-RC Specs | Connectors | 1 x BNC, SD-SDI/ASI input
7 x BNC, SD-SDI/ASI output
1 x IEC power input | | Format | SMPTE 259M-C; 270 Mbps
EN50 083-9 DVB-ASI; 270 Mbps | | Return Loss | ﹥15 dB up to 270 MHz | | Impedance | 75 Ω | | Signal Level | 800 mV ± 10% | | Overshoot | < 80 mV | | Jitter | < 80 mV | | Rise / Fall time | < 1500 ps
Rise and Fall time difference: < 500 ps | | DC Offset | 0 V±500 mV | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Maximum Cable Length | 656.17' (200.00 m) with Belden 8281 | | Status Indicators | 1 x PSU LED indicator | | Power | 120 - 240 VAC, 50/60 Hz | | Power Consumption | 60 W | | Dimensions (W x D x H) | 8.66 x 16.92 x 1.73" (22 x 43 x 4.4 cm) | | Weight | 14.6 lb (6.6 kg) approximate |
