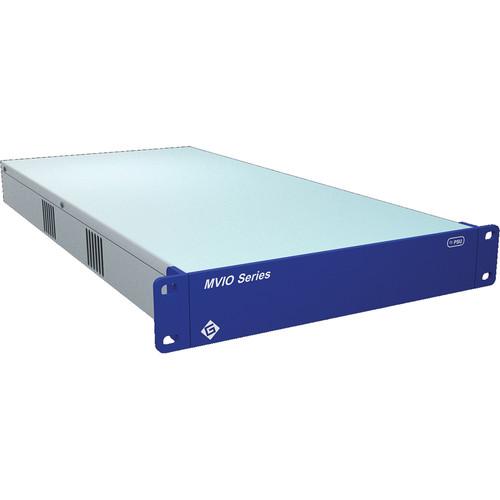

User Manual for Gra-Vue MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter Click to enlarge the picture
Contents of the user manual for the Gra-Vue MVIO XC-2AES 2 Digital Audio
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue MVIO XC-2AES 2 Digital Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter from Gra-Vue upconverts or down converts one SD/HD-SDI signal to output two HD/SD-SDI signals and a loop-through SD/HD-SDI signal. The module features an HD/SD self-adaptive input and can embed 2 digital audio channels into the outputs. This module can amplify and de-noise output signals and supports AFD (Active Format Description).The video connectors are BNC while the audio input connectors are 3-pin balanced. Its filter de-interlacing and graphic enhancing allow for high-quality video graphics. The module supports manual parameter adjustment with a dial switch on the board side. - One SD/HD-SDI video signal self-adaptive input
- Through up or down conversion, outputs 4 HD/SD-SDI signals
- Outputs two loop-through SD/HD-SDI signals
- Supports two embedded digital audio outputs
- Graphic enhancing eliminates noise from video graphics
- Both input and output are available on PAL/NTSC
- Supports HD/SD-SDI signal of embedded audio
- Supports AFD (Active Format Description)
- By de-interlacing filter on video, the module can output video graphics of high-quality
In the Box Gra-Vue MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO XC-2AES 2 Digital Audio Embedded HD-SD Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO XC-2AES Specs | | | Input Connector | 1 x SD/HD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 25i
SMPTE 29M; 1.485 Gb/s; 1080i, 720p | | | | Output Connector | 1 x SD/HD-SDI，BNC
2 x HD/SD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 292M; 1.485 Gb/s; 1080i, 720p | | | | Output Connector | 2 x 3-pin, balance | | Impedance | 110 Ω | | Format | AES3 | | Output Level | 3.5 Vpp ± 10% | | Power Consumption | 60 W | | Dimensions | 8.66 x 16.92 x 1.73" (220 × 430 × 44 mm) |
