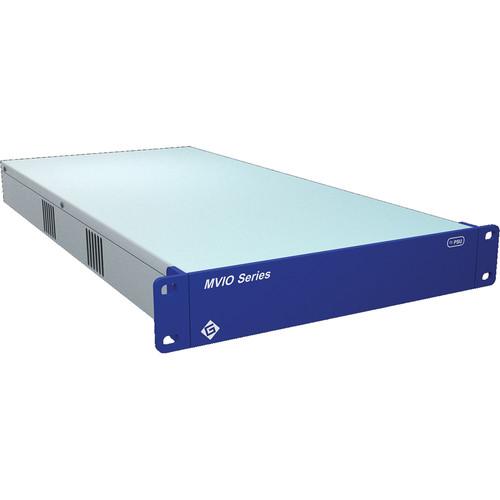

Product description The MVIO XC-4AUD 4 Analog Audio Embedded HD-SD Cross Converter from Gra-Vue upconverts or down converts one SD/HD-SDI signal to output two HD/SD-SDI signals and loop-through SD/HD-SDI signals. The module features an HD/SD self-adaptive input and can embed 4 analog audio channels into the outputs. This module can amplify and de-noise output signals and supports AFD (Active Format Description). The video connectors are BNC while the audio input connectors are 3-pin balanced. Its filter de-interlacing and graphic enhancing allow for high-quality video graphics. The module supports manual parameter adjustment with a dial switch on the board side. - One SD/HD-SDI video signal self-adaptive input
- Through up or down conversion, outputs 4 HD/SD-SDI signals
- Outputs two loop-through SD/HD-SDI signals
- Supports 4 embedded analog audio outputs
- Graphic enhancing eliminates noise from the video graphics
- Both input and output are available on PAL/NTSC
- Supports HD/SD-SDI signal of embedded audio
- Supports AFD (Active Format Description)
- By de-interlacing filter on video, it can output video graphics of high-quality
In the Box Gra-Vue MVIO XC-4AUD 4 Analog Audio Embedded HD-SD Cross Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO XC-4AUD 4 Analog Audio Embedded HD-SD Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO XC-4AUD Specs | | | Input Connector | 1 x SD/HD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 25i
SMPTE 29M; 1.485 Gb/s; 1080i, 720p | | | | Output Connector | 1 x SD/HD-SDI，BNC
2 x HD/SD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 292M; 1.485 Gb/s; 1080i, 720p | | | | Output Connector | 4 x 3-pin, balance | | Impedance | 600 Ω | | Maximum Output Level | +24 dBu (0 dbFS) | | Amplitude | <±0.04 dB @ 20 Hz up to 20 kHz | | Signal to Noise Ratio | >80 dB | | Output THD+N at 1 kHz | 90 dB | | Power Consumption | 60 W | | Dimensions | 8.66 x 16.92 x 1.73" (220 × 430 × 44 mm) |
