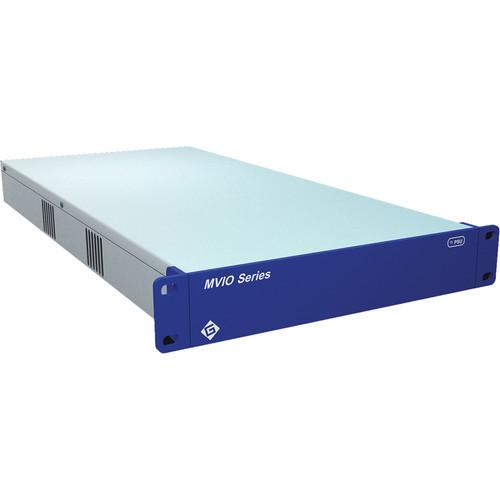

Product description The MVIO XC HD-SD Cross Converter from Gra-Vue allows you to convert signals between HD and SD resolutions. It features a self-adaptive SD/HD-SDI input and offers four HD/SD-SDI outputs and two SD/HD-SDI loop-through outputs connections. It supports digital signal input with embedded audio and can also amplify the output signal (optional). This cross converter supports AFD (Active Format Description). The module uses a de-interlacing filter for video processing. It also supports manual parameter adjustment with a dial switch when installed in a rack. - One SD/HD-SDI video signal self-adaptive input
- Supports through, up, or down conversion
- Features 4 HD/SD-SDI and two loop-through SD/HD-SDI outputs
- Offers support for both PAL and NTSC signal formats
- Supports HD/SD-SDI signal with embedded audio
- Supports AFD (Active Format Description)
- De-interlaces filter on video
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVIO XC HD-SD Cross Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO XC Specs | | | Input Connector | 1 x SD/HD-SDI, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 29M; 1.485 Gb/s; 1080i, 720p | | Return Loss | > 15 dB, 5 MHz up to 1.5 GHz | | Maximum Cable Length | 820' (250 m) (Belden 1694A) | | | | Output Connector | 4 x HD/SD-SDI, BNC (Scaled output)
2 x HD/SD-SDI, BNC (Loop output) | | Impedance | 75 Ω | | Format | SMPTE 259M-C; 270 Mb/s; 625i, 525i
SMPTE 292M; 1.485 Gb/s; 1080i, 720p | | Return Loss | > 15 dB, 5 MHz up to 1.5 GHz | | Eye Pattern Characteristics | 800 mV ± 10% | | Jitter | < 0.2 UI | | | | Power Consumption | 60 W | | Dimensions | 8.6 x 16.9 x 1.7" (22.0 x 43.0 x 4.4 cm) |
