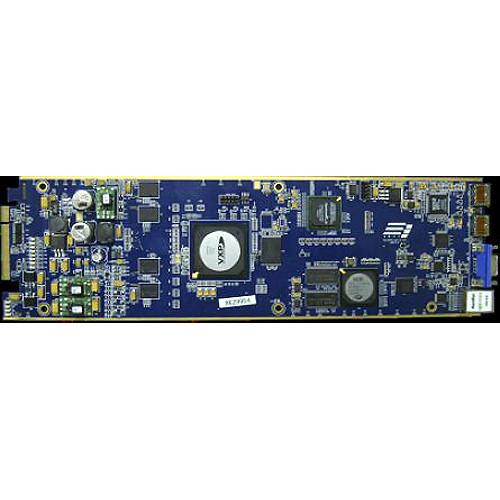

Product description The Gra-Vue MVS Output Module is designed to work with the MVS Series Multi-View Display System. It has a built-in web service. It features HDMI and HDSDI dual output interfaces. The resolution supported for HDMI is up to 1920 x 1080p 60 Hz and the format of HDSDI is up to 1080p. - High-quality dual outputs with flexible and individual configuration on each output
- Flexible output options include 4:3, 16:9, and customized aspect ratio
- Signal can be displayed on any output flexibly and conveniently by configuration on the Web server
- 2-channel HD/SD-SDI audio signals, 8-channel HDMI audio signals or 1-channel analog audio can be embedded into the HDMI output signal
- Video and embedded audio signals of the HDSDI output and the HDMI output are the same
In the Box Gra-Vue MVS Output Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue MVS Output Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVS-DWUXGA Specs | Signal Input | Interface:
1 HDMI, type A
Format:
720p 50/59.94/60;
1080i 50/59.94/60;
1080p 23.98/24/25/29.97/30
1080p 50/59.94/60;
Supports HDMI signals with embedded audio and indicates 4 audio channels of Group1 and HDCP protocol | | Outputs | HDMI Output
Interface:
1 HDMI, type A
Resolutions:
1024 x 768, 1280 x 720, 1280 x 768
1280 x 1024, 1360 x 768, 1400 x 1050
1600 x 1200, 1680 x 1050, 1920 x 1080
Frequency:
50/60 Hz HDSDI Output Interface:
1 HD/SD-SDI, BNCImpedance:
75 ΩFormat:
SMPTE295M (525/625 TVL)
SMPTE 292M; 1.485, 1.485/1.001 Gb/s
SMPTE-425; 2.970 Gb/s
625i, 525i
720p 50/60;
1080i 50/60;
1080p 50/60;Return Loss:
15 dB, 5 MHz to 1.5 GHz | | Control | Interface:
1 x RJ45
Type:
10/100/1000M auto-adapting | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 11.0 x 7.0 x 3.0" |
