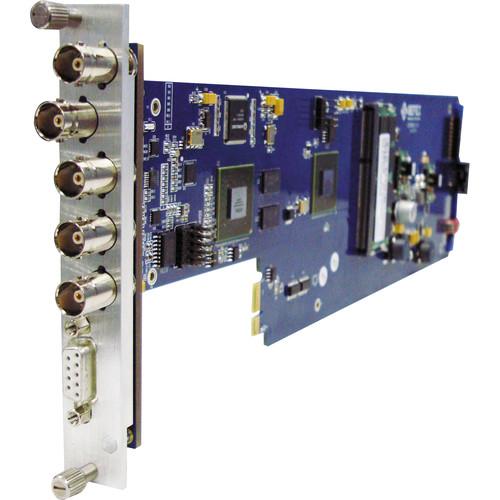

Product description The OPG 9090DLY-HD20S HD/SD-SDI Signal Delay Device from Gra-Vue is a module board for use in an Open Gear (OPG) compatible frame, and enables delaying an HD-SDI signal up to 20 seconds. Common applications for signal delay include live production scenarios where the audio is out of sync or to seamlessly mix footage being captured locally with a satellite feed. The original un-delayed signal is looped back out along with two mirrored HD/SD-SDI outputs of the delayed signal. - Supports SD-SDI and HD-SDI along with embedded audio
- Internal 20-bit digital processing
- The delay can be adjusted frame-by-frame
- Reference input for syncing to an external source such as a house clock
- Border dial switch to adjust parameters
- Audio mute button eliminates embedded audio if desired
- RS-232 port for remote operation
- Supports SNMP Web protocol
In the Box Gra-Vue OPG 9090DLY-HD20S HD/SD-SDI Signal Delay Device for Open Gear Frame Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue OPG 9090DLY-HD20S HD SD-SDI Signal Delay Device for Open Gear Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue OPG 9090DLY-HD20S Specs | | | Input | 1 x HD/SD-SDI on BNC
Impedance: 75 ohm | | Outputs | 1 x HD/SD-SDI loop-out
2 x HD/SD-SDI on BNC
Impedance: 75 ohm
Level: 800 mV ±5%
Jitter: < 0.2 UI at 100 KHz | | Supported Standards | SMPTE 259M-C (270 Mbp/s), SMPTE 292M (1.485 Gb/s) | | Supported Resolutions | 525i
625i
720p
1080i: 50, 59.94, 60
1080p: 23.98, 24, 25, 29.97 | | Reference | 1 x Composite BNC input
Impedance: 75 ohm | | Network | 1 x RS-232 on DB-9 female | | | | Maximum Delay | 20 seconds for HD-SDI | | | | Operating Temperature | 41 to 77°F / 5 to 25°C | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.2 x 9.0 x 4.2" |
