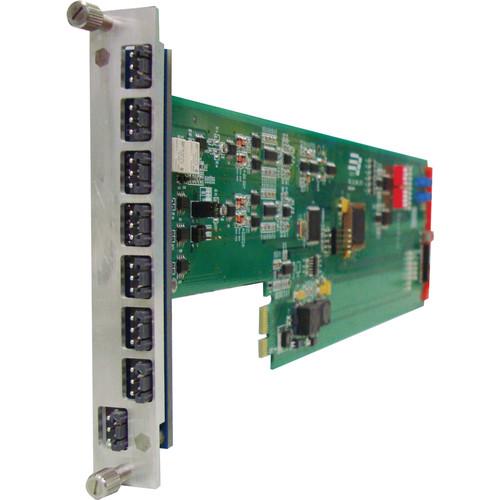

Product description The Gra-Vue Phoenix 3-Pin 1 x 7 Audio Distribution Amplifier, in a 1RU version, includes a Phoenix 3-pin 1 input / 7 output analog audio DA card and 1RU interface panel. The interface panel installs the DA card in a rack in a horizontal position.
Signal gain is adjustable from -6dB to +27dB via a dip switch on the front side of the card. Gain and other adjustments can also be made using an optional Gra-Vue XIO NET Network Management Module via an Ethernet-connected PC. An integrated independent output driver provides output isolation and crosstalk suppression, and automatic signal equalization reduces signal loss over long distance transmissions. LED indicators display input signal and power supply status. - Features
-
- Phoenix 3-pin balanced 1 input / 7 output analog audio DA card
- 1RU interface panel installs the DA card horizontally
- Signal gain adjustable from -6dB to +27dB via dip switch
- Real-time monitoring and adjustments by dip switch or XIO NET module via Ethernet-connected PC
- Hot swappable with other cards
- Supports Simple Network Management Protocol (SNMP)
In the Box Gra-Vue Phoenix 3-Pin 1 x 7 Audio Distribution Amplifier (1RU) 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue Phoenix 3-Pin 1 x 7 Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9000ADA-1U Specs | Input | 1x Phoenix 3-pin balanced connector | | Output | 7x Phoenix 3-pin balanced connectors | | Gain | -6 dB to +27 dB | | Impedance | 600 ohms | | Frequency Response | <±0.05 dB, 20 Hz - 20 kHz | | Power Consumption | 2-3 W |
