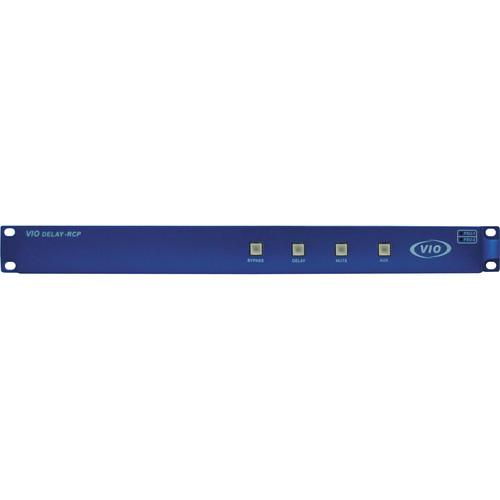

User Manual for Gra-Vue Remote Control Panel for VIO Delay-X XL Click to enlarge the picture
Contents of the user manual for the Gra-Vue Remote Control Panel for VIO
- Product category: Accessories Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Accessories
|
User manual for the Gra-Vue Remote Control Panel for VIO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The 1RU Remote Control Panel for VIO Delay-X/XL (Extension B) from Gra-Vue is a remote control unit which can control up to two Delay-X or Delay-XL units simultaneously, enabling synchronized operation of a master delay line and a slave delay line. This remote control panel features two 2.2" full-color LCD displays, dual power input, and voice & light alarms. The LCD on the left is used to display parameter settings and works with the wheel, whereas the one on the right is used when the Delay-X host is configured with the MVS option to display all channels of the five-channel multiviewer in real time: the control panel is equipped with five keys, each of which features a mini LED screen which can display one of the five output channels. Note: The MVS option is required on host unit in order to display the five-channel multiviewer - Remotely controls two Delay-X or Delay-XL units
- Five keys with mini LED screens display the host's five output channels
- Linkage control mode for controlling two units
- Dynamic display menu control
- HD video display switch button, displays five video signals in real time
- Ethernet interface for upgrading software
In the Box Gra-Vue Remote Control Panel for VIO Delay-X/XL (Extension B, 1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue Remote Control Panel for VIO Delay-X XL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO DELAY-X-RCP-2 Specs | Connectors | 2 x DB-26, RS-485 protocol
2 x Power in
1 x RJ-45, Ethernet
1 x Aux-in | | Display | 2 x 2.2" 376 x 240 LCD full color displays | | Controls | 5 x Button with mini LED screen
1 x Wheel controller | | Power Consumption | 5 W | | Dimensions | 17.3 x 4.5 x 1.7" (44.0 x 15.0 x 4.4 cm) | | Weight | 3.3 lb (1.5 kg) |
