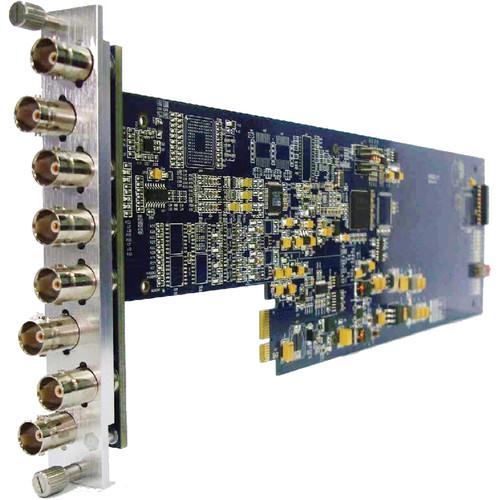

User Manual for Gra-Vue SD-SDI to Composite Converter with Audio De-Embedding Click to enlarge the picture
Contents of the user manual for the Gra-Vue SD-SDI to Composite Converter with
- Product category: Signal Converters Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Signal Converters
|
User manual for the Gra-Vue SD-SDI to Composite Converter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The SD-SDI to Composite Converter with Audio De-Embedding is an expansion board the requires the 3RU version of the XIO-series rackmount frame. The card takes a single NTSC or PAL SD-SDI input and converts to two composite analog outputs. So the signal can pass to downstream devices without requiring a separate distribution amplifier, the SDI input is also looped back out. Along with video, this converter will also de-embed two stereo pairs (4-channels) of analog audio from the SDI stream. - Automatic signal equalization enables incoming SDI cable runs of up to 656' when using Belden 1694A cable
- Provided LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be managed and monitored remotely across a network using XIO NET
- Designed for use in broadcasting systems, studios, and other professional video fields
In the Box Gra-Vue SD-SDI to Composite Converter with Audio De-Embedding (3RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue SD-SDI to Composite Converter with Audio De-Embedding in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9020ENC-4AUD-3U Specs | SDI Video Input | Connector: 1 x SD-SDI on BNC
Impedance: 75 ohm
Format: NTSC, PAL; 525i60, 625i50; SMPTE 259M-C; 270Mb/s
Maximum Cable Length: <656' (200 m) using Belden 1694A cable | | Reference Input | None | | Audio Connectors | Output:
Connector: 4 x 3-pin balanced terminal block connectors
Impedance: 600 ohm
Maximum Level: +24 dBu (0 dBFs) | | SDI Video Output | Connector: 1 x SD-SDI on BNC
Impedance: 75 ohm
Format: NTSC, PAL; 525i60, 625i50; SMPTE 259M-C; 270Mb/s
Level: 800 mV ±5%
Jitter: <0.2 UI (100 kHz) | | Analog Video Output | Connector: 2 x Composite on BNC
Impedance: 75 ohm
Format: NTSC, PAL; 525i60, 625i50 | | Status Indicator | Signal status indicator, power indicator -- indicated by illuminating or extinguishing a green LED |
