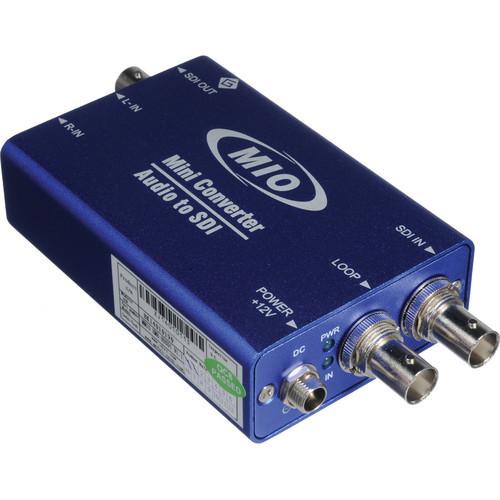

User Manual for Gra-Vue SDI Stereo Analog Audio Embedder Click to enlarge the picture
Contents of the user manual for the Gra-Vue SDI Stereo Analog Audio Embedder
- Product category: Embedders & De-Embedders Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Embedders & De-Embedders
|
User manual for the Gra-Vue SDI Stereo Analog Audio Embedder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The MIO EMB-HDSDI SDI Stereo Analog Audio Embedder form Gra-Vue is designed to embed an analog audio stereo signal into a single SDI input signal and output 2 identical SDI signals with the embedded audio. There is also a loop SDI output that outputs the original SDI signal without the additional embedded audio channels. It supports SD-SDI, HD-SDI, and 3G-SDI for both input and outputs. Also, digital signals with embedded or non-embedded audio can be used as input signals.
The MIO EMB-HDSDI supplies a real-time input signal status indicator and a power indicator which makes it more convenient to monitor. Additionally, the embedded audio channel can be selected with a DIP Switch. - 1 analog audio stereo signal embedded into a single serial digital signal
- Inputs and outputs for SD-SDI, HD-SDI, and 3G-SDI
- Supports self-definition embedded audio channel via the DIP switch
- All audio interfaces adopt 3-pin connectors and balanced inputs
- Real-time input signal status indicator and power indicator
- Supports bypass function with power on
- Easy to install, and can be widely used in broadcasting systems, studios, and other professional audio fields
- Convert one channel digital video and two channel analog audio to one embedded SDI effectively
In the Box Gra-Vue SDI Stereo Analog Audio Embedder MIO POWER-12V1A-NA Power Adapter (U.S.A) xycfdccqewrzsz Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue SDI Stereo Analog Audio Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MMIO EMB-HDSDI Specs | | | Input | 1 x 3G / HD / SD-SDI, BNC | | Impedance | 75 Ω | | Resolution | SD: 525i 60, 625i 50
HD: 720p 50 / 60
1080p 50 / 60, 1080p 24 / 25 / 30 | | | | Outputs | 2 x 3G / HD / SD-SDI, BNC
1 x 3G / HD / SD-SDI Loop, BNC | | Impedance | 75 Ω | | Level | 800 mV, ±10% | | Jitter | <0.2 UI 100 kHz | | | | Inputs | 2 x 3-pin balanced | | Impedance | 600 Ω | | | | Power Consumption | 12 VDC, 1 A | | Dimensions | 5.0 x 4.0 x 1.1" (123.0 x 92.0 x 29.0 mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.5 x 4.5 x 3.0" |
