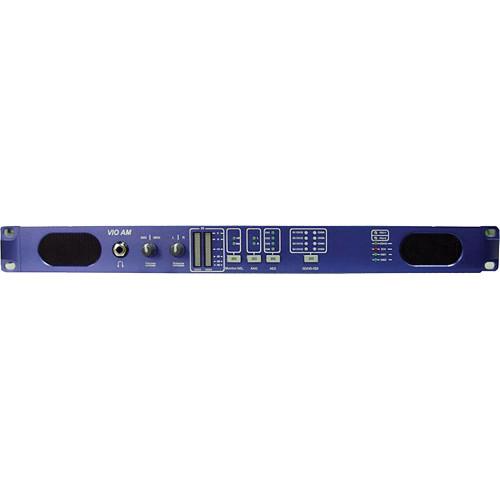

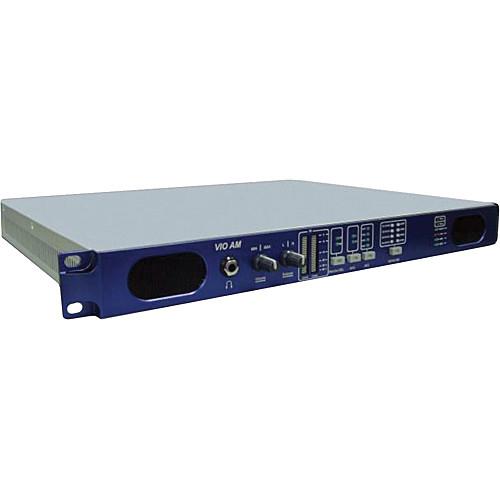

Product description The Gra-Vue VIO AM-HD Analog Audio/AED/SDI Embedded Audio Monitor is designed for simultaneously monitoring SDI embedded audio, analog audio stereo, and AES signals with two built-in independent speakers.The VIO AM Embedded Audio Monitor is suitable for in-studio audio monitoring. The speakers can be configured to monitor audio channels from single or multiple audio sources. For example, one speaker can be set to monitor one channel of AES and another can be set to monitor one channel of analog audio. - Monitors various kinds of audio signals like analog audio, AES, and SDI embedded audio
- Supports up to 16 channels for SDI embedded audio, one analog audio stereo signal, and two AES
- Front panel includes headphone output with adjustable volume and L/R balance control knobs
- Set the audio source to monitor manually using buttons on the front panel
- Display audio PPM directly on the front panel
- Real-time EDH detection and alarm displayed by LED indicator
- 1U chassis design with redundant power and fan
In the Box Gra-Vue VIO AM-HD Analog Audio/AED/SDI Embedded Audio Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO AM-HD Analog Audio AED SDI Embedded Audio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO AM-HD Specs | | | Signal | 1 x HD/SD-SDI, BNC, 75 Ω | | Standard | SMPTE 292M: 1.5 Gb/s
SMPTE 259M: 270 Mb/s | | Embedded Audio | Up to 16 channels | | Return Loss | >15 dB video signal output | | | | Signal | 3 x HD/SD-SDI, BNC, 75 Ω (2 HD/SD-SDI outputs1 of 2 for loop-out without power, 1 HD/SD-SDI loop) | | Standard | SMPTE 292M: 1.5 Gb/s
SMPTE 259M: 270 Mb/s | | | | Digital | Interface: 2 x AES, BNC, unbalanced | | Analog | Interface: 1 x audio stereo, 3 pin, balanced | | Maximum Level | +24 dBu | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
