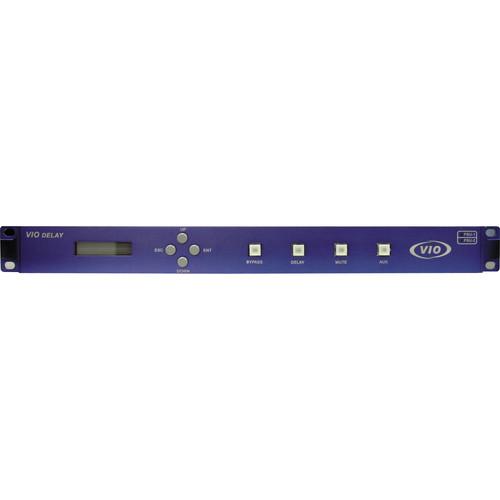

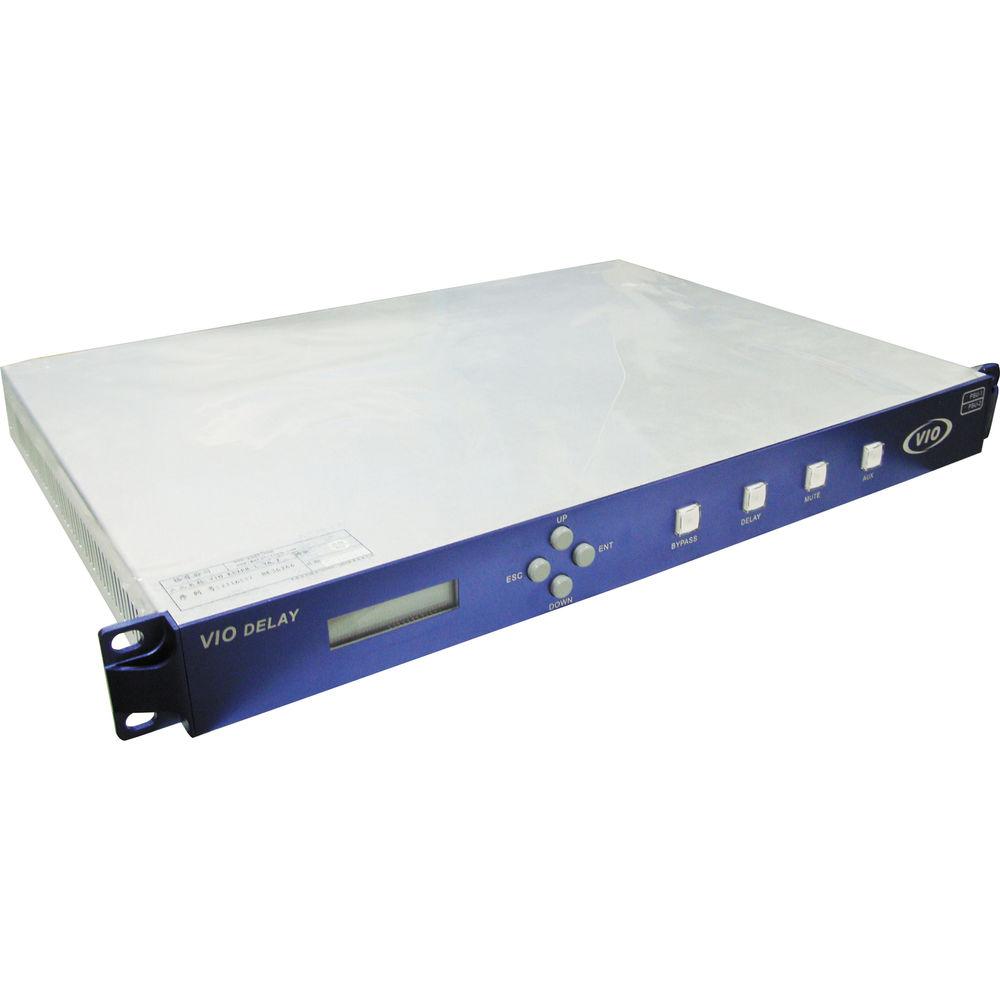

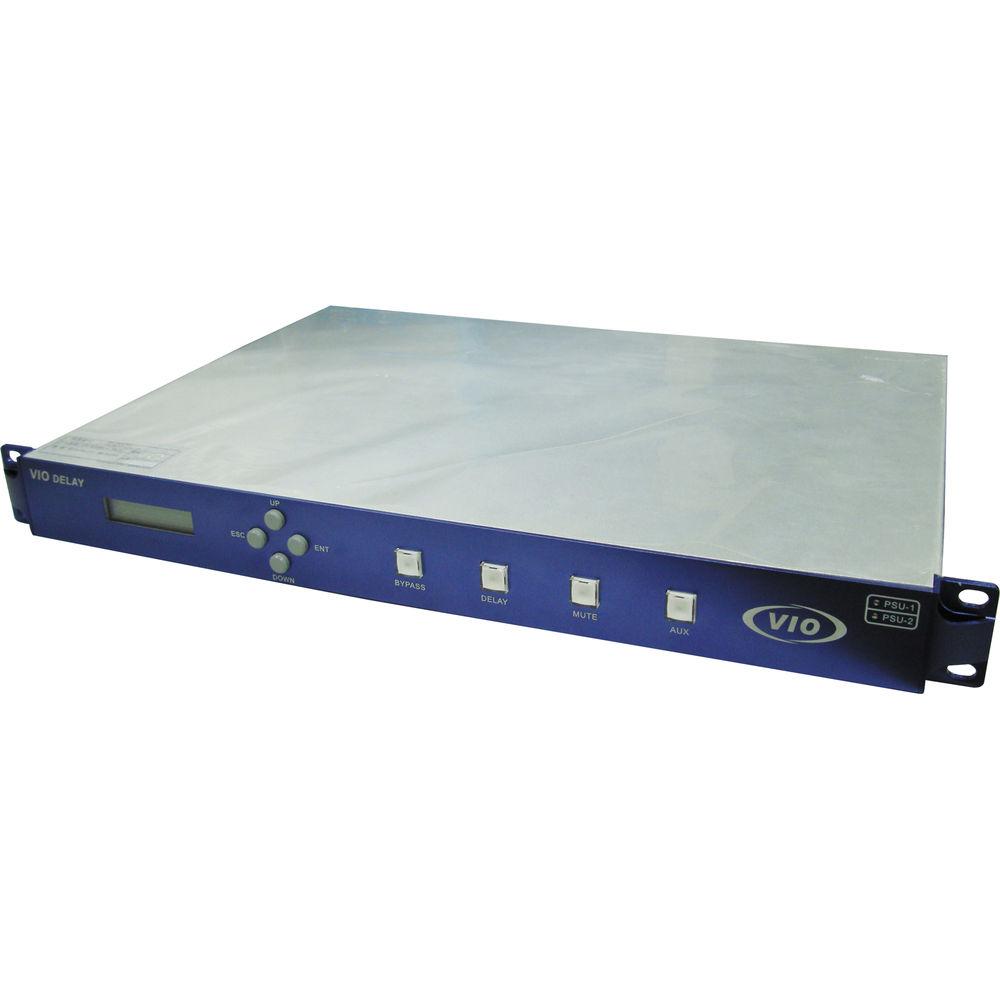

Product description The 1RU VIO DELAY-XL-HD180s 3G/HD/SD-SDI Solid Delay Line Unit from Gra-Vue is an audio & video signal-delay unit which provides a delay time of 180 seconds for HD-SDI signals, and 900 seconds for SD-SDI signals. This delay unit also supports embedment and de-embedment of four analog audio channels, as well as analog / digital PGM audio and two-channel monitor audio output. A built-in web-server allows you to edit clips or configure the device from a WEB UI, and an optional internal digital audio (AES) module enables digital audio in/out. - Maximum delay time up to 180 seconds for HD-SDI and 900 seconds for SD-SDI
- FPGA and DSP processing technology
- Adjust delay time frame by frame
- Supports H/V phase adjustment
- Front panel LCD features count-down timer display
- Program loop-out when power off
- 1RU chassis structure, redundant power supplies
- Supports embedment and de-embedment of four analog audio channels
In the Box Gra-Vue VIO DELAY-XL-HD180s 3G/HD/SD-SDI Solid Delay Line Unit (180 sec HD signal, 1RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO DELAY-XL-HD180s 3G HD SD-SDI Solid Delay Line Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

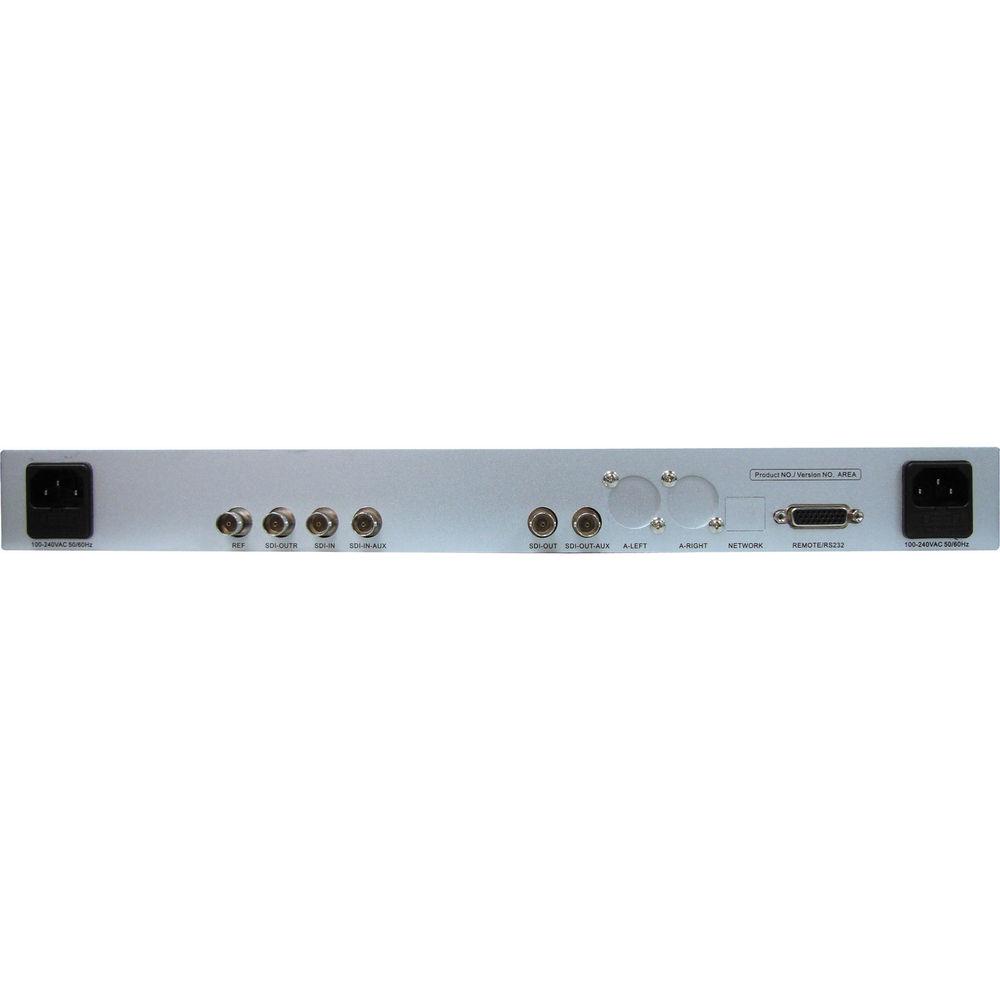

Technical parametersGra-Vue VIO DELAY-XL-HD180S-AUD Specs | Input | 2 x BNC, HD/SD-SDI video input 75 ohms
1 x BNC, SD-SDI, reference input
4 x Mini XLR, analog audio input
2 x Power input | | Output | 4 x BNC, HD/SD-SDI video output 75 ohms
4 x Mini XLR, analog audio output | | Video Formats | SMPTE 259M-C: 270 Mb/s 625i50 / 525i59.94
SMPTE 292M: 1.485 Gb/s
720p50 / 720p59.94 / 720p60 / 1080i50 / 1080i59.94 / 1080i60 | | Delay | 180 HD delay time
900 SD delay time | | Max Amplitude | > 450 mV | | Maximum Cable Length | HD: < 328' (100 m) Belden 1694A
SD: < 656' (200 m) Belden 1694A | | Reference Input | PAL/NTSC/Tri-Level | | Audio Impedance | Analog Audio: 600 ohms
AES: 110 ohms | | Control Interface | 2 x RJ45, 10/100/1000 M network
1 x RS-232, remote | | Power Consumption | 2 x 275 W | | Dimensions | 17.3 x 15.7 x 1.7" (44.0 x 40.0 x 4.4 cm) | | Weight | 11.0 lb (5.0 kg) | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 24.25 x 24.2 x 7.75" |
