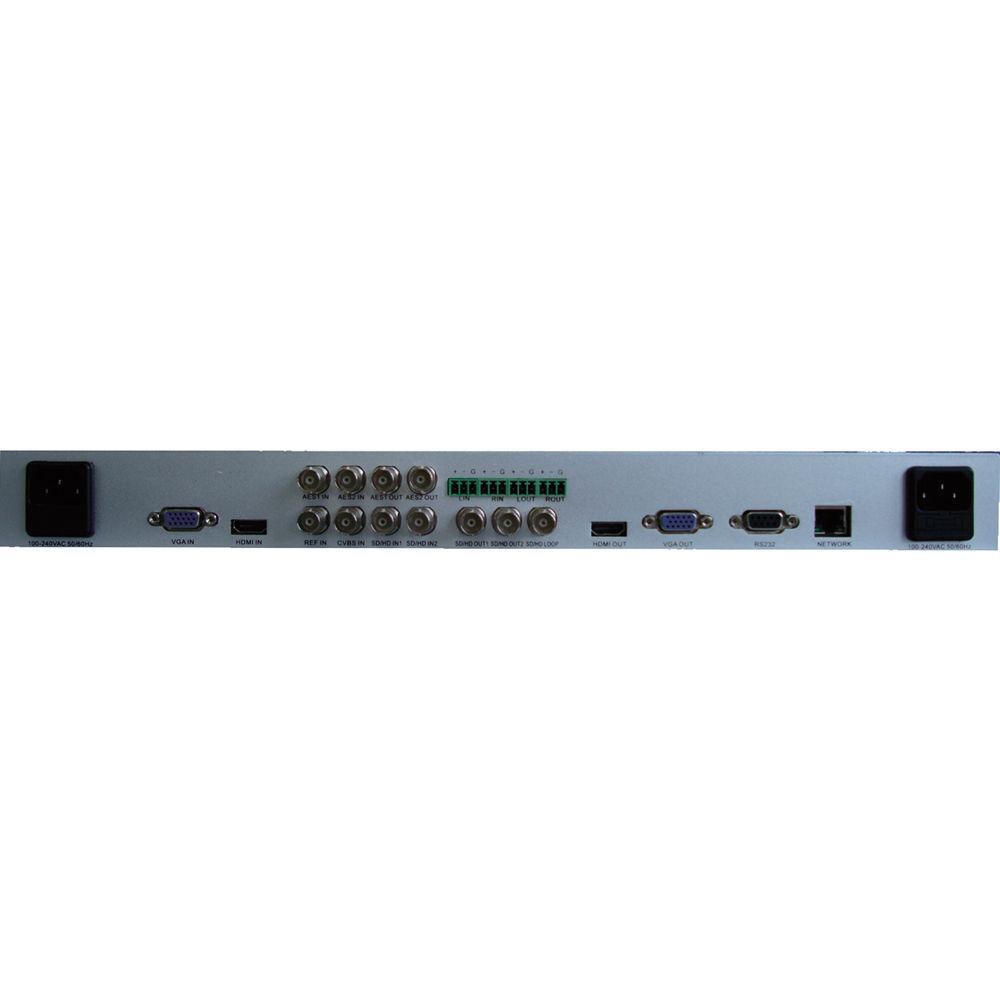

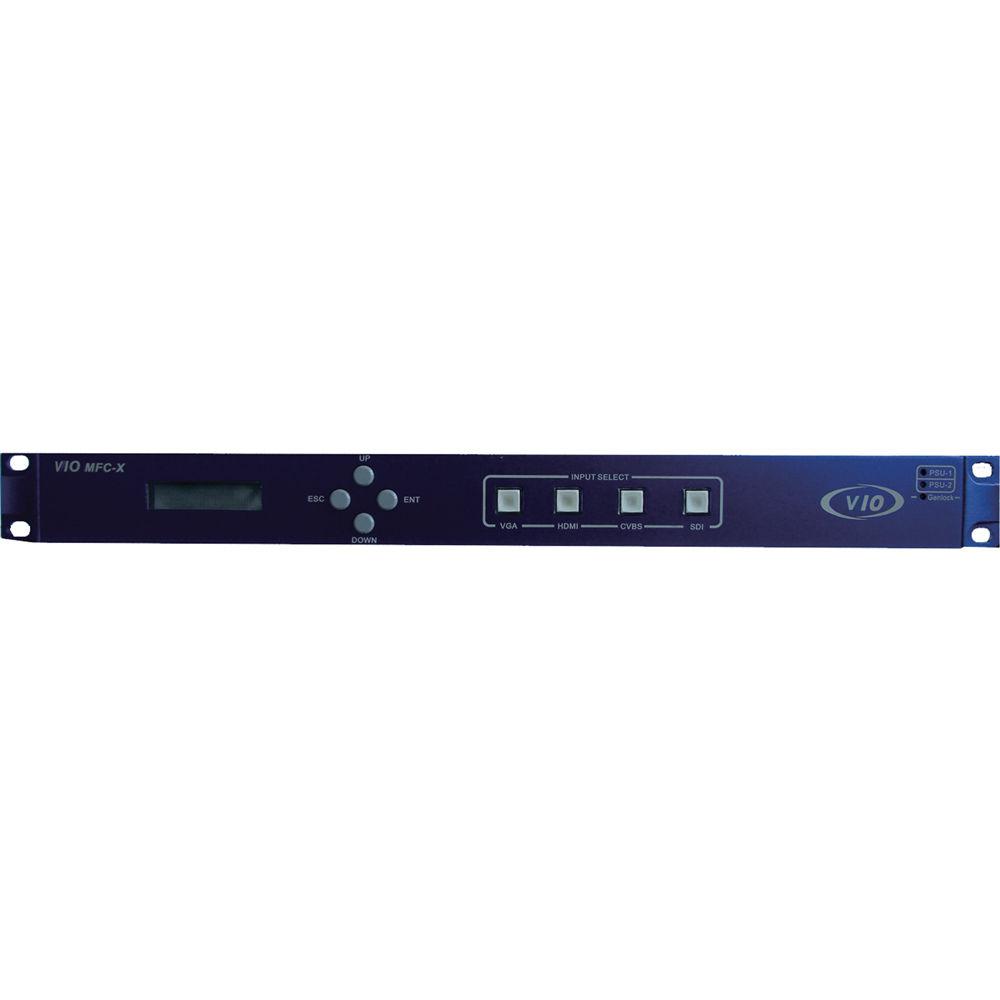

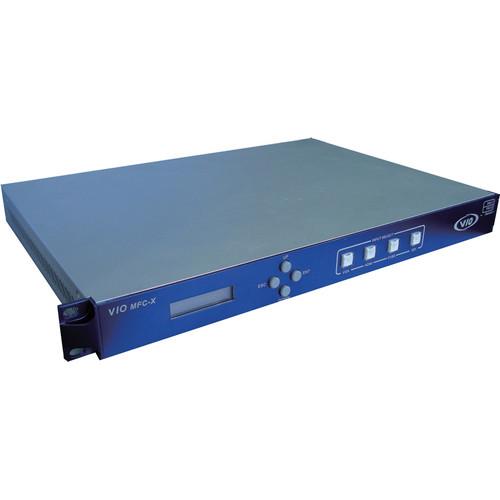

Product description The Gra-Vue VIO MFC-X Universal Multi-Format Converter is based on the 1RU chassis and acts as a bridge between broadcasting and IT areas. This converter features an LCD menu, control button, and LED indication on the front panel. CVBS output and audio input/output are sold separately. - Support various format for VGA and DVI (HDMI) input. Up to 1920 x 1080 for DVI (HDMI) input and 1600 x 1200 for VGA input
- Besides inner sync, genlock with full phasing control for V-phase and H-phase locks HD/SD-SDI output to black burst
- For up/down conversion, adopt AFD auto-sensing or manual setting (Crop/Bar/Stretch)
- Magnify the selected image area though the Web server. Support moving and adjusting the magnified area pixel by pixel
- 4 preset layouts for all parameter settings
- Provide flexible adjustment for luminance, saturation, contrast, detail, noise reduction
In the Box Gra-Vue VIO MFC-X Universal Multi-Format Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO MFC-X Universal Multi-Format Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO MFC-X Specs | | | VGA | Connector: DB15 Female
Resolution: 640 x 480/60/75; 800 x 600/60/75; 1024 x 768/60/75; 1152 x 864/60/75; 1280 x 768/60; 1280 x 800/60; 1280 x 960/60; 1280 x 1024/60; 1360 x 768/60; 1440 x 900/60; 1600 x 900/60; 1600 x 1200/60 | | HDMI | Connector: DB24 female
Resolution: 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 30/29.97/25/24/23.98; 1080p 50/59.94/60; 800 x 600 x 60; 1024 x 768 x 60; 1280 x 720 x 50/60; 1280 x 768 x 60; 1280 x 800 x 60; 1280 x 960 x 60; 1280 x 1024 x 60; 1366 x 768 x60; 1920 x 1080 x 60/50 | | SD & HD | Connector: BNC 75 Ω
Format: SMPTE 259M-C 270 Mb/s; SMPTE-292M 1.485 Gb/s; SMPTE-425 2.970 Gb/s
SD: 625i 50; 525i 60
HD: 720p 50/59.94/60; 1080i 50/59.94/60; 1080p 30/29.97/25/24/23.98; 1080p 50/59.94/60 | | Analog Video | Connector: BNC 75 Ω
Format: SMPTE 259M-C 270 Mb/s 625i 50 | | HD/SD-SDI | Connector: BNC 75 Ω
Format: SMPTE 292M, 1.485 Gb/s; SMPTE 259M-C 270 Mb/s 625i 50, 525i 59.94,720p 50/59.94/60; 1080i 50/59.94/60,1080p 25/30
Return loss:>15 dB
Signal Level: 800 mV ± 10%
Overshoot:<80 mv
Jitter:<0.2 UI
Rise and fall time:<500 ps
DC offset: 0 V ± 500 mV | | | | VGA | Connector: DB15 Female
Resolution: 800 x 600/60p; 1024 x 768/60p; 1280 x 800/60p; 1280 x 960/60p; 1280 x 1024/60p; 1360 x 768/60p | | HDMI | Connector: DB24 female
Resolution: 720 x 576/60p; 800 x 600/60p; 1024 x 768/60p; 1280 x 720/60p; 1280 x 768/60p; 1280 x 1024/60p; 1360 x 768/60p; 1400 x 1050/60p; 1600 x 1200/60p; 1920 x 1080/50p; 1920 x 1080/60p | | Genlock | 1xBB In, BNC
SMPTE 259M-C 270 Mb/s 625i 50 | | Control Interface | 1 x RJ-45 10/100/1000M auto-adapting | | Power | 2 x 120 W
100 to 256 VAC
50 to 60 Hz | | Dimensions | 17.3 x 19.0 x 1.7" (440.0 × 483.0 × 45.0 mm) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
