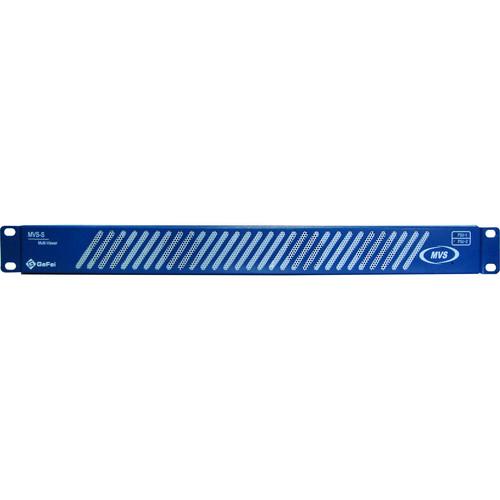

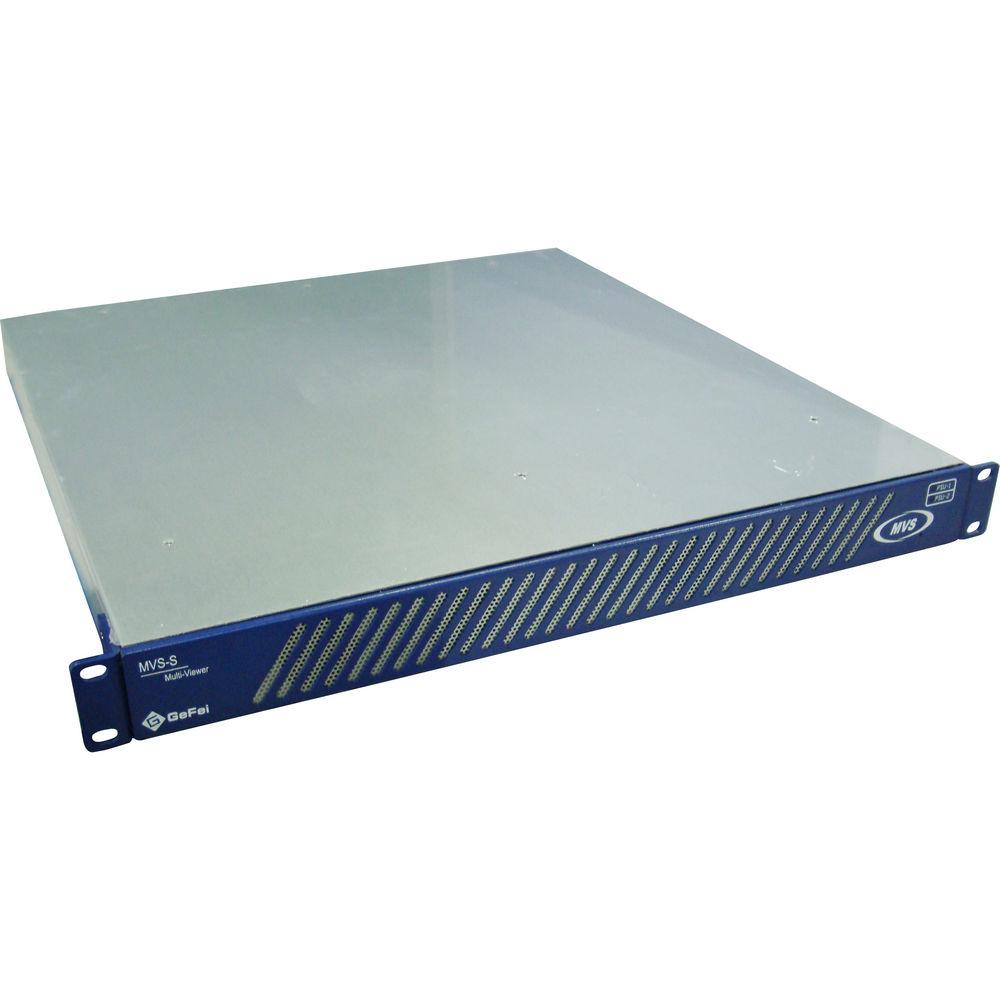

Product description The Gra-Vue VIO MVS-8HD 1U MULTIVIEWER is a 1RU standalone multi-viewer system. It supplies 8-channel HD/SD/CVBS and 1 DVI/HDMI/VGA auto adaptive inputs. It also supplies 1 DVI/HDMI (up to 1920x1080) with 1 duplicated HDSDI output. This multiviewer also features dual redundant power supplies, real time audio/video monitoring, dynamic UMD & tally, and a UV meter.
The built-in WEB server in this multiviewer provides an easy control and supports SMNP and TSL protocols. This multiviewer is a suitable display solution for broadcast and pro AV applications. - Displays up to 9 video channels
- Supports HD/SD-SDI signal with embedded audio, 525i,625i, 720P, 1080i, 1080P auto adapting
- Supports composite video with analog audio, PAL and NTSC auto adapting
- Up to 1920 x 1080 P60 output resolutions
- Flexible output options：4:3, 16:9, customized aspect ratio, supports 4:3 or 16:9 safe maker
- Selectable air timer and countdown timers, analog and digital clock styles
- Enlarge any channel to full screen
- Programmable multi-color static UMD
- Supports format display of input signal, AFD information, UV meter
- Alarm for frozen or black video, video losing, and audio silence or losing
- Built-in Web server via RJ45
- SNMP, TSL, GPS serial timing
- Standard 1U frame with dual redundant power supplies
- Professional DSP accelerated image processing
In the Box Gra-Vue VIO MVS-8HD 1U Multiviewer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO MVS-8HD 1U Multiviewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

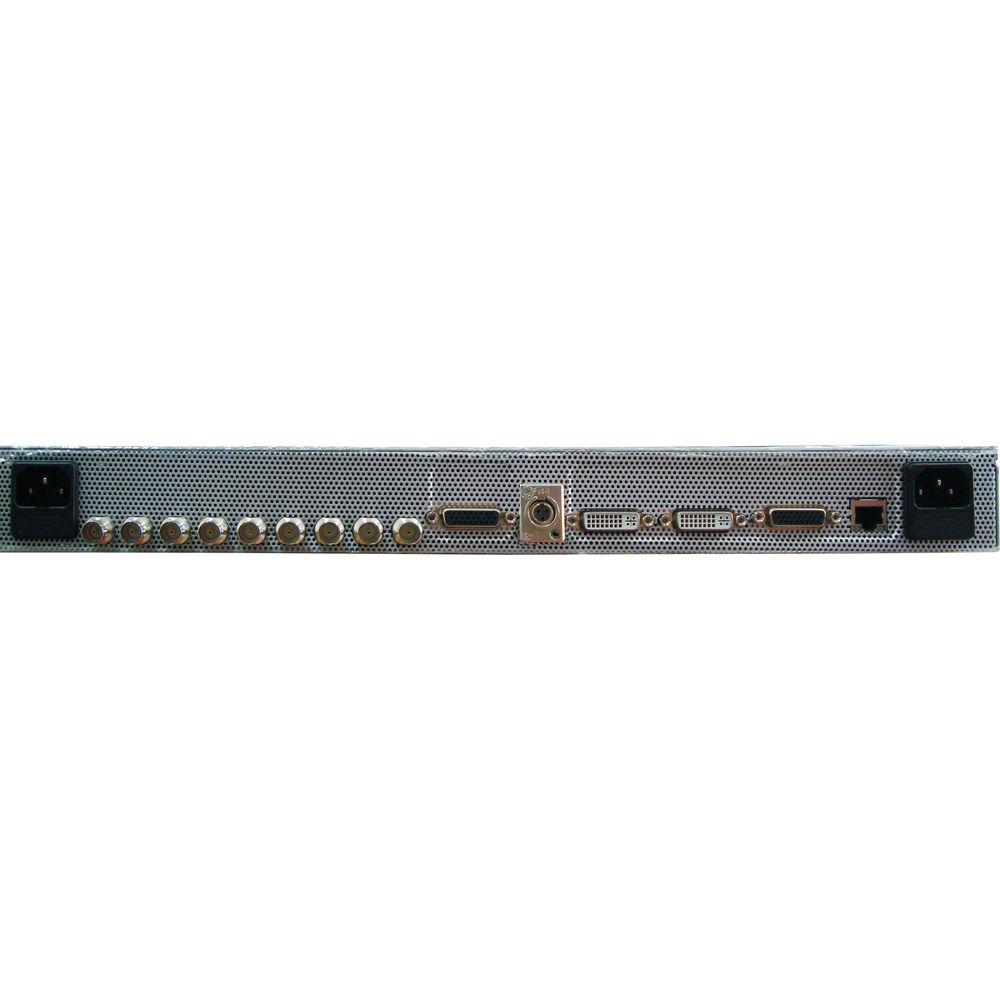

Technical parametersGra-Vue VIO MVS-8HD Specs | Video Input | 8 x BNC (HD (3G) / SD / CVBS) + DVI-I x 1 (DVI / HDMI / VGA) | | Input Format | SD: 480i, 576i HD: 720p, 1080i, 1080p CVBS: PAL & NTSC | | Video Output | 1 x DVI-I (female, supports HDMI protocol), 1 x BNC (HDSDI) | | Output Format | DVI: 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1080 SDI: 720p, 1080i, 1080p | | Analog Audio I/O | DB26 x 1, 8-channel balance audio in, 1 stereo audio out | | Control | RJ 45 Ethernet for built-in in Web server, TSL SMNP protocol DB26 - RS-232 / GPI LTC, XLR, EBU code | | Power | Dual 120 W, 110 to 250 VAC, 2.5 A | | Dimensions | 17.24 x 14.48 x 1.73" (438.00 x 368.00 x 44.00 mm) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 23.25 x 22.5 x 6.15" |
