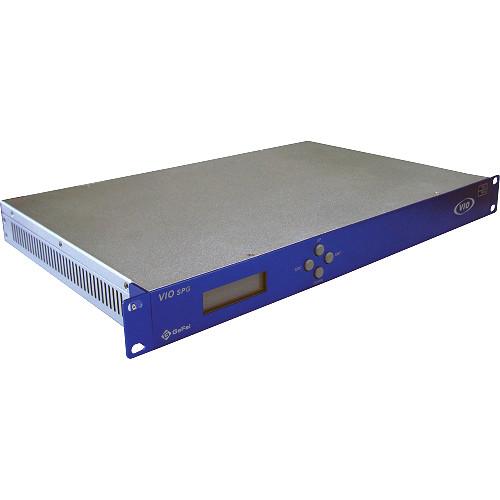

User Manual for Gra-Vue VIO SPG Black Burst and Test Signal Generator Click to enlarge the picture
Contents of the user manual for the Gra-Vue VIO SPG Black Burst and
- Product category: Video & Audio Processing Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Video & Audio Processing
|
User manual for the Gra-Vue VIO SPG Black Burst and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The VIO SPG Black Burst and Test Signal Generator from Gra-Vue provides a 10-channel standard analog BB signal output, as well as AES and analog test audio output. It also supports external signal locking. The VIO SPG is suitable use in TV stations and other broadcasting applications. - Provides 10-channel analog BB signal output
- Provides 2-channel analog/HD/SD-SDI video test signal output (total 10 standard signals)
- Provides analog/AES standard test audio output with different interfaces; volume and frequency can be set
- Supports external phase lock of BB and test signal output, H Phase can be set
- Inner WebServer; audio signal can be set with the net interface
In the Box Gra-Vue VIO SPG Black Burst and Test Signal Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO SPG Black Burst and Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO SPG Specs | | | Input Interface | 1 x PAL/NTSC/tri-level, BNC | | Level | 1Vp-p | | Impedance | 75 Ω | | | | Output Interface | 10 x BB, BNC
2 x SDI, BNC (Reserved)
2 x CVBS, BNC (Reserved)
2 x AES, XLR and BNC (Reserved)
2 x Analog Audio, XLR and RCA (Reserved) | | Control | Interface: 10/100/1000M Ethernet, RJ45 (Reserved), RS232, DB9 female (Reserved) | | | | Operating Temperature | 32 to 149°F (0 to 65°C) | | Storage Temperature | -4 to 158°F (-20 to +70°C) | | Power | 2 x 200 W redundancy | | | | Dimensions | 1.73 x 17.3 x 14.5" (44 x 440 x 370 mm) | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 23.1 x 19.3 x 6.5" |
