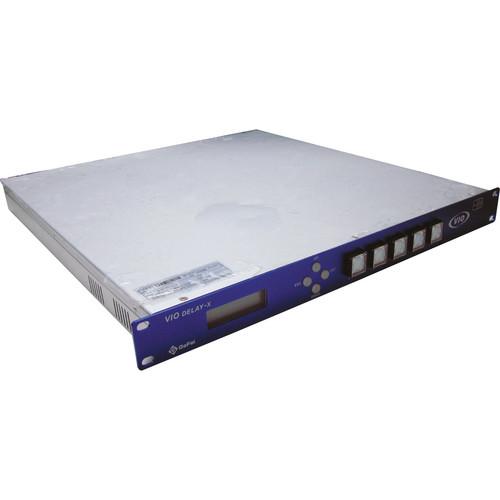

Product description The VIO SUPER-DELAY-HD60S-B SDI Video Delay from Gra-Vue allows you to delay an SD or HD-SDI video signal for up to 60 seconds. It features two inputs, a primary input and an auxiliary input that you can switch to when the program feed is corrupted. The output is split into three "timelines", with each timeline going out over a dedicated connector. One timeline shows the video before it is delayed, one shows the video as it is being delayed, and the third shows the video after it is delayed. In this way, a problem spot can be identified and the aux feed can be engaged in time. A countdown timer displayed on the front-panel LCD indicates time elapsed since the problem was encountered.
The unit can also embed or de-embed up to four channels of AES or balanced analog audio. In addition there are two monitor outputs so that all of the SDI-embedded audio can be locally monitored even if the SDI monitor being used doesn't have an audio output.
- Delays SD or HD-SDI video for up to 60 seconds
- Uses advanced FPGA and DSP processing technology
- Supports H/V phase adjustment
- Outputs three kind of monitor signals at the same time: before delay, being delayed, and after delay

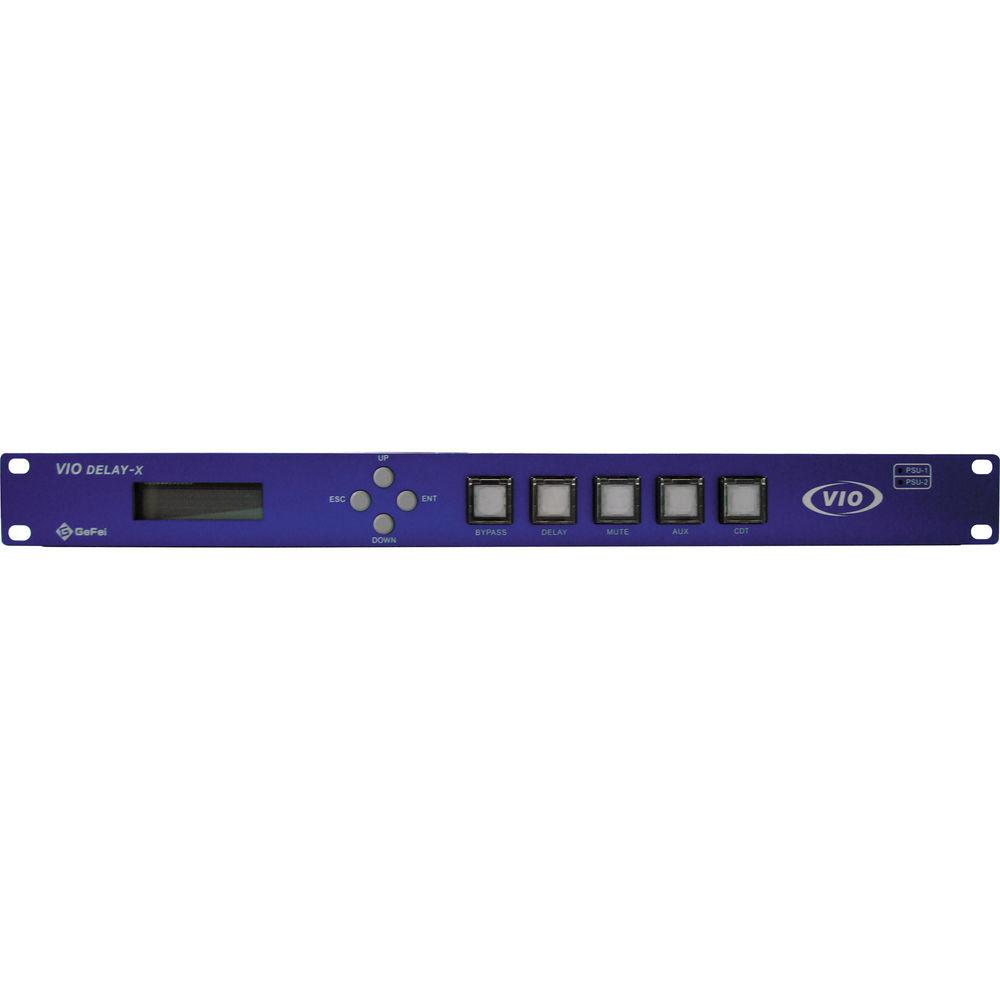

- Front panel LCD supplies down time counter display which starts the moment an abnormal signal is marked
- Automatic program loop-out when the unit is powered off
- One PCP can control two host devices in a master-slave operational configuration
- 1RU rackmount chassis structure with hot-swappable redundant power supplies
- Built-in Webserver: user can edit clips or configure device using the WEB UI
- SD-SDI reference input for syncing signals to common house clock
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO SUPER-DELAY-HD60S-B SDI Video Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

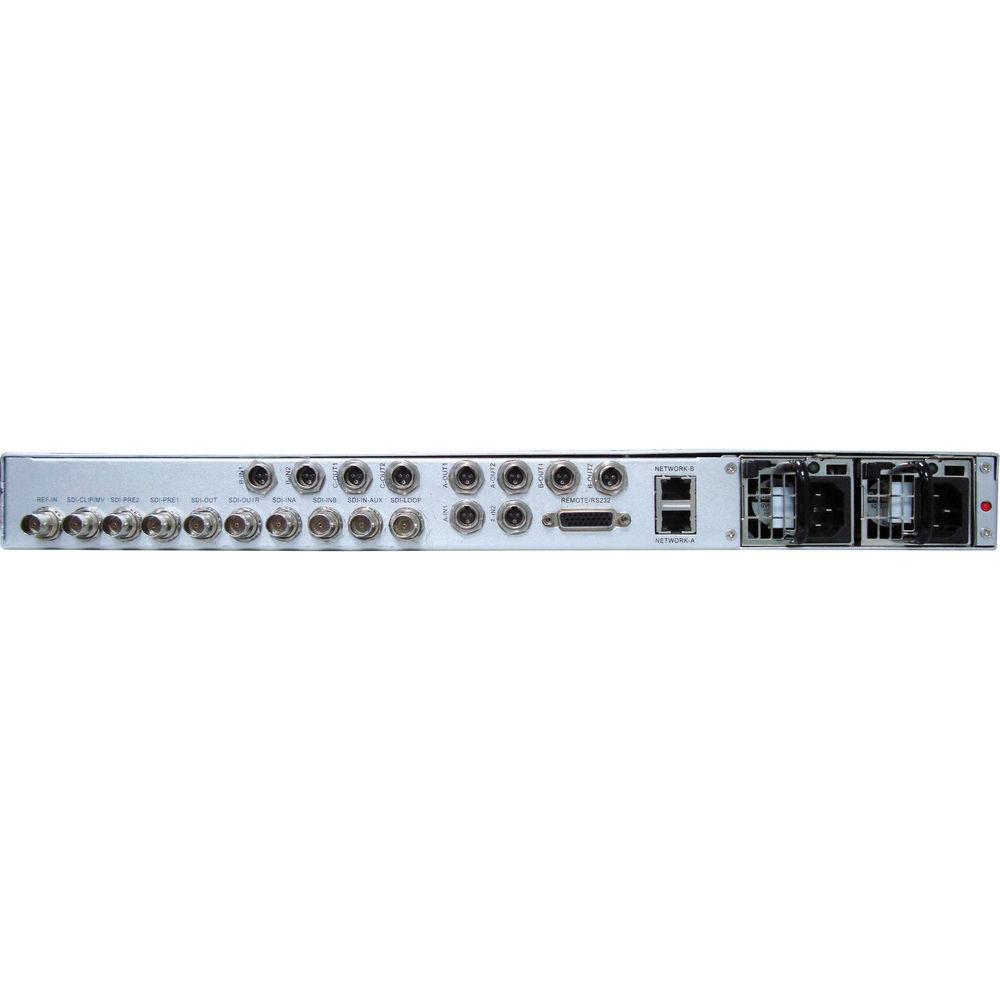

Technical parametersGra-Vue VIO SUPER-DELAY-HD60S-B Specs | SDI Input | Connectors: 2 x SD/HD-SDI on BNC
Impedance: 75 ohm
Standards: SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s)
Supported Resolutions: 625i50, 525i59.94; 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60
Maximum Amplitude: > 450 mV Maximum Cable Length: 656.2' (200 m) at SD resolution; 328.1' (100 m) at HD resolution -- requires Beldan 1694A cable | | Reference Input | Connector: 1 x SD-SDI on BNC
Type: PAL, NTSC, or Tri-Level | | SDI Output | Connectors: 6 x SD/HD-SDI on BNC
Standards: SMPTE 259M-C (270 Mb/s), SMPTE 292M (1.485 Gb/s)
Supported Resolutions: 625i50, 525i59.94; 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60 | | Audio Input | Connectors: 4 x AES or analog on mini XLR
Impedance: 600 ohm (analog); 110 ohm (AES) | | Audio Out | Connectors: 6 x AES or analog on mini XLR -- 2 x used for monitoring
Impedance: 600 ohm (analog); 110 ohm (AES) | | Power Supply | 2 x 275 redundant PSU | | Dimensions | 17.3 x 15.7 x 1.7" (440 x 400 x 44 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 27.56 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
