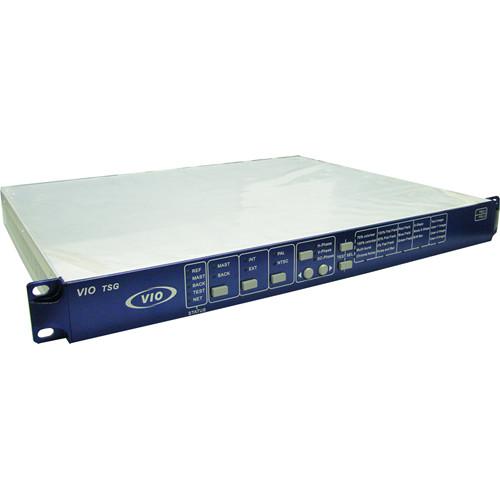

Product description The Gra-Vue VIO TSG-AS Analog Sync Signal Generator is a good performance and reliable signal generator designed for broadcasting. It supports twelve output interfaces, an independent host and slave, and 2 loop out interfaces. It comes with an external phase lock, H / V adjustment, and P / N system selection.
With the internal Web Server, you can control various video / audio signal settings through a network interface and upload 3 static images as needed. It runs on dual-redundant power and a full modularization structure. - Supports external phase lock, H / V adjustment, and P / N system selection of BB output
- Internal Web Servers: You can control various A / V signal functions over a network
- 12 output channels of independent signal output
- Dual-redundant power and full modularization structure
In the Box Gra-Vue VIO TSG-AS Analog Sync Signal Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO TSG-AS Analog Sync Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO TSG-AS Specs | | | Sync Input | 1x REF | | Input Connector | BNC | | Amplitude | ±6 dB 0.5, 2 Vpp | | Phase | SCH: ±40° | | SNR | 40 dB | | Return Loss | 40 dB (within 5 MHz) | | | | Output | 12x BB, 1x Loop | | Input Connector | BNC | | Format | NTSC / PAL | | Return Loss | 30 dB (within 5 MHz) | | Precision | Color Burst: ±5%
Sync: ±3% | | Blanking Period | ±50 mV | | Phase | SCH: ±5° | | Adjustments | Timing Adjustment: Full color frame | | Control Modes | Interface: RJ4510 / 100 / 1000M Ethernet | | Power | 2 x 120 W, 100 to 256 VAC, & 50 to 60 Hz | | Dimensions | 17.32 x 19.01 x 1.77" (440.00 × 483.00 × 45.00 mm) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
