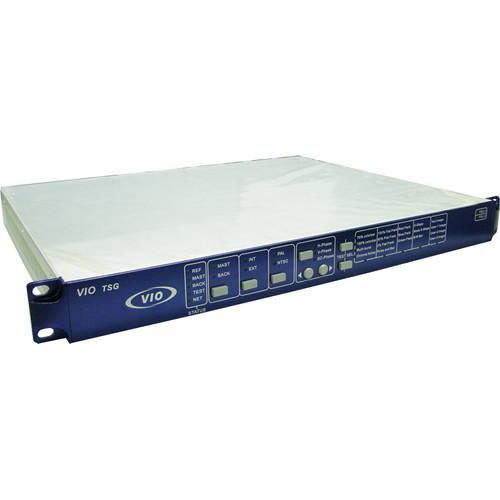

Product description The Gra-Vue VIO TSG-BS Dual Auto Switchable Analog Sync Signal Generator supplies a slave black burst generator module to recognize the changeover between the host and the slave. It supports 12 outputs, an independent host and slave, and 2 loop out interfaces. Users can control it manually or automatically.The Dual Auto Switchable Analog Sync Signal Generator comes with features such as an external phase lock, H / V adjustment, and P / N system selection. With the internal Web server, you can control various video / audio signal settings through a network interface and upload 3 static images as needed. It runs on dual-redundant power and a full modularization structure. - Change over between host black burst generator and slave
- Supports external phase lock, H / V adjustment, and P / N system selection of BB output
- Internal Web Servers: You can control various A/V signal functions over a network
- 12 output channels of independent black burst output
- Dual-redundant power and full modularization structure
In the Box Gra-Vue VIO TSG-BS Dual Auto Switchable Analog Sync Signal Generator Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VIO TSG-BS Dual Auto Switchable Analog Sync Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue VIO TSG-BS Specs | | | Sync Input | 2x REF | | Input Connector | BNC | | Amplitude | ±40° | | SNR | 40 dB | | Return Loss | 40 dB (within 5 MHz) | | | | Output | BB: 12x BB, 1x Loop | | Input Connector | BNC | | Format | NTSC / PAL | | Return Loss | 30 dB (within 5 MHz) | | Precision | Color Burst: ±5%
Sync: ±3% | | Level | Blanking: ±50 mV | | Phase | SCH: ±5° | | Adjustments | Time: Full color frame | | | | Interface | RJ4510 / 100 / 1000M Ethernet | | Power | 2x 120 W, 100 to 256 VAC, & 50 to 60 Hz | | Dimensions | 17.32 x 19.01 x 1.77" (440.00 × 483.00 × 45.00 mm) | | | | Package Weight | 17.64 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
