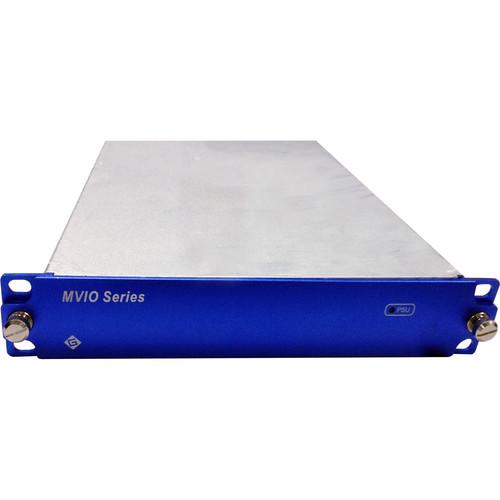

Product description The MVIO VSD-HD-DC from Gra-Vue is a standalone 1U half-rack HD-SDI video down-converter that converts one HD-SDI signal to two identical SD-SDI signals with frame sync processing. It supports AFD and manual ratio adjustment (bar/stretch/crop), and features advanced de-interlacing technology to generate high-quality HD-SDI signals. The MVIO VSD-HD-DC supports and automatic detection of input format. Additionally, the unit provides a HD/SD-SDI loop through for passing the source signal to an additional device. It also has a built-in web server that supports SNMP, letting you mange and monitor your signals in real-time on your computer via an Ethernet connection. -
- Automatic signal equalization
- Individual Ref interface and frame sync processing
- Supports 625i50, 525i60, 720p, 1080i, 1080p
- Automatic detection of input format
- AFD and manual adjustment (bar/stretch/crop)
- H-phase and V-phase adjustable
- Built-in web server support SNMP
Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue VSD-HD-DC Half-Rack HD-SDI Video Down-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue MVIO DC Specs | | | Video Input | 2 x HD/SD-SDI (BNC, 75 ohm) | | Standard | SIMPTE 259M-C
SMPTE 292M
SMPTE 344M
SMPTE 425 | | Format | 625i
576i
720p
1080i
1080p | | | | Video Output | 1 x HD/SD-SDI loop-though (BNC, 75 ohm)
2 x SD-SDI (BNc, 75 ohm) | | Format | 625i
576i | | Level | 800 mV ± 5% | | Jitter | < 0.2 UI (100 KHz) | | | | Power | 110 to 240 VAC, 50/60 Hz, 60 W | | Operating Temperature | 41 to 77°F (5 to 25°C) | | Dimensions | 8.6 x 17.0 x 1.9" (21.9 x 43.2 x 4.8 cm) |
