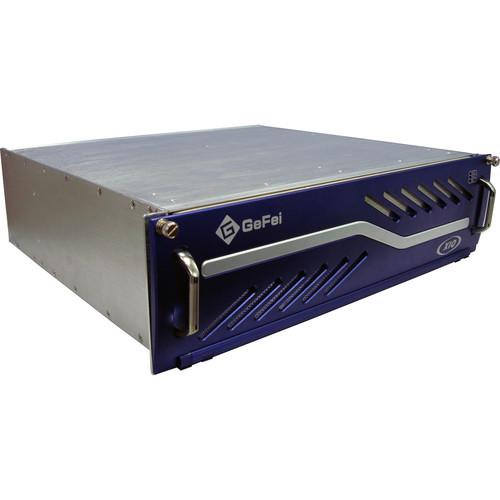

User Manual for Gra-Vue XIO-3U Modular Platform Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO-3U Modular Platform
- Product category: Multiviewer Accessories Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Multiviewer Accessories
|
User manual for the Gra-Vue XIO-3U Modular Platform contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO-3U Modular Platform offers high-density delivery of HD and SD modular solution. The 3U rack unit supports up to 16 modules. Single and dual PSU versions are also available (sold separately). It provides a built-in Xio-BUS. This Modular Platform can be managed by centralized monitoring and management software system. It also can be monitored and controlled though standard and full SNMP (Simple Network Management Protocol) and Ethernet. - Up to 16 signal or 8 double width modules for 1U module platform
- Support all formats of input module such as HD-SDI, SD-SDI, ASI, analog video signal, and analog audio signal
- Support RS232 / RS422 control
- Provide dual PSU versions
- Managed by centralized monitoring and management software system
- Support standard and full SNMP (Simple Network Management Protocol) and Ethernet
In the Box Gra-Vue XIO-3U Modular Platform Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO-3U Modular Platform in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 3UF Specs | Inputs/Outputs/Controls | RS422 / 485 / 232: 9-pin D-type
TCP / IP: 10 / 100 / 1000M auto-adapting | | Power Input | 100 to 250 V, 50 / 60 Hz, 2.5 A | | Power Consumption | Maximum: 120 W, 1U | | Operation Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -22 to 167°F (-30 to 75°C) | | Dimensions (L x W) | 13.38 x 3.93" (340.00 x 100.00 mm) | | | | Package Weight | 28.66 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 8.0" |
