User Manual for Gra-Vue XIO 9000VDA 1 x 7 Composite Video Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9000VDA 1 x 7
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue XIO 9000VDA 1 x 7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|

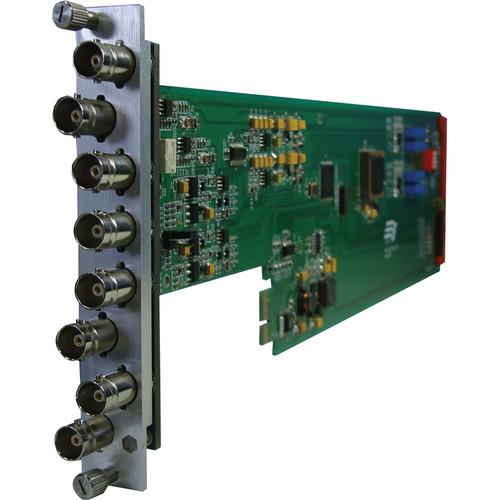

Product description The Gra-Vue XIO 9000VDA 1 x 7 Composite Video Distribution Amplifier is a modular distribution amplifier card designed to be used in a XIO 1U or 3U Modular Platform Chassis (sold separately). It distributes one analog composite video signal to seven outputs. The unit supports automatic input detection of NTSC and PAL, and the gain of the output signals can be adjusted via DIP switch. The distribution amplifier provides automatic signal equalization for long cable applications (up to 656' over Belden 1694A). This improves the signal quality and reduces signal loss generally caused due to long distance transmission of the input source. The LED lights on the module indicate the status of input signal and power supply to let you know the signal and power status immediately. The distribution amplifier also supports SNMP, and can be real-time managed and monitored by the XIO NET Network Management Module (sold separately) via Ethernet. - One analog composite video signal input, seven analog composite video signal outputs
- Supports automatic detection of NTSC and PAL standards at input
- Supports hot swapping / hot plugging
- Allows adjustment of the gain of output signal via a DIP switch
- Provides automatic signal equalization for long cable applications (up to 656' (200m) over Belden 1694A)
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9000VDA 1 x 7 Composite Video Distribution Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9000VDA 1 x 7 Composite Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9000VDA Specs | | | Input Interface | 1 x CVBS, BNC | | Impedance | 75 Ω | | Format | SMPTE 259M-C 270 Mb/s; 525i60, 625i50 | | Maximum Length | ≤656' (200 m) over Belden 8281 | | | | Output Interface | 7 x CVBS, BNC | | Format | 525i60, 625i50; SMPTE 259M-C 270 Mb/s | | Impedance | 75 Ω | | Signal Level | 1 Vpp | | White Level | 0.7 V | | H-sync Level | -0.3 V | | | | Status Indicators | Signal and power (status indicated by shining or extinguishing of the green LED) | | | | Power Consumption | 2 to 3 W | | Dimensions | 14.4 x 3.9 x 0.03" (36.5 x 10.0 x 0.1 cm) PCB only
14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | Approximately 6.5 oz (185.0 g) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 18.0 x 9.0 x 4.0" |
