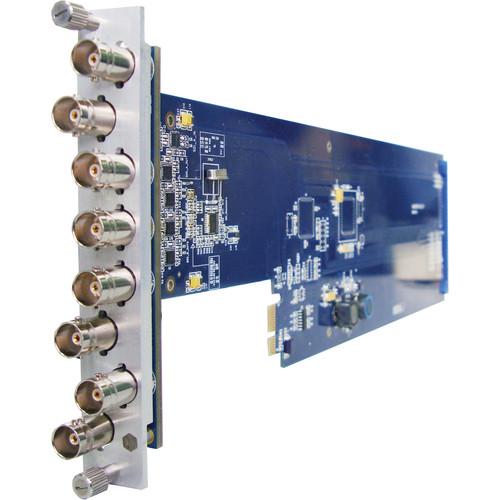

User Manual for Gra-Vue XIO 9000VSD-HD 1 x 7 HD SD-SDI ASI Signal Distribution Amplifier Card with Re-clocking Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9000VSD-HD 1 x 7
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue XIO 9000VSD-HD 1 x 7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The Gra-Vue XIO 9000VSD-HD 1 x 7 HD/SD-SDI/ASI Signal Distribution Amplifier distributes 1 HD/SD-SDI signal to 7 outputs with re-clocking. It is used as a modular component in the XIO 3RU Modular Platform Chassis (sold separately). This amplifier card supports HD/SD-SDI input signals with embedded audio and automatic input detection of 525i 60, 625i 50, 720p, 1080i, 1080p, and 1080psf formats. It also supports processing and distribution of ASI signals.
The XIO 9000VSD-HD Distribution Amplifier Card provides automatic signal equalization and re-clocking when used with long cables. This improves the signal quality and reduces signal loss caused by long distance transmission of the input source. The LED lights on the module indicate the status of input signals and power supply. The distribution amplifier also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately) via Ethernet. This unit is mounted vertically in a 3 RU frame. - 1 HD/SD-SDI signal input & 7 HD/SD-SDI signal outputs with re-clocking
- Supports automatic input detection of 525i 60, 625i 50, 720p, 1080i, 1080p, and 1080psf formats
- Supports HD/SD-SDI signal with embedded audio
- Supports processing and distribution of ASI signals
- Supports hot swapping / hot plugging
- Broadcast quality with inner 10-bit processing
- Automatic signal equalization and re-clocking when used with long cables
- Features LED lights to indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- Mounts vertically in a 3RU frame
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9000VSD-HD 1 x 7 HD/SD-SDI/ASI Signal Distribution Amplifier Card with Re-clocking (for 3RU Frame) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9000VSD-HD 1 x 7 HD SD-SDI ASI Signal Distribution Amplifier Card with Re-clocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9000VSD-HD-3U Specs | Connectors | 1 x BNC, SD/HD-SDI/ASI input
7 x BNC, SD/HD-SDI/ASI output | | Impedance | 75 Ω | | Video Resolution | 525i60, 625i50
720p60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
1080i 60 / 59.94 / 50
1080p 30 / 29.97 / 25 / 24 / 23.98
1080psf 30 / 29.97 / 25 / 24 / 23.98 | | Format | SMPTE 259M-C 270 Mb/s
SMPTE 292M 1.5 Gb/s | | Maximum Cable Length | SD-SDI: <656' (200 m), Belden 1694 A
HD-SDI: <328' (100 m), Belden 1694 A | | Level | 800 mV, ±5% | | Jitter | <0.2 UI, 100 kHz | | Status Indicator | 1 x LED, Signal
1 x LED, Power | | Power Consumption | 2 to 3 W | | Dimensions | 14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | 6.2 oz (177.0 g) |
