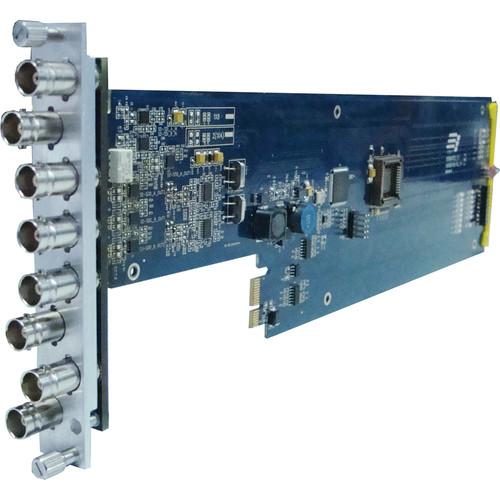

User Manual for Gra-Vue XIO 9000VSD-RC 1 x 7 SD-SDI ASI Signal Distribution Amplifier Card with Re-clocking Click to enlarge the picture
Contents of the user manual for the Gra-Vue XIO 9000VSD-RC 1 x 7
- Product category: Distribution Amplifiers (DA's) Gra-Vue
- Brand: Gra-Vue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gra-Vue Distribution Amplifiers (DA's)
|
User manual for the Gra-Vue XIO 9000VSD-RC 1 x 7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gra-Vue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gra-Vue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gra-Vue product will considerably shorten its lifespan!
|
Product description The 1RU XIO 9000VSD-RC 1 x 7 SD-SDI / ASI Signal Distribution Amplifier Card with Re-clocking from Gra-Vue distributes one SD-SDI signal to seven outputs with re-clocking. The card supports SD-SDI input signals with embedded audio and automatic input detection of 525i 60 and 625i 50. It can also process and distribute ASI signals.
The XIO 9000VSD-RC Distribution Amplifier Card provides automatic signal equalization and re-clocking when long cables are used. This improves the signal quality and reduces signal loss caused by long distance transmission of input sources. The amplifier card features LED lights indicating the input signal and power supply status. The card also supports SNMP and can be real-time managed and monitored via the XIO NET Network Management Module (sold separately) via Ethernet. This card is designed to mount horizontally in the 1RU XIO frame. - Distributes one SD-SDI signal input to seven SD-SDI signal outputs with re-clocking
- Automatic input detection of 625i 60 and 625i 50
- Supports SD-SDI signals with embedded audio
- Processes and distributes ASI signals
- Broadcast quality with inner 10-bit processing
- Provides automatic signal equalization and re-clocking when used with long cables
- LED lights indicate the status of signals and power supply
- Supports SNMP, and can be real-time managed and monitored by XIO NET (sold separately) via Ethernet
- For use in broadcasting systems, studios, and other professional fields
In the Box Gra-Vue XIO 9000VSD-RC 1 x 7 SD-SDI / ASI Signal Distribution Amplifier Card with Re-clocking (for 1RU Frame) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gra-Vue XIO 9000VSD-RC 1 x 7 SD-SDI ASI Signal Distribution Amplifier Card with Re-clocking in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGra-Vue XIO 9000VSD-RC-1U Specs | Connectors | 1 x BNC, SD-SDI/ASI input
7 x BNC, SD-SDI/ASI output | | Impedance | 75 Ω | | Maximum Cable Length | 656' (200 m), Belden 1694A | | Format | 525i 60, 625i 50
SMTPE 259M-C 270 Mb/s | | Level | 800 mV, ±5% | | Jitter | <0.2 UI, 100 kHz | | Return Loss | >15 dB, 270 MHz | | Status Indicator | 1 x LED, signal
1 x LED, power | | Power Consumption | 2 to 3 W | | Dimensions (L x W x H) | 14.4 x 3.9 x 0.4" (36.5 x 10.0 x 1.0 cm) including components' height | | Weight | 6.5 oz (185.0 g) approximate |
